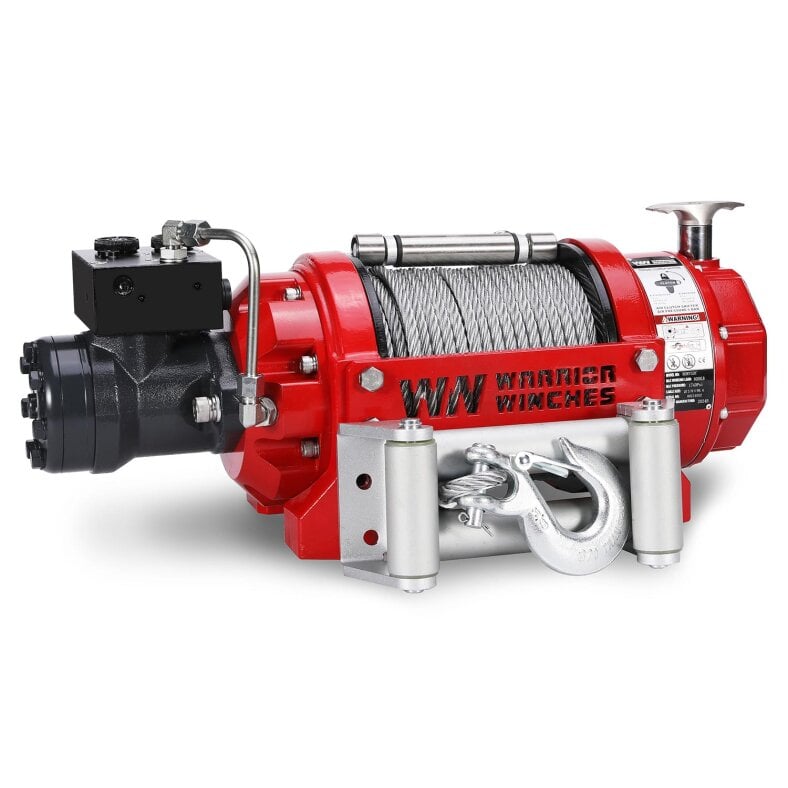

Hydraulics industrial winch short drum 3.6t en14492:1

Hydraulics industrial winch short drum 3.6t en14492:1

SKU: 80RVSDY
GTIN: 5060423982937
Category: Winches

1.390,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 13 - 15 Workdays (DE - int. shipments may differ)

piece

Warrior rv series 3.6t according to en 14492:1

The rv series hydraulic winches meet en 14992 and saej-706 standards. they are designed for harsh,
commercial and industrial applications and are available from 8000lbs to 18000lbs.
This is the 8000lb short drum version.

sPECIAL FEATURES:

en14492-1 / machinery directive 2006/42/eg
10:1 drum/rope diameter ratio
2:1 rope ratio
Hydraulic and mechanical full load holding brake
Rope attachment 2.5 times rated load

* Load limiter and/or emergency stop must be fitted during installation

Technical features:

Pulling force: 8.000lb (3.629 kg)
Gear ratio: 17.6:1
Engine: hydraulic
braking action: Auto hydraulic
Gear lever: Pulling and turning
Max. Flow: 5-60 L/min
Max. Pressure: 12 MPa

Dimensions and weight:

Dimensions (l x w x h): 558mm x 237mm x 241mm
Drum size: ø x L: 102mm x 169mm
Approx. weight: 47,6kg
Bolt circle:
- 222mm x 114.3mm
- 222mm x 165.1mm
- 8-M10

Pulling force, pulling speeds and oil flow:

Rope layer	Tractive force
	lbs / kg

1	8000 / 3629
2	6864 / 3113
3 4	6010 / 2726 5345 / 2424


Tractive force	Traction speed Oil flow		Pressure Mpa
lbs / kg	m / min	L / min

0	11,5	5	2,0
4000 / 1814	7,3	20	5,0
6000 / 2722	3,3	40	8,0
8000 / 3629	1,0	60	12,0

Scope of delivery:

Hydraulic winch: Warrior 80rvSDY
Rope: 30m length ø9.2mm galvanized steel cable with clevis hooks
Rope window: 4-way heavy duty rope window with stainless steel sheaves
Balancing valve
Rope pressure roller

IMPORTANT:
We expressly point out that this winch is only a pulling winch for pulling loads in the horizontal plane
horizontal plane. This winch must not be used for lifting loads or persons.
use outside the described areas will void any warranty!

Line Pull:	3,1 - 4 t
Cable/Rope Length:	26 - 30 m
Cable/Rope Type:	Steel Cable
Price:	1000 - 1999 EUR
Brand:	Warrior®
Application:	Professional Towing
Vehicle Type:	Car Truck Others
Drive Type:	hydraulic
Special Features:	weatherproof
Shipping weight:	50,00 kg
Item weight:	47,60 kg
Dimensions ( Length × Width × Height ):	55,80 × 23,70 × 24,10 cm
