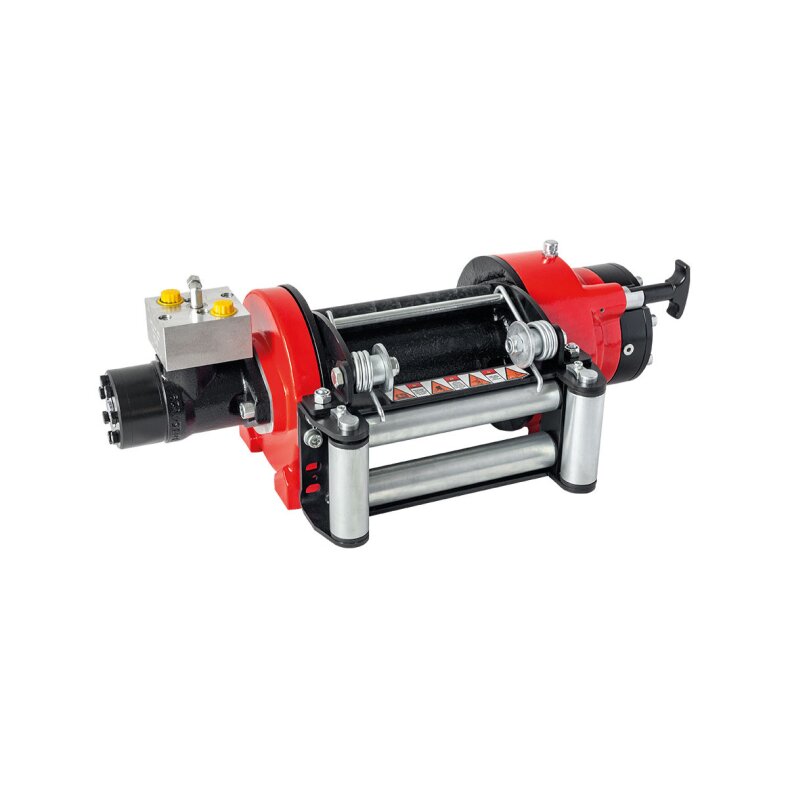

Hydraulic winch hmw 4.3 pht-en
A cast aluminum body extra reinforced by heat treatment, light and strong design, high rope capacity
negative acting hydraulic brake reinforced by multiple pulleys, holding the load 100%, cast iron pulley with long service life and high torque hydraulic motor
Maximum tensile strength (kg / lbs) : 4300 kg (9477 lbs)
Maximum rope length en 14492-1 (m / ft) : 40 m (131 ft)
Maximum rope diameter (mm / in) : 10 mm (3/8") 2160 MPa
Hydraulic motor (cm³ / in³) : 315 cm³ (18.9 in³)
Maximum actuation pressure (bar / psi) : 150 bar (2175 psi)
Maximum pump capacity (lt / min - gal / min) : 60 l (15.8 gal)
Transmission ratio : 5,6 : 1
Recommended oil : 85w 140-0.75 l.
Product weight:
Rope drum : (kg / Ibs ) : 44 kg (96 Ibs)
Front roller : ( kg / lbs ) : 6 kg (13.22 lbs)
Pressure roller : ( kg / lbs ) : 2.5 kg (5.51 lbs)
Rope layer |
Pulling force kg/lbs |
Pulling speed |
Rope length m/ft |
1 |
4300/9477 |
11/36 |
8/26 |
2 |
3700/8140 |
13/42 |
17/55 |
3 |
3210/7062 |
16/52,48 |
28/91 |
4 (en) |
2830/6226 |
18/59 |
40/191 |
5 |
2530/5566 |
20/65 |
55/180 |
6 |
2290/5033 |
22/72 |
70/229 |
Technical characteristics:
- According to en 14492-1
- Manual freewheel
- Rope drum width 244 mm
- Rope speed 11,00 - 22 m/min
- Pulling force [t]: 4,3
- Operating pressure [bar]: 150
- Oil flow [l/min]: 60
- Weight [kg]: 52,5
Dimensions:a [mm]: 244
b [mm]: 330.4
c [mm]: 688
d [mm]: 331
e [mm]: 235.4
f [mm]: 308.4
g [mm]: 111.2
h [mm]: 163.2
i [mm]: 100
Scope of delivery:
- Cable winch
- Rope pulley window
- Rope pressure roller
- Load holding valve
