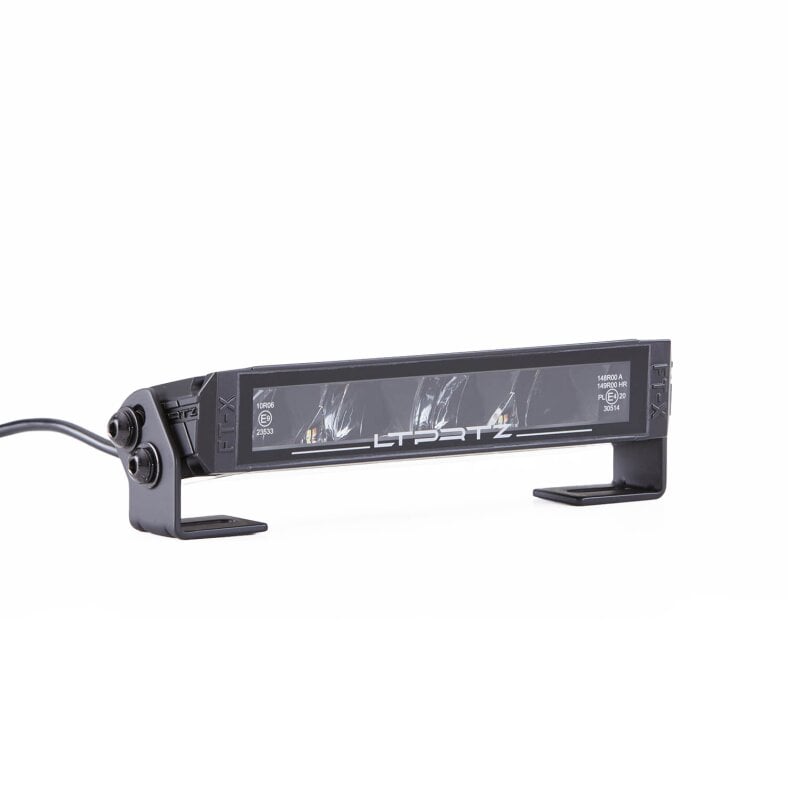

Flat-X High-End 30°
9" spotlight Lightbar
- Beveled lens for better visibility - no dust and snow
- No screws on the front
- Slim design with a housing height of only 3.85 cm
Special features:
- Full road approval
- Highest waterproof rating: IP69K
- Highest quality materials
- Extremely small shoring size
- Operating temperature: -30° C - +80° C
- Reference number: 20
- Range: 300m (1 Lux)
Scope of delivery:
- 1x Lightbar Flat-X 9"
- 1x mounting kit lateral (left and right)
- 2x sliding mounting bracket rear
Technical data:
- Operating voltage: 12/24v
- Power: 12v: 31w | 24v: 30W
- Power consumption: 12v: 2,35a | 24v: 1,67A
- Luminous intensity: 83,600 cd
- Lumen (Raw/Effective): 3360/2400 lm
- Housing: extruded aluminum
- Lens: Shatterproof polycarbonate Sabic Lexan LS2-111
uvhc-3000 coating
- Reflector: Polycarbonate with aluminum coating
- Bracket: Stainless steel
- Protection class: IP69K
- Connection: dt04-4p 4-pole
- Homologation: ece r10 | r112.01 class B
- Reference number: 20
- LEDs: 4 pieces OSRAM
- Light color: 5000K
- Dimensions: 224x67,2x38,5mm
- Weight: 0,7KG
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
