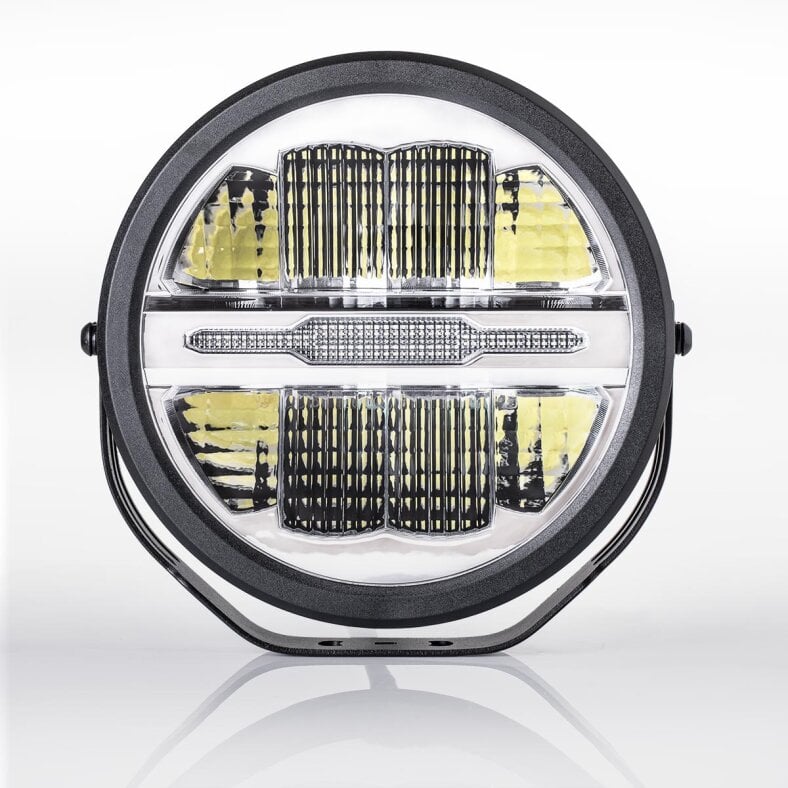

9 Inch UltraLux High Beam Headlight
Technical Information:
- Beam Angle: Horizontal: ±10° | Vertical: ±3.5°
- Voltage Range: 9-36V
- Current Draw A @13.2V or 12V:
- High Beam (offroad) Full Power: 5.21A @12V
- High Beam ECE R112 Ref. 30: 2.95A @12V
- Power Consumption @13.2V or 12V
- High Beam (offroad) Full Power: 62.16W |
- High Beam ECE R112 Ref. 30: 35.40W
- LED Count and Type (High Beam): Osram: P9*8pcs
- Lumen @13.2V or 12V:
- Full Power: 2710LM
- R112 Ref. 30 Power: 2170LM
- Color Temperature: 5500-6500K
- 1 Lux Range (real) @13.2V or 12V:
- Full Power: 434m |
- R112 Ref. 30 Power: 374m
- Candela @13.2V or 12V:
- Full Power: 188000 |
- R112 Ref. 30 Power: 140000
- Cable Length: 40cm
- Connector Type: DT 4-Pin Connector
- Dimensions: 229*229*89mm
Homologation:
-
ECE R112 (Ref. 30)
-
R10 EMC
-
R7: Position Light White
Wiring Diagram:
