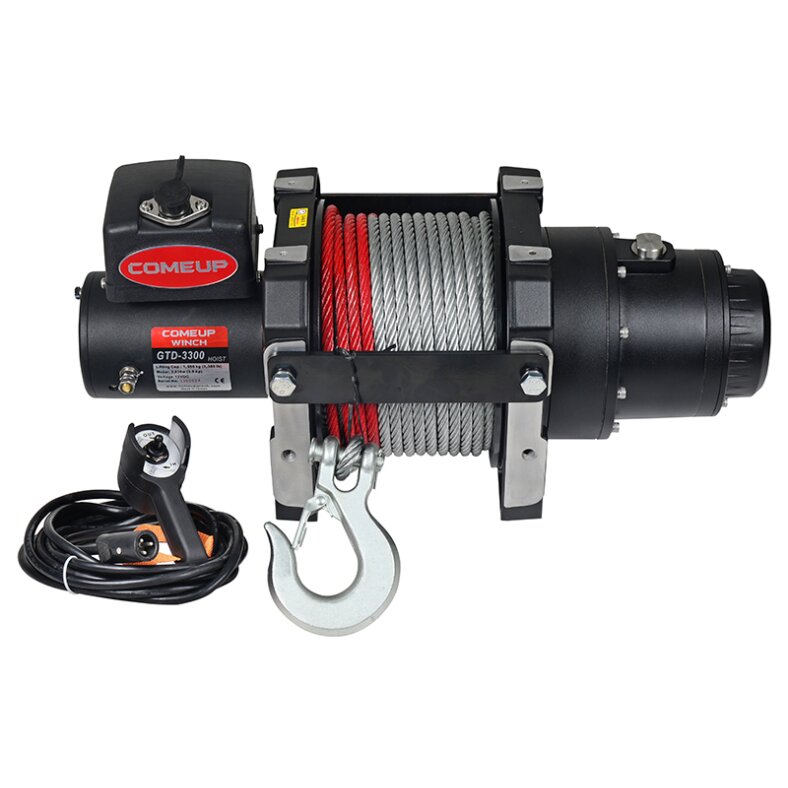

Specifications/part numbers
-
Rated stroke: 1270 kg / 2800 lb
-
Lifting speed (1st rope layer):
24v : 6.0 mpm / 19.7 fpm 22a without load
4.4 mpm / 14.4 fpm 100a at full load
-
Motor: 1940 w / 2.6 ps 24v permanent magnet
-
Transmission: 3-stage planetary gear 261:1
-
Brake: Mechanical spring applied and permanent motor dynamic brakes together
-
Hoist construction: Aluminum die case and drum
-
drum size: 135 x 114.6 mm
-
Control: Remote control with 5 m (17') cable
-
Rope type: Galvanized a7 x 19
-
Rope size: 7.9 mm x 28 m
-
Pitch circle of mounting screws: 114.3 x 171 mm and 165.1 x 171 mm
-
Hoist weight (incl. rope): 48.1 kg
-
Gross weight: 54.8 kg
-
Packaging dimension, (l x d x H): 620 x 360 x 260 mm
-
Standard conformity:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2004/108/EC
- ansi B30.5
Accessories:
- Steel cable 7,9 mm x 28 m with hooks
- relocatable control unit
- Cable control: 5 m cable length
Lifting speed and power consumption
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
Line Lift,
kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
Percentage Duty Cycle,
Min / 10 min |
| 12V |
24v |
12 V |
24 V |
| No load |
4,6 / 15,1 |
6,0 / 19.7 |
25 |
22 |
Cont. |
227 / 500 |
4,2 / 13,8 |
5.7 / 18.7 |
40 |
30 |
7,0 |
454 / 1000 |
3,9 / 12,8 |
5,5 / 18.0 |
65 |
45 |
4,5 |
907 / 2000 |
3,3 / 10,8 |
4,6 / 15,1 |
100 |
80 |
2,5 |
1270 / 2800 |
3,0 / 9,8 |
4,4 / 14,4 |
140 |
100 |
2.0 |
Line Lift and Rope Capacity:
Layer of wire Rope |
Lift by Layer, kg / lb |
Line Speed, mpm / fpm |
total Rope on the Drum, m / ft |
1st
|
1270 / 2800 |
4,4 / 14.4 |
6,3 / 20,7 |
2nd
|
1144 / 2522 |
4,9 / 16,1 |
13,4 / 43,6 |
3rd
|
1040 / 2292 |
5,4 / 17,7 |
21 / 68,6 |
4th
|
954 / 2103 |
5,8 / 19,0 |
28 / 92 |
Protection classes:
Motor: IP66
Relay and contacts: IP68
Control box: IP44
NOTe:
1. All data is based on the 1st layer of rope. With each layer unwound, the lifting force increases by 10%
2. Use a pulley for double pull to increase lifting capacity by approx. 85
3. Lifting capacities are based on one lifting load. 15% is allowed for friction (specific applications may vary)
4. The steel cable is not covered under warranty.
warning
Winches are not designed for lifting or moving people.
The specified lifting capacity is based on the first layer of rope on the drum.
When uncoiling the rope, 5 wraps should always remain on the drum.
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Lifting speed: |
1 - 15 m / min |
| Application: |
Private |
| Max. Lifting height: |
21 - 30 m |
| Radio remote control including: |
No |
| Lifting force (without deflection): |
above 1000 kg |
| Voltage: |
12 V |
| Shipping weight: |
67,00 kg
|
| Item weight: |
65,00 kg
|
| Dimensions
( Length × Width × Height ):
|
60,00 × 27,80 × 22,90 cm |
