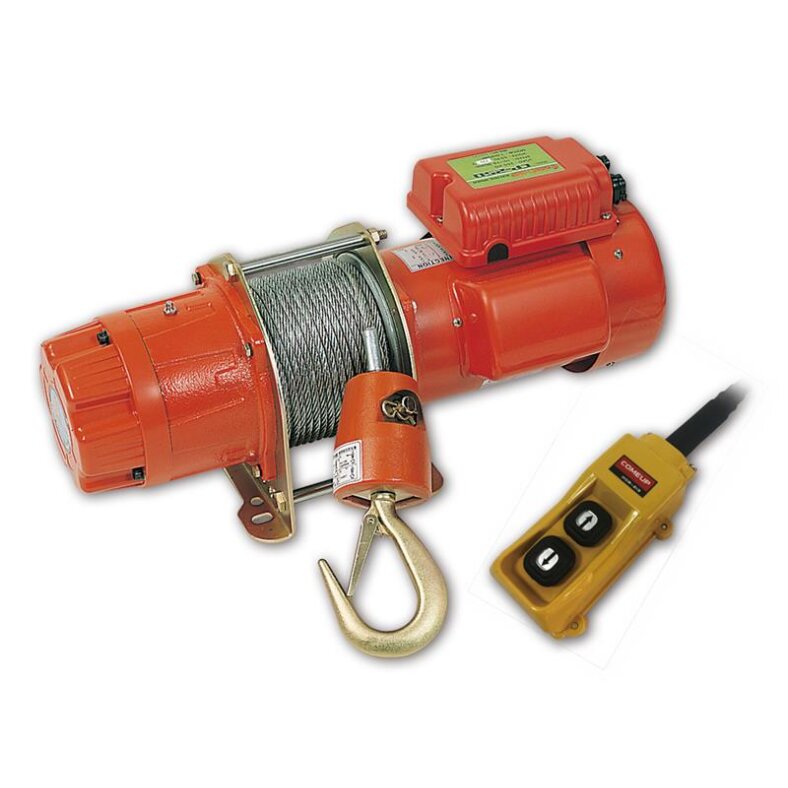

Specifications/Part Numbers
- Lifting capacity: 250 kg in first steel rope layer
- Lifting speed: 10 - 15 m/min
- Motor protection class IP44: 1-phase, 220-240v: 0.75 kw x 4-pole induction brake motor
- Gear ratio: 43:1
- Maximum lifting height: 29 m
- Braking method: Electromagnetic
- Steel cable: 6 mm x 30 m
- Drum length: 110 mm
- Drum diameter: 94 mm
- Drum flange diameter: 154 mm
- Mounting hole circle: 142 mm x 142 mm
- Net weight, kg (standard version): 34 kg
- Gross weight: 36.5 kg
- Housing dimensions (l x d x H): 548 x 210 x 241 mm
- Packaging dimensions (l x d x H): 630 x 286 x 285 mm
Accessories:
- Steel cable 6 mm x 30 m
- Safety hook, chw-0031
- Power cable 1.5 mm² x 3c x 3 mm and industrial plug
- Cable control with emergency stop switch
the performance data is based on a 50Hz supply.
Lifting force, speed and rope capacity
Rope layer
|
|
Lifting capacity
|
Pulling speed
|
Total rope on the drum
|
| |
|
kg |
m / min |
m |
| |
|
|
|
|
| 1 |
|
370 |
10,0 |
5,4 |
| 2 |
|
330 |
11,3 |
11,5 |
| 3 |
|
298 |
12,5 |
18,3 |
| 4 |
|
272 |
13,8 |
25,7 |
| 5 |
|
250 |
15,0 |
30,0 |
| |
|
|
|
|
| |
|
|
|
|
Lifting capacity for different slopes in kg
Gradient % slope / angle in degrees
- 10% / 6°: 1000
- 20% / 11°: 750
- 40° / 25°: 500
- 60% / 31°: 400
- 80% / 39°: 350
NOTE:
1. All specifications are based on the 1st layer of rope. With each layer unwound, the lifting force increases by 10%
2. Use a pulley for double hoist to increase lifting capacity by approx. 85
3. the lifting capacities are based on one lifting load. 15% is allowed for friction (specific applications may vary)
Warning
Winches are not designed for lifting or moving people.
the specified pulling capacity is based on the first layer of rope on the drum.
When uncoiling the rope, 5 wraps should always remain on the drum.
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Lifting speed: |
1 - 15 m / min |
| Application: |
Private |
| Lifting force (without deflection): |
101 - 250 kg |
| Max. Lifting height: |
21 - 30 m |
| Voltage: |
220 V - 240 V |
| Radio remote control including: |
No |
| Shipping weight: |
36,50 kg
|
| Item weight: |
34,00 kg
|
| Dimensions
( Length × Width × Height ):
|
54,80 × 21,00 × 24,10 cm |
