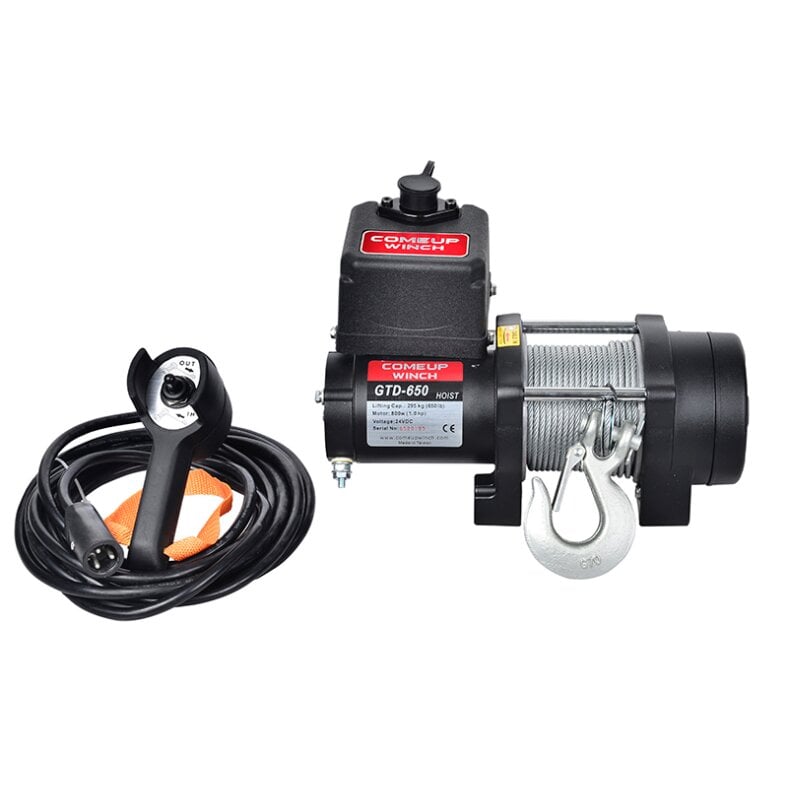

ComeUp hoisting winch 295kg gtd800 12v

SKU: CU-GTD650-12V
Category: Hoist Winches

Provides an answer to the health and safety recommendations for manual lifting
High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is ideal for easy installation..
Mechanical spring applied and permanent motor dynamic brakes together for safe, controlled load.
Waterproof industrial remote control with 5 m lead
Full metal 3 stage planetary gear train for greater pulling force.
Submersible sealed contactor handles high amps and allows higher duty cycle.
In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

462,91 €

incl. 19% VAT , plus

Available immediately
Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

piece

Rated line lift: 295 kg / 650 lb
Line speed (at 1st layer of rope):
12V : 6.1 mpm / 20.0 fpm 20A at no load
4.4 mpm / 14.4 fpm 55A at full load
24V : 7.0 mpm / 23.0 fpm 15A at no load
5.3 mpm / 17.4 fpm 30A at full load
Motor: 800 w / 1.0 hp 12/24V permanent magnet
Gear ratio: 3-stage planetary gear 138.5:1
Brake: Mechanical spring applied and permanent motor dynamic brakes together
Hoist construction: Aluminum die housings and drum
Drum size: 61.2 x 75 mm (2.4” x 3.0")
Control: Remote control with 5 m (17') lead
Rope type: Galvanized aircraft A7 x 19
Rope size: 3.6 mm x 18.3 m (9/64" x 60')
Mounting bolt pattern: 124 x 76 mm (4.9” x 3”)

Standard Compliance:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2014/30/EU
-ASME B30.5

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull,	Line Speed, mpm / fpm		Amp Draw, A		Percentage Duty Cycle,
kg / lb	12V	24V	12V	24V	Min / 10 min
No load	6.1 / 20.0	7.0 / 23.0	20	15	3.0
147 / 320	5.0 / 16.4	6.0 / 19.7	40	22	2.0
295 / 650	4.4 / 14.4	5.3 / 17.4	55	30	1.5

Line Pull and Rope Capacity:

Layer of Wire Rope	Load by Layer,kg / lb	Line Speed, mpm / fpm		Total Rope on the Drum, m / ft
Layer of Wire Rope	Load by Layer,kg / lb	12V	24V	Total Rope on the Drum, m / ft
1^st	295 / 650	4.4 / 14.4	5.3 / 17.4	4.1 / 13.5
2^nd	266 / 586	4.9 / 16	5.9 / 19.4	8.7 / 28.5
3^rd	241 / 531	5.4 / 17.7	6.5 / 21.3	13.8 / 45.3
4^h	221 / 487	5.9 / 19.4	7.1 /23.3	18.3 / 60

Warning

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The rated load shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Hoist weight: 7.7 kg / 17 lb
Gross weight: 11.6 kg / 25.6 lb
Box dimension (L x D x H): 390 x 170 x 300 mm (15.4” x 6.7” x11.8”)

Lifting force (without deflection):	251 - 500 kg
Max. Lifting height:	21 - 30 m
Lifting speed:	1 - 15 m / min
Voltage:	12 V
Application:	Private
Radio remote control including:	No
Shipping weight:	11,60 kg
Item weight:	7,70 kg
Dimensions ( Length × Width × Height ):	29,90 × 11,50 × 12,00 cm
