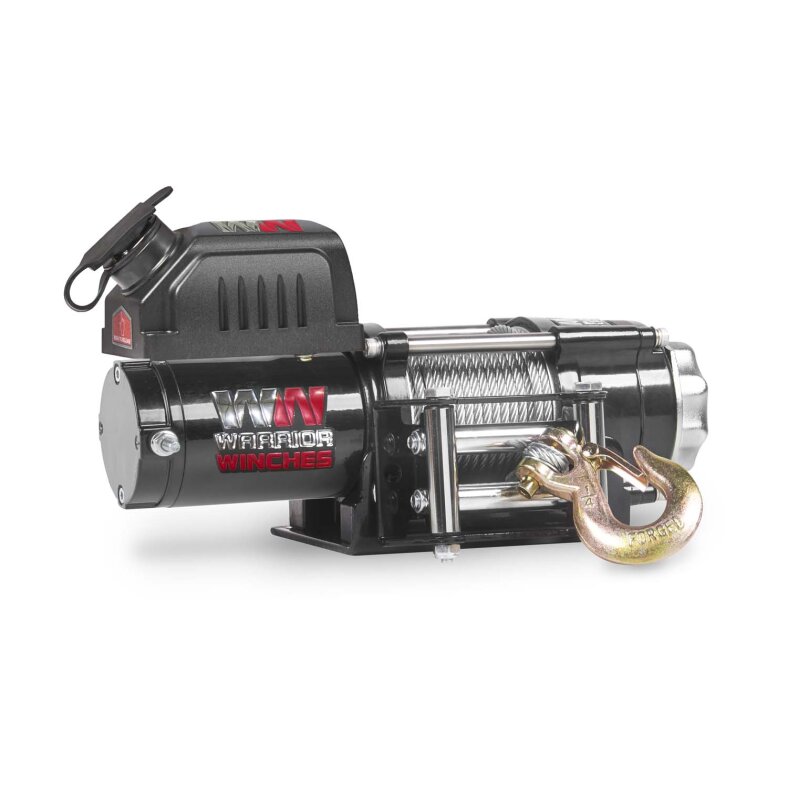

atv/utv quad electric winch warrior ninja 2500lb 1.1t 24v

atv/utv quad electric winch warrior ninja 2500lb 1.1t 24v

SKU: 25SPS24
GTIN: 5060423980308
Category: Winches

Protection class: ip66

149,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

piece

Ideal for large aTvs and small trailers. The Warrior ninja 2500a with steel cable. A large 1.35 hp motor, heavy duty clutch, steel gearbox and waterproof connectors deliver the ultimate in performance and reliability. Complete with mounting plate for flat mounting or alternatively for mounting on ball head. alternatively available with handlebar controls instead of cable remote*.

Standard equipment:

Pulling force: 2,500lb (1,134kg)
Rope: 14m length ø4.8mm steel cable with g80 3/8 clevis hook
Engine: efficient 1.35 hp /0.95 kw 24 v
waterproof connector
allows electric pulling in and out of the rope
Freewheel: for manual extraction of the rope
Gear ratio: 170:1
brake: dynamic
Protection class: IP66

Accessories:

Cable remote control: included (3m cable length)/ alternatively with handlebar control*
Cable window: 4-way pulley rope window
Pulley: 3t
mounting screws: included (for standard mounting)
battery cable: Length 1.5 m (must be extended depending on the application), cable cross-section: 6 mm²
operating instructions
Mounting plate: included

*possibly longer delivery time. please ask us!

Further information:

dimensions (l x w x h): 346mm x 113mm x 188mm
Drum size: 37 x 80mm
Hole pattern/drilling pattern winch: 124mm x 76mm (4 screws)
Hole pattern/drill pattern mounting plate: 63,5mm (horizontal ø 9mm - 2 screws)
Approx. weight: 9.3kg

Pulling speeds and power consumption:

Rope layer	Pulling force
	lbs / kg

1	2500 / 1134
2	2033 / 922
3 4 5	1713 / 777 1480 / 671 1303 / 591


Tractive force	Traction speed		Power consumption ( a )
lbs / kg	ft / min	m / min	24 v

0	10,5	3,2	25
500 / 227	9,6	2,9	35
1500 / 680	7,7	2,4	65
2500 / 1134	6,2	1,9	100

IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches.

Voltage:	24 V
Line Pull:	1,1 - 2 t
Cable/Rope Length:	1 - 15 m
Cable/Rope Type:	Steel Cable
Price:	0 - 199 EUR
Brand:	Warrior®
Application:	Private Off-Road
Vehicle Type:	ATV/Quad Others
Drive Type:	electric
Special Features:	weatherproof
Shipping weight:	12,00 kg
Item weight:	9,00 kg
Dimensions ( Length × Width × Height ):	34,60 × 11,30 × 18,80 cm
