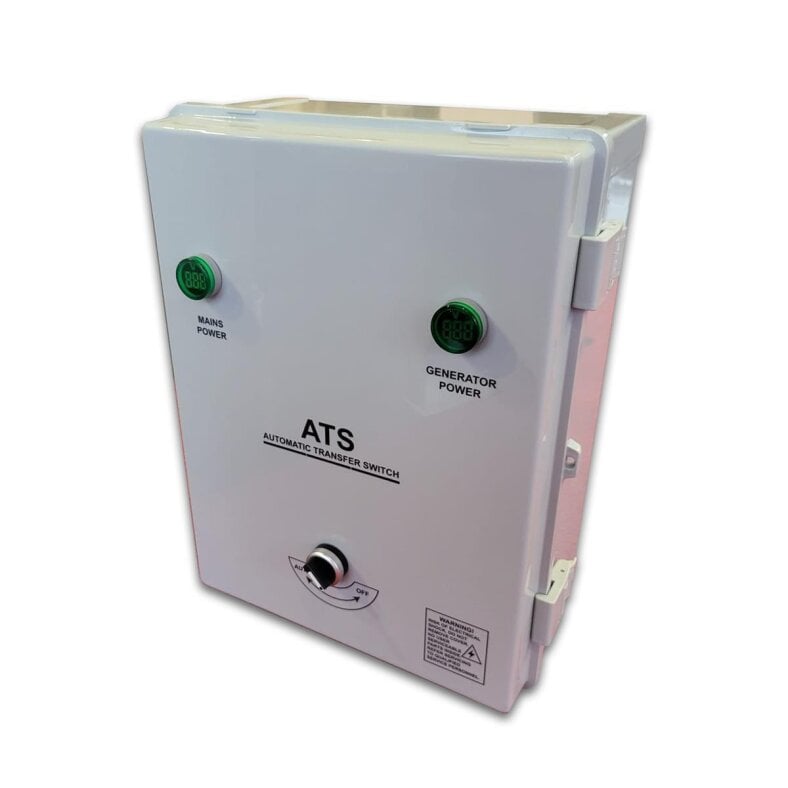

ats box 25 amp 400v for HYUNDAI, ITC POWER, KOMPAK, Wagner, BLACK+DECKER Diesel Generator Sets
Please pay attention to the amp power you need for home when choosing ats box. If you are unsure, please ask your electrician.
The ats box is used for automatic emergency power switching in case of mains failure.
For gensets from 1 to 10 kW, 25a, 400v gensets with 15 m cable. ref: AC-ats12-3P
The ats box complies with the Low Voltage Directive 2066/95/EC
Dimension of the box: 410 x 325 x 205 mm
Length of the cable: 15 meters
Cable cross section 1,5mm
Further notes:
PLEASE note!: The installation of the system in the domestic system must always be carried out by a qualified electrician!
If you want to extend the cable, you should increase the cable cross-section to 2.5mm.
If you need more than 100 meters, the battery charger must be changed and put in the generator to avoid the voltage drop of 12v dc.
