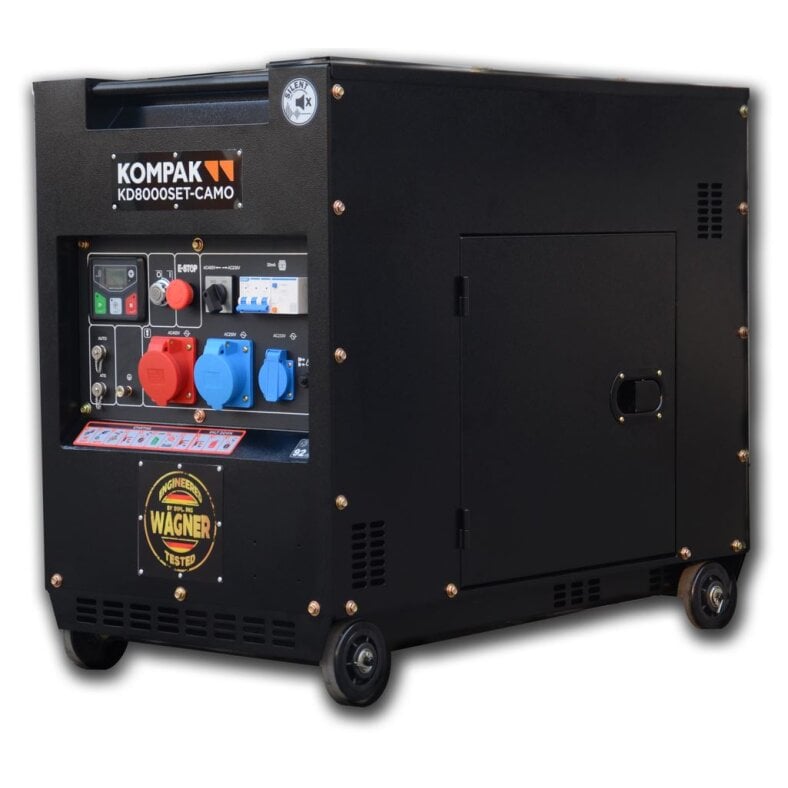

Diesel emergency generator kd8000set-camo 8kva 400v/230v
The kd8000set-camo is a special development of graduate engineer Mr. Wagner with the latest technology. Due to the numerous innovations, this diesel emergency power unit is designed to be even more durable and of higher quality. In addition, it is a 400v unit with full power on 230v.
8kvA power, 100% shift load and a 25 liter tank are just a few of the almost unbelievable key data.
The modern sound insulation reduces noise emissions to an absolute minimum - the improved cooling ensures maximum running performance. This makes the genset ideal for reliable emergency power home protection.
Modifications in the engine and generator area, as well as the final inspection of each unit, are among these small refinements. Every kd8000set-b that leaves our warehouse has been fully inspected and tested again before shipping, so you can be sure to get a perfect generator.
The generator is ideal for your home security or construction site.
Technical Features:
- 4 stroke diesel engine with direct injection
- Large tank
- The casing ensures a low noise level
- The digital display ensures you many monitoring options
- Overload protection
- Low oil protection
- LED indicator
- Earth fuse
- With ats connection
The high quality avr voltage regulator ensures constant voltage, so you can also connect sensitive electronics.
Technical data for the diesel generator kd8000set-camo
- Frequency 50 Hz
- Voltage 400 v / 230v full power on 230v and on 400v (not simultaneously)
- Continuous power: 400v 7,5 kvA / 230v 5,5 kW
- Maximum power: 400v 7,9 kvA / 230v 5,8 KW
- Connections: 1x 400v 16a, 1x 230v 32a (cee), 1x 230v 16a (Schuko)
- RCD protection
- Display LED6
- Tank capacity 25 liters
- Running time: approx. 28h at 50% load
- Loudness 72dB at 7 meters
- Engine D500E
- Engine power 12,0 HP
- Displacement 498 cc
- Oil capacity 1.65 liters
- Generator: 100% copper
- Electric starter, battery included
- Battery: lithium ion
- avr voltage regulator
- Speed 3.000 rpm.
- Dimensions /LxWxH) 920x520x790 mm
- Gross weight 172 Kg
The following products are also included in the delivery:
- Maintenance kit (oil filter, diesel filter and air filter) worth more than 50€
- Oil pump (for easy pumping of oil for oil changes) worth 40€
- 2 liters of oil worth 16€
The generator is delivered on wheels - so the device can be easily pushed to the place of use.
Alternatively, the device can also be transported by means of integrated crane loading eye on the top.
Of course, our proven accessories are also optionally available for this device
