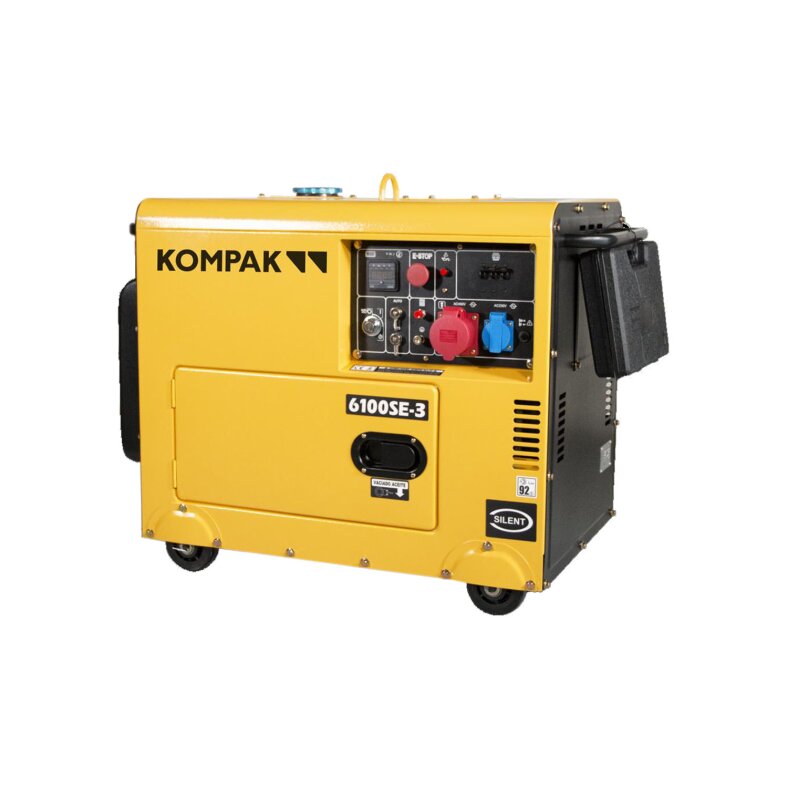

KOMPAK 6100SE-3 – 6.9 kVA Diesel Generator with 400 V and 230 V Output
The KOMPAK 6100SE-3 diesel generator is designed for users who require a reliable independent power source combined with professional equipment and straightforward operation. With a maximum output of 6.9 kVA at 400 V, a robust diesel engine, electronic AVR voltage regulation, electric starting and a sound-insulated enclosure, it is suitable for a wide range of professional and backup-power applications.
Typical applications include construction sites, workshops, farms, technical installations, remote properties and mobile power supply. When correctly planned and installed by a qualified electrician, the generator can also form part of a standby or emergency power system.
Up to 6.9 kVA for demanding 400 V applications
The KOMPAK 6100SE-3 provides both 400 V three-phase and 230 V single-phase power. Maximum output at 400 V is 6.9 kVA, with a continuous rated output of approximately 6.25 kVA.
This makes the generator particularly suitable for applications requiring three-phase power, including compatible machinery, tools, pumps and technical equipment.
Important: The KOMPAK 6100SE-3 is not a Full Power generator. Its 230 V socket uses only part of the alternator's available capacity. If your application primarily involves high-power 230 V equipment, the required continuous and starting power should therefore be checked carefully before purchase.
D400E 418 cc 4-stroke diesel engine
Power is provided by a durable D400E 4-stroke direct-injection diesel engine. With a displacement of 418 cc and an output of 10 HP, the engine operates at 3,000 rpm and provides the robust mechanical foundation required for demanding generator applications.
Diesel technology is particularly well suited to users who value durability, operating efficiency and reliable performance over extended operating periods.
AVR automatic voltage regulation
The KOMPAK 6100SE-3 incorporates electronic AVR – Automatic Voltage Regulation. The AVR continuously regulates generator voltage and helps reduce voltage fluctuations as electrical loads change.
This provides a more stable power supply than basic generators without automatic voltage regulation and increases the range of compatible electrical equipment that can be operated within the generator's specified performance limits.
Convenient electric starting
An integrated electric starter allows the diesel generator to be started conveniently without the effort normally associated with manually starting larger diesel engines. The starting battery is included with the generator, while an additional manual starting option provides added flexibility.
ATS-ready for automatic emergency power systems
The ATS connection is particularly useful for customers planning a standby power installation. When combined with a suitable optional Automatic Transfer Switch, the generator can be incorporated into a system designed to detect a mains power failure and automatically start the generator.
Once utility power returns, a correctly designed installation can transfer the connected circuits back to the mains supply.
Any connection to a building's electrical installation, including selection and installation of an ATS or mains changeover system, must be carried out by a suitably qualified electrician.
Sound-insulated enclosure
Unlike conventional open-frame generators, the KOMPAK 6100SE-3 uses a largely enclosed sound-insulated housing. In addition to protecting major internal components, the enclosure helps reduce operating noise compared with open-frame diesel generators.
This makes the unit particularly attractive for workshops, commercial premises, properties and other environments where a powerful diesel generator is required but noise should be kept as low as reasonably possible.
Integrated protection and monitoring
Reliable generator operation is supported by a range of integrated protection functions, including overload protection and low-oil protection. These systems help protect the engine and generator from potentially damaging operating conditions.
A digital display provides convenient access to important operating information and enables the operator to monitor the generator during use.
400 V, 230 V and 12 V connections
- 1 × CEE 400 V / 16 A outlet
- 1 × 230 V / 16 A outlet
-
12 V DC / 8.3 A output
-
ATS connection for compatible automatic transfer systems
KOMPAK 6100SE-3 Technical Specifications
| Brand |
KOMPAK |
| Model |
6100SE-3 |
| Generator type |
Diesel generator, single-phase / three-phase |
| Voltage |
230 V / 400 V |
| Frequency |
50 Hz |
| Maximum output at 400 V |
6.9 kVA |
| Rated output at 400 V |
approx. 6.25 kVA |
| Maximum output at 230 V |
approx. 1.85 kW |
| Rated output at 230 V |
approx. 1.7 kW |
| Voltage regulation |
AVR |
| Engine |
D400E 4-stroke direct-injection diesel engine |
| Displacement |
418 cc |
| Engine output |
10 HP |
| Engine speed |
3,000 rpm |
| Oil capacity |
1.65 litres |
| Starting system |
Electric / manual |
| ATS |
ATS connection provided |
| 400 V outlet |
1 × CEE 16 A |
| 230 V outlet |
1 × 16 A |
| DC output |
12 V / 8.3 A |
| Dimensions |
approx. 920 × 520 × 740 mm |
| Net weight |
approx. 154 kg |
Typical Applications
- Construction sites
- Workshops and trade businesses
- Agriculture and forestry
- Machinery and technical installations
- Remote properties and locations
- Mobile power supply
- Emergency and standby power systems
- Suitable 400 V and 230 V electrical equipment
Why choose the KOMPAK 6100SE-3?
The combination of 6.9 kVA maximum output, 400 V and 230 V connections, diesel engine, AVR voltage regulation, electric start, ATS compatibility and a sound-insulated enclosure makes the KOMPAK 6100SE-3 a versatile choice for customers looking for a robust and professionally equipped diesel generator.
If you are unsure whether the KOMPAK 6100SE-3 is suitable for your equipment or planned backup-power application, provide us with the voltage, continuous power, maximum starting current and details of the equipment you intend to operate. This allows the required generator capacity to be assessed before purchase.
