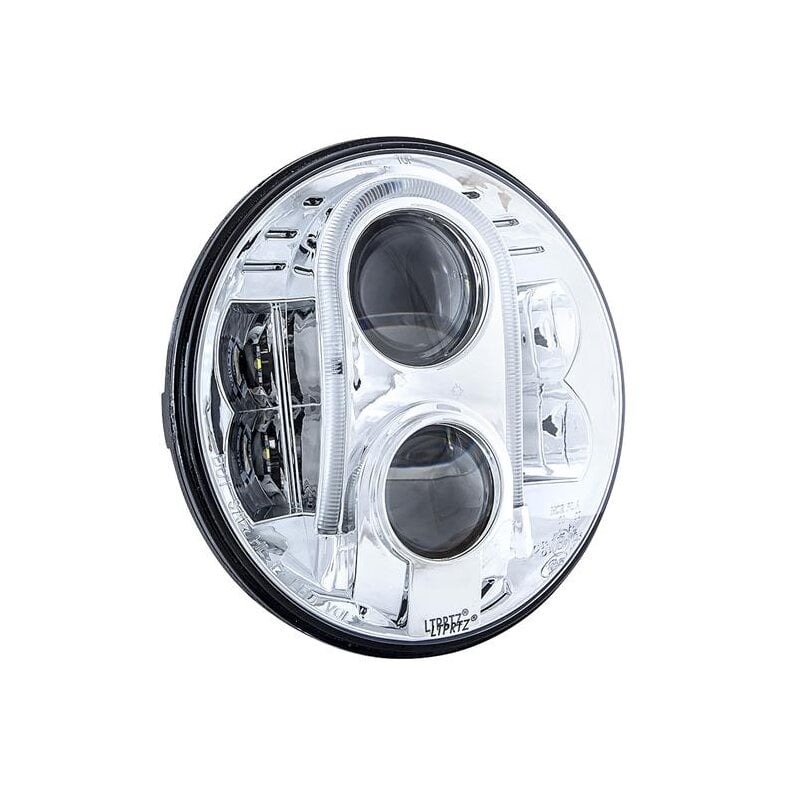

7" LTPRTZ® Headlight 2.0 Jeep Harley chrome
ECE certification according to r112, r10, R7
Reference number 12.5
Features:
- UV resistant chrome reflector with protective coating
- H2+ hard coated bayer2407 raw polycarbonate coating
- with h4 connector and h4 to h13 converter
- UV-resistant Mitsubishi acrylic lens with 96% transparency
- high quality die-cast aluminum housing for best thermal regulation
- canbus decoder included
Technical specifications:
- 1 piece, round, black housing, chrome colored bezel
- Low beam: 30w: eff. lumen 957LM
- High beam: 36w: eff. lumen 1690LM
- Parking light: 53lm @ 1W
- Input voltage: 9-36V DC
- Housing: black, die-cast aluminum alloy
- Lens: UV light resistant, extra hardened polycarbonate
- Color temperature: 6000-6500k
- Working temperature: -40°-85° C
- Overvoltage protection up to 600V
- Lifetime: over 20,000 hours
- Protection class: IP67
- waterproof, dustproof, shockproof
- incl. h4 and h4 to h13 converter
- Replaces par56 headlight
Main applications:
- 1955-1983 Jeep CJ-5
- 1976-1986 Jeep CJ-7
- 1981-1985 Jeep CJ-8
- 1997-2006 Jeep Wrangler (TJ)
- 2007-2018 JeepWrangler 2-door (JK)
- 2007-2018 Jeep Wrangler Unlimited 4-door (JK)
- Land Rover Defender, G class Mercedes, Harley Davidson, vw Golf 1 and 2, t3, Hummer and many more....
(if originally equipped with round 7" headlights)
- DAF Leyland T244
- Installation kit for #6014, 6015, 6016, h6024 and par56
Standards compliance:
ECE 112r (low beam and high beam), 7r (position light), 10r (electromagnetic compatibility) , reference number 12.5
