LIGHTPARTZ High-End

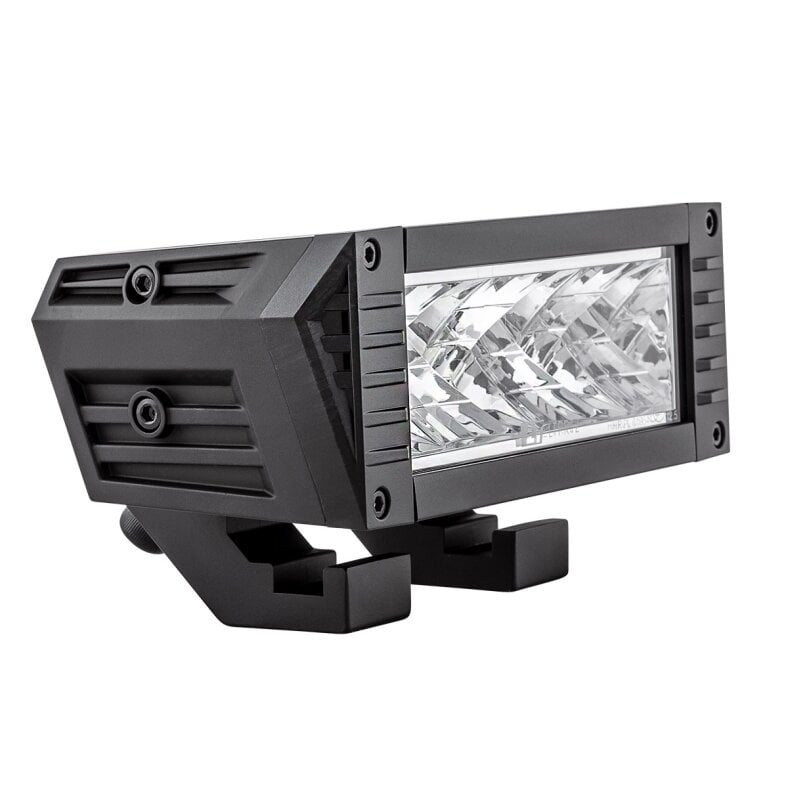

Prime-X 7" driving lamp lightbar
Special Features:
- Highest water tightness: high pressure suitable
- Highest quality materials
- Extremely small shoring size
- Can be used in ambient temperatures from -40° - +95°
- Certification for electromagnetic compatibility
- Reference number: 12.5
- Range: 760m (0.1Lx)
Discover Prime-X, the crowning achievement in led auxiliary headlamps and another milestone for LTPRTZ's engineering team. Fully approved for road use, combined with exceptional light output, Prime-X is the first choice for applications where maximum road illumination is desired at night. In addition to the aesthetic design, the series is functionally superior manufactured, the aerodynamic shape minimizes air currents and drag even when driving fast.
The Prime-X 7 uses highly efficient 5x 5 watt led chips and achieves an incredible 300m range at 1 lux with just 24w power consumption and 161mm overall length.
But what else sets Prime-X apart besides its superior light levels?
The use of the best and most robust materials, extreme manufacturing precision, as well as the latest reflector technology with the highest waterproofness distinguish all X products.
The light distribution is controlled by an optically newly designed double reflector, which allows both standing and hanging installation of the Lightbar, while at the same time dispensing with vertical light diffusion. As a result, the light goes where it is supposed to go: the full width of the roadway. Other positive effects are that additional energy consumption and the dazzling of oncoming traffic are thus avoided.
Another impressive feature is the high light transmission of the lightweight but shatterproof Sabic lexan polycarbonate lens, which has an additional UVHC3000 coating. Increased light sharpness and fidelity to detail allow the driver to recognize objects immediately, thus ensuring increased safety in road traffic. In addition, premature eye fatigue is avoided and driving - even over long distances - becomes more relaxed.
All materials have been tested for the toughest use under the most extreme conditions and the consistent performance of the lightbars is guaranteed at ambient temperatures between -40° - +90°c.
The internal thermal management automatically regulates the light output, so that the durability of the chips is guaranteed for years.
Of course, the certification also extends to electromagnetic compatibility, so there is no interference with other consumers in your vehicle.
With a length of only 161 mm and a height of 58 mm, the Prime-X 7 is designed to be easily integrated into spatially limited niches of the vehicle.
The included brackets made of lightweight aluminum allow flexible positioning for optimal alignment of the light in the desired direction.
Scope of delivery:
- 1x Prime-X 7"-led lamp
- 2x rear aluminum brackets
- 1x set of mounting screws
- 1x installation instructions
| Technical data |
|
| Input voltage |
|
9-33V |
|
| Light source |
|
5x led chip
12v: 24.3w | 24v: 23.8W |
|
| Light intensity |
|
58.600cd @12V |
|
| Light output (raw) |
|
1.985lm |
|
| Light diffusion |
|
ECE |
|
| Light color |
|
6000K |
|
| Protection class |
|
ip69k (test according to iso 20653 |
|
| Lens |
|
Sabic lexan ls2-111 | uvhc-3000 coating |
|
| Housing |
|
Aluminum 6063 |
|
| Mounting |
|
vertical | hanging |
|
| Connection |
|
DT04-2P |
|
| Weight |
|
0.82 kg |
|
| Dimensions |
|
161 x 81.6 x 58 mm |
|
| Homologation: |
|
ECE R112.01 |R10|Ref. 12.5 |
|
