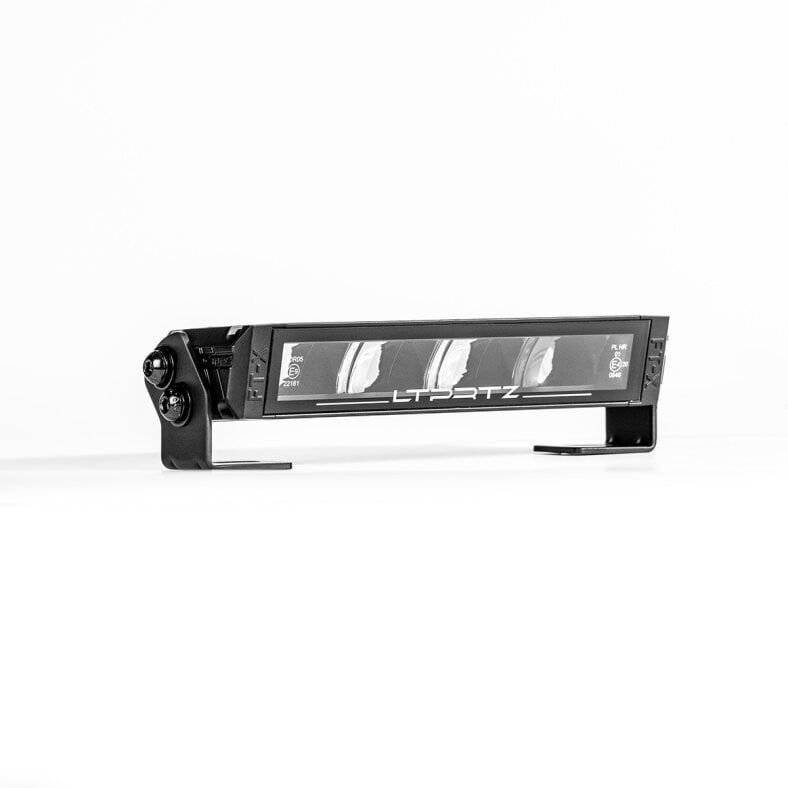

Flat-X High-End 30°
9 Inch High Beam Headlight Lightbar
- Angled lens for better visibility - no dust or snow accumulation
- No screws on the front side
- Slim design with a housing height of only 3.85 cm
Key Features:
- Full road approval
- Highest waterproof rating: IP69K
- Top quality materials
- Extremely compact design
- Operating temperature: -30°C to +80°C
- Reference number: 20
- Range: 300m (1 Lux)
Package Contents:
- 1x Flat-X 9" Lightbar
- 1x Set of side mounting brackets (left and right)
- 2x Adjustable rear mounting brackets
Technical Specifications:
- Operating voltage: 12/24V
- Power: 12V: 31W | 24V: 30W
- Current consumption: 12V: 2.35A | 24V: 1.67A
- Luminous intensity: 83,600 cd
- Lumen (raw/effective): 3360/2400 lm
- Housing: Extruded aluminum
- Lens: Impact-resistant polycarbonate Sabic Lexan LS2-111
UVHC-3000 coating
- Reflector: Polycarbonate with aluminum coating
- Mounting bracket: Stainless steel
- Protection class: IP69K
- Connector: DT04-2P
- Homologation: ECE R10 | R112.01 Class B
- Reference number: 20
- LEDs: 4 pieces OSRAM
- Light color: 5000K
- Dimensions: 224x67.2x38.5mm
- Weight: 0.7 kg
