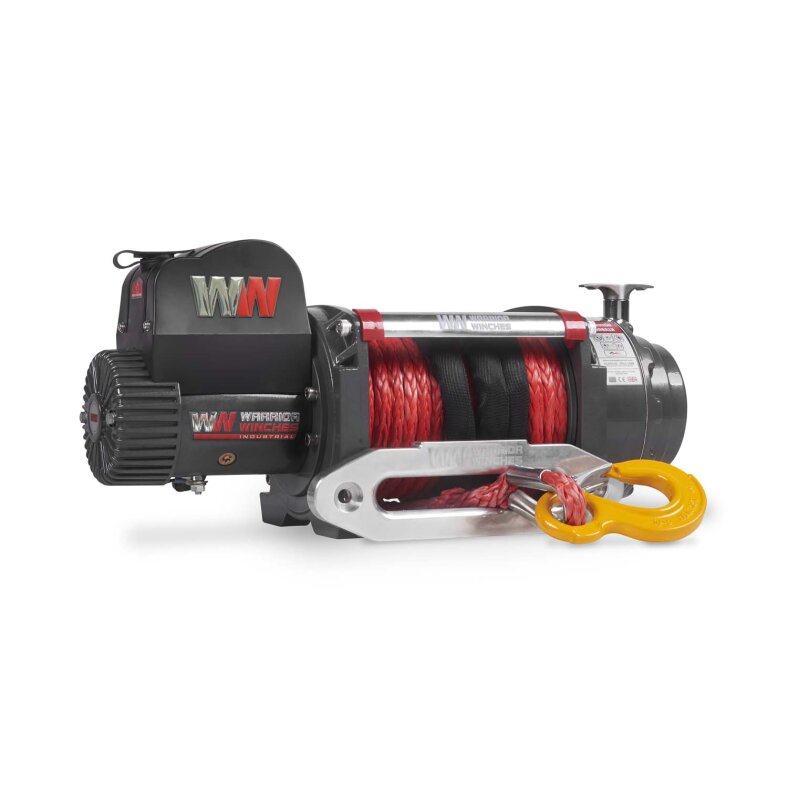

Warrior Samurai 20000 Winch
If you need incredible pulling power - look no further. With a pulling capacity of a massive 9000kg, the Samurai S20000 offers one of the best value for money on the market today.
This winch will handle any job with ease and has a speed of 0.9m per minute at full load. With the choice of steel or synthetic rope, there is no compromise on performance.
The corrosion-protected solid brass series wound motor is built to last. Protected with a double sealed motor and drum and sealed waterproof contactor, this Samurai winch is ready to take on any weather condition.
Robust, super strong and durable, the efficient all-steel planetary gear is the cherry on top of a quality winch that won't break the bank.
Standard Features:
- Pulling Capacity: 20000lb (9072kg)
- Motor: Series Wound Motor - Input and Output
- Gearbox: Freewheel Clutch - Allows manual unwinding of cable
Accessories:
- Wired Hand Control: 3m wired hand control
- Mounting Plate: Optionally available
- Mounting Screws: Included for standard installations
- 1.5m heavy duty battery cable (must be used depending on application extended)
- Battery isolator switch (failure to use will void warranty)
- Instruction manual
Other information:
- Dimensions: 610mm L x 218mm D x 272mm H
- Mounting pattern hole pattern: 254mm x 114.3mm and 254mm x 254mm x 165.1mm
- Rope pull - no load: 6.0 m/min (100 amps)
- Rope pull - full load: 9 m/min (480 amps)
While every effort has been made to ensure the accuracy of the information on this product, in the interest of technical improvement, this specification is subject to change without notice.
Pulling speeds and power consumption:
| Rope layer |
|
Tractive force |
|
|
|
| |
|
lbs / kg |
|
|
|
| |
|
|
|
|
|
1 |
|
20000 / 9072 |
|
|
|
2 |
|
16160 / 7330 |
|
|
|
3
4 |
|
13557 / 6149
11677 / 5297 |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| Traction |
|
Traction speed |
|
Power consumption ( a ) |
| lbs / kg |
|
ft / min |
m / min |
|
24 V |
| |
|
|
|
|
|
| 0 |
|
19,7 |
6,0 |
|
40 |
| 6000 / 2728 |
|
7,9 |
2,4 |
|
100 |
| 10000 / 4545 |
|
5,9 |
1,8 |
|
140 |
12500 / 5682
14000 / 6350
17500 / 7938
20000 / 9072 |
|
5,2
4,6
3,9
3,3 |
1,6
1,4
1,2
1,0 |
|
180
200
250
265 |
<
| Schicht aus Seil/Kabel |
Seilzug: lbs(kgs) |
| 1 |
20000 (9072) |
| 2 |
16160 (7330) |
| 3 |
13557 (6149) |
| 4 |
11677 (5297) |
Seilzug
lbs (kgs) |
Seilgeschwindigkeit 12v
ft/min (m/min) |
Seilgeschwindigkeit 24v
ft/min (m/min) |
Stromaufnahme (A)
12v |
Stromaufnahme (A)
24v |
| 0 |
21.3 (6.5) |
19.7 (6.0) |
100 |
40 |
| 6000 (2728) |
7.2 (2.2) |
7.9 (2.4) |
220 |
100 |
| 10000 (4545) |
5.6 (1.7) |
5.9 (1.8) |
320 |
140 |
| 12500 (5682) |
4.9 (1.5) |
5.2 (1.6) |
350 |
180 |
| 14000 (6350) |
4.6 (1.4) |
4.6 (1.4) |
380 |
200 |
| 17500 (7938) |
3.0 (0.9) |
3.9 (1.2) |
450 |
250 |
| 20000 (9072) |
3.0 (0.9) |
3.3 (1.0) |
480 |
265 |
