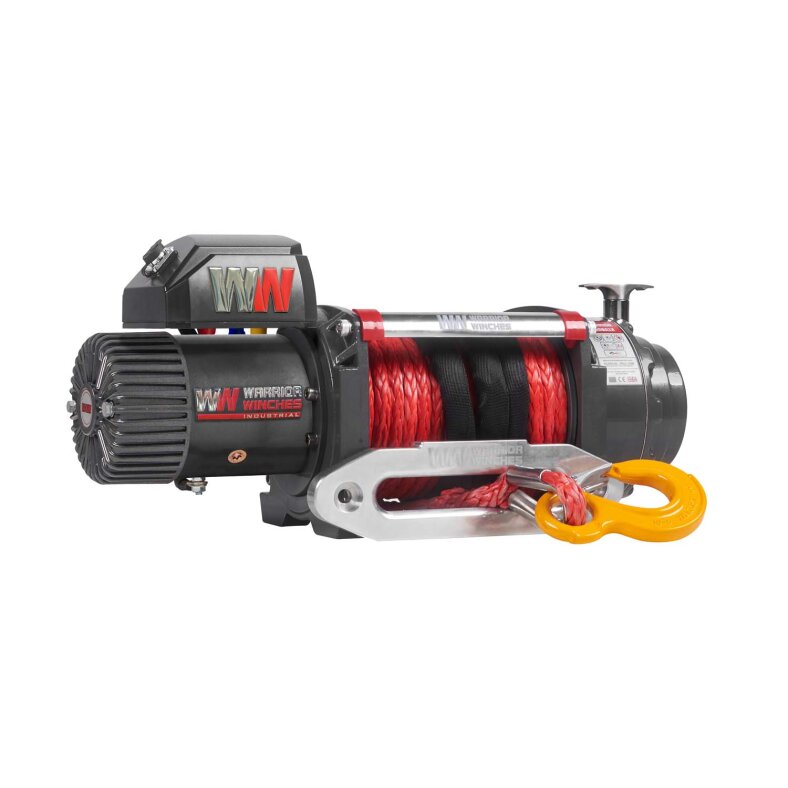

Electric winch warrior samurai s17500 7.9 t 12 v plastic rope waterproof to ip68

Electric winch warrior samurai s17500 7.9 t 12 v plastic rope waterproof to ip68

SKU: 175SA12
GTIN: 5060423981251
Category: Winches

1.290,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

piece

The Samurai S17500 is the winch with the best EUR/kg pull ratio. Outstanding features include the large
and high quality 7.2hp dual sealed motor with brass fittings, waterproof hd gearshift, dual sealed drum running on maintenance free ball bearings, and quiet, fully
Drum that runs on maintenance free ball bearings, and the quiet, fully sealed, high efficiency planetary gearbox.
Stainless steel roller rope window and other special features are standard on this winch.

Standard Features:

Pulling force: 17,500lb (7,938kg)
Rope: 25m length 12mm armortek plastic rope with clevis hooks
Motor: brass (no corrosion) reversible 7.2hp/5.4kW 12v in-line motor-
enables electric pulling in and out of the rope
Gearboxoverrunning clutch - allows easy manual extraction of the rope
sealed 3-stage planetary gearbox
Brake automatic drum brake
2-fold sealed drum (gearbox/motor)
Gear ratio: 430:1
sealed waterproof gear shift 600 a
Plastic reinforced protective cover for gear shift

Accessories:

Cable remote control with 3m cable
Radio remote control: optional, not included
Rope window: super light aluminum rope window
Mounting screws: included (for standard mounting)
Battery cable: 1.5m hd battery cable (need to be extended depending on application), cable cross section: 32 mm²
Battery disconnect switch
Instruction manual

Further information:

dimensions (LxWxH): 610mm x 216mm x 276mm
Hole pattern/drill pattern: 254mm x 114.3mm
Drum size (D x l): 89mm x 217mm
Approx. shipping weight: 60kg

Pulling speeds and power consumption:

Rope layer	Tractive force
	lbs / kg

1	17500 / 7938
2	14000 / 6364
3 4 5	12500 / 5682 10000 / 4545 6000 / 2728


Traction	Traction speed		Power consumption ( a )
lbs / kg	ft / min	m / min	12 V

0	22,3	6,8	100
6000 / 2728	9,84	3,0	220
10000 / 4545	9,8	2,0	320
12500 / 5682 17500 / 7938	5,8 3,9	1,7 1,2	350 450

IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
Any use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches.

Voltage:	12 V
Line Pull:	6,1 - 8 t
Cable/Rope Length:	26 - 30 m
Cable/Rope Type:	Synthetic Rope
Price:	1000 - 1999 EUR
Brand:	Warrior®
Application:	Private Off-Road Forestry/Hunt Universal
Vehicle Type:	Car Truck Others
Drive Type:	electric
Special Features:	waterproof
Shipping weight:	60,00 kg
Item weight:	60,00 kg
Dimensions ( Length × Width × Height ):	61,00 × 21,40 × 27,60 cm
