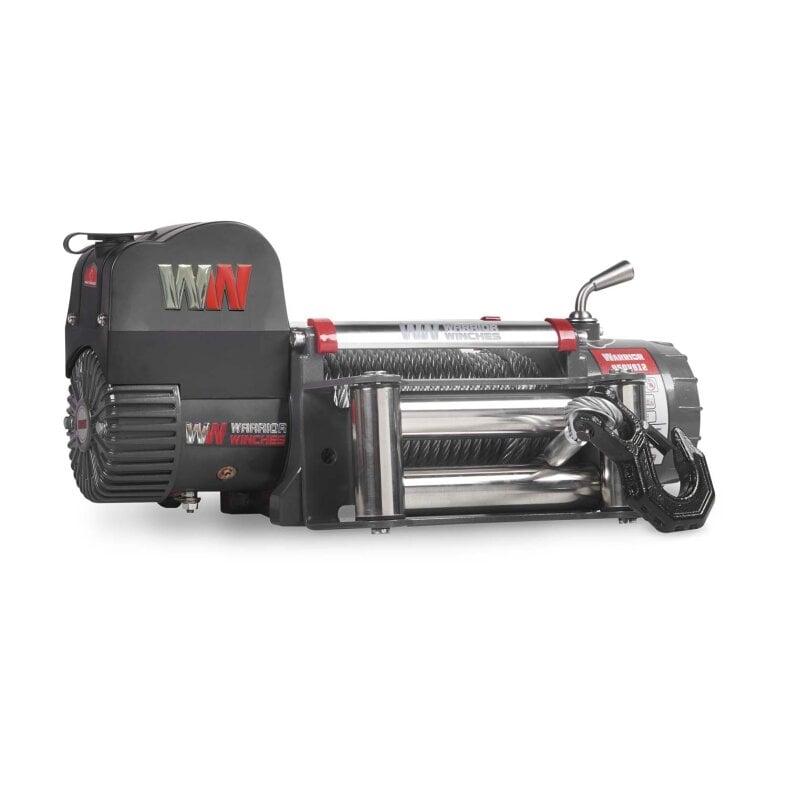

Next Generation Warrior Samurai V2 9500lb Winch
Since their launch, the Warrior Samurai winches have been their premium offerings. Now upgraded to V2, the high-spec winch has only gotten better, making it ideal for reliable recovery and 4x4 applications. With a pulling capacity of 9500 LB or 4500 kg, this heavy-duty, super-strong winch gets the job done.
In addition to its strength, this upgraded Warrior winch features a high-quality wound motor with brass contacts that lead directly to the motor for efficient operation. It also features a heavy-duty waterproof solenoid, double-sealed drum, and a solid steel planetary gear box that runs quietly to keep the peace. Whether you choose the stainless steel 4-way cable guide or the aluminum cable guide (synthetic rope), the Warrior Samurai V2 winch offers unbeatable performance.
The standout feature, however, is the addition of a revolutionary new external braking system. Unlike traditional winch brakes, the V2 Samurai brake is located at the end of the gearbox rather than in the drum. Even faster with a lower amp draw and a higher capacity to hold and lower the load - the benefits are numerous. It also reduces heat build-up around the drum, making it particularly safe to use with synthetic ropes.
With a speed of 2.2 m/min (320 amps) at full load, you'll get the job done quickly and easily.
Standard Features:
? Pulling Force : 4,500 kg (9,500 lb)
? Motor : Series wound motor - input and output
? Gearbox : Freewheel clutch - Allows manual unwinding of the cable
Accessories:
? Wired Hand Control: 3.8 m wired hand control
? Wireless Control - ONLY 12V MODEL : Pre-installed heavy-duty radio control with lanyard (see note below)
? Mounting Plate : Available as an optional extra
? Roller Fairlead : Heavy-duty 4-way roller fairlead with stainless steel rollers
? Mounting Bolts : Included for standard installations
? 1.5m heavy-duty battery cable (must be extended depending on application)
? Battery Isolator Switch (failure to use will void warranty)
? Owner's Manual
Other Information:
? Dimensions : 559mm L x 160mm D x 248mm H
? Mounting Bolt Pattern : 254mm x 114.3 mm
? Rope pull - no load : 10.2 m/min (50 amps)
? Rope pull - full load : 2.2 m/min (320 amps)
While every effort has been made to ensure the accuracy of the information on this product, in the interest of technical improvement, this specification is subject to change without notice.
| Layer of Rope/Cable |
Line Pull: lbs(kgs) |
Rope on Drum ft(m) |
| 1 |
9500 (4309) |
18 (5.5) |
| 2 |
7600 (3447) |
39.4 (12) |
| 3 |
6200 (2812) |
64 (19.5) |
| 4 |
5400 (2449) |
85 (26) |
Line Pull
lbs (kgs) |
Line Speed 12v
ft/min (m/min) |
Line Speed 24v
ft/min (m/min) |
Amp Draw (A)
12v |
Amp Draw (A)
24v |
| 0 |
33.4 (10.2) |
44.3 (13.5) |
50 |
45 |
| 2000 (907) |
17.4 (5.3) |
20.3 (6.2) |
120 |
90 |
| 3000 (1360) |
15.4 (4.7) |
17.3 (5.3) |
150 |
105 |
| 6000 (2721) |
10.1 (3.1) |
12.4 (3.8) |
260 |
190 |
| 8000 (3628) |
8.2 (2.5) |
9.5 (2.9) |
300 |
230 |
| 9500 (4309) |
7.2 (2.2) |
8.5 (2.6) |
320 |
250 |
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Cable/Rope Type: |
Steel Cable |
| Application: |
Private |
| Brand: |
Warrior |
| Pulling Force max [lbs]: |
9500 |
| Voltage [V]: |
12 |
| Gear Transmission: |
196:1 |
| Rope Diameter [mm]: |
9,2 |
| Rope Length [m]: |
26 |
| Drum Size [Dia x L in mm]: |
63 x 223 |
| Length [mm]: |
559 |
| Width [mm]: |
160 |
| Height [mm]: |
248 |
| Weight [kg]: |
40 |
| Mount-Pattern [mm]: |
254 x 114,3 |
| max Amp [A]: |
320 |
| Linespeed max [ft/min]: |
33,4 |
| Linespeed min [ft/min]: |
7,2 |
| Drive Type: |
electric |
| Shipping weight: |
43,00 kg
|
| Item weight: |
42,00 kg
|
| Dimensions
( Length × Width × Height ):
|
55,90 × 16,00 × 24,80 cm |
