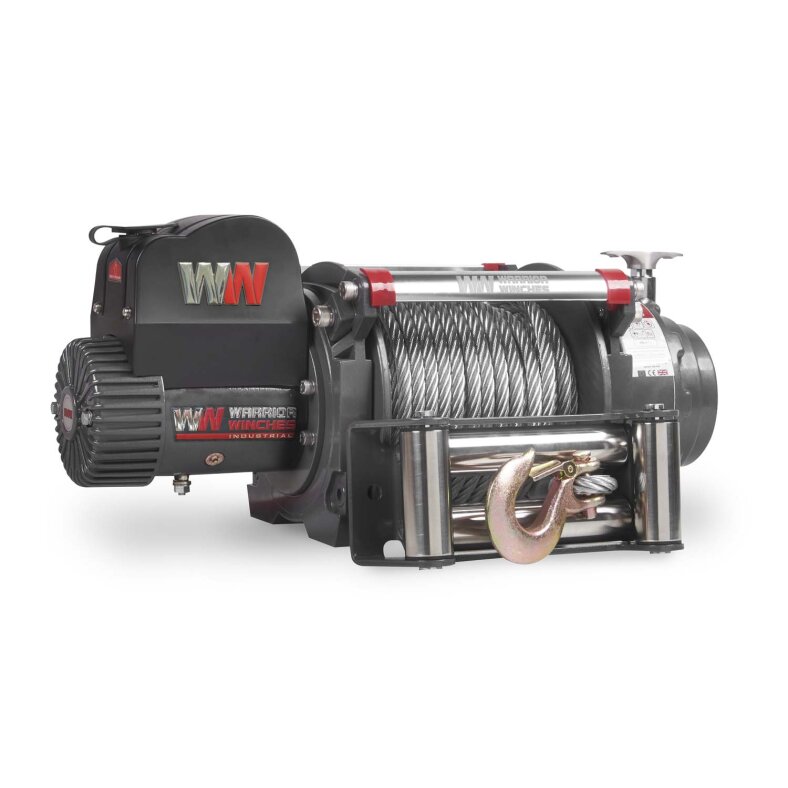

Warrior 6000EN Electric Winch with Steel Cable
Designed and developed for the professional operator, the EN series winches are of the highest quality, meeting the requirements of EN 14492:1 and fitting seamlessly into an installation solution for any job.
With a wire rope to drum ratio of 10:1, it also benefits from double hole rope fittings. The 2160 N/mm2 rope itself is rated 2:1 to ensure strength and quality.
Built to last, like all Warrior winches, the 6000EN is robust and hard wearing. Reinforced with fully sealed stainless steel cable guides and fittings for reliable performance in all conditions.
All this with a 6,000kg (13,227lb) pulling force and either a 12V or 24V high performance motor – you are guaranteed to enjoy high quality, reliable performance.
Standard Features:
? Pulling Force : 6,000kg (13,227lb)
? Rope : 12mm x 26.5m steel rope
? Motor : 12V or 24V
? Gearbox : Freewheel clutch – Allows manual unwinding of the cable
Accessories:
? Wired Hand Controller : 3.8m Remote Control
? Wireless Controller : Available as an optional extra
? Mounting Plate : Available as an optional extra
? Roller Fairlead : Heavy-duty stainless steel
? Mounting Bolts : Included for standard installations
? 1.5m Heavy-Duty Battery Cable (Must be extended depending on application)
? User Manual
Other Information:
? Dimensions : 610mm L x 216mm D x 254mm H
? Mounting Bolt Pattern : 254 x 114.3mm
? Approximate Shipping Weight : 73.5 kg
? Rope Pull - No Load : 19.4 m/min (40 amps)
? Rope Pull - Full Load : 5.2 m/min (210 amps)
While every effort has been made to ensure the accuracy of the information on this product, in the interest of technical improvement, this specification is subject to change without notice.
| Layer of Rope/Cable |
Line Pull: lbs(kgs) |
| 1 |
13228 (6000) |
| 2 |
11111 (5040) |
| 3 |
9579 (4345) |
| 4 |
8417 (3818) |
Line Pull
lbs (kgs) |
Line Speed 12v
ft/min (m/min) |
Line Speed 24v
ft/min (m/min) |
Amp Draw (A)
12v |
Amp Draw (A)
24v |
| 0 |
18.0 (5.5) |
19.4 (5.9) |
90 |
40 |
| 4409 (2000) |
8.9 (2.7) |
9.2 (2.8) |
200 |
90 |
| 8818 (4000) |
6.2 (1.9) |
6.9 (2.1) |
295 |
150 |
| 13228 (6000) |
4.6 (1.4) |
5.2 (1.6) |
400 |
210 |
