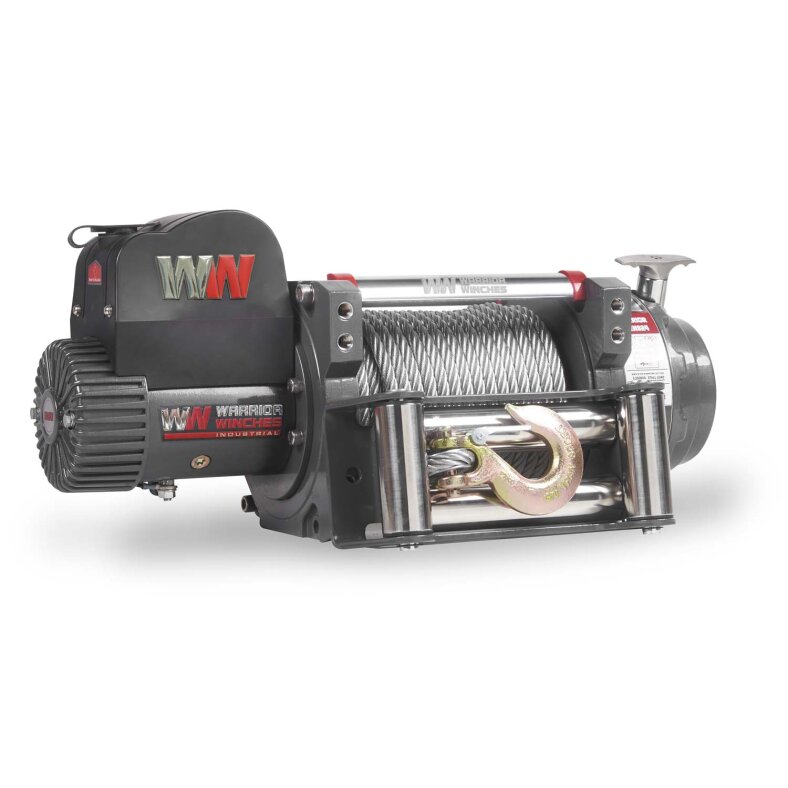

Warrior 5250EN Electric Winch with Steel Cable
Designed and developed for the professional operator, the EN series winches are of the highest quality, meeting the requirements of EN 14492:1 and fitting seamlessly into an installation solution for any job.
With a 10:1 wire rope to drum ratio, it also benefits from double hole rope fittings. The 2160 N/mm2 rope itself is rated 2:1 to ensure strength and quality.
Built to last, like all Warrior winches, the 5250EN is robust and hard wearing. Reinforced with fully sealed stainless steel cable guides and fittings for reliable performance in all conditions.
All this with a line capacity of 11574 lb and either a 12V or 24V high performance motor - you are guaranteed to enjoy high quality, reliable performance.
Standard Features:
? Pulling Capacity: 11574 lbs (5250 kg)
? Rope : 11mm x 21m (0.43 in. x 69 ft)
? Motor : 12V or 24V
? Gearbox : Freewheel clutch – Allows manual unwinding of cable
Accessories:
? Wired Hand Control : 3.8m remote control
? Wireless Control : Available as an optional extra
? Mounting Plate : Available as an optional extra
? Roller Fairlead : Robust stainless steel
? Fixing Screws : Included for standard installations
? 1.5m heavy-duty battery cable (Must be extended depending on application)
? User Manual
Other Information:
? Dimensions : 610 x 218 x 272mm
? Mounting bolt pattern : 254 x 114.3mm
? Approximate shipping weight : 60kg
? Rope pull - no load : 14.4m/min (80 amps)
? Rope pull - full load : 4.9m/min (280 amps)
While every effort has been made to ensure the accuracy of the information on this product, in the interest of technical improvement this specification is subject to change without notice.
| Layer of Rope/Cable |
Line Pull: lbs(kgs) |
| 1 |
11574 (5250) |
| 2 |
9352 (4242) |
| 3 |
7848 (3560) |
Line Pull
lbs (kgs) |
Line Speed 12v
ft/min (m/min) |
Line Speed 24v
ft/min (m/min) |
Amp Draw (A)
12v |
Amp Draw (A)
24v |
| 0 |
14.4 (4.4) |
13.1 (4) |
80 |
70 |
| 2205 (1000) |
8.5 (2.6) |
9.1 (2.8) |
130 |
78 |
| 4409 (2000) |
6.9 (2.1) |
7.2 (2.2) |
180 |
108 |
| 11574 (5250) |
4.9 (1.5) |
5.2 (1.6) |
350 |
180 |
