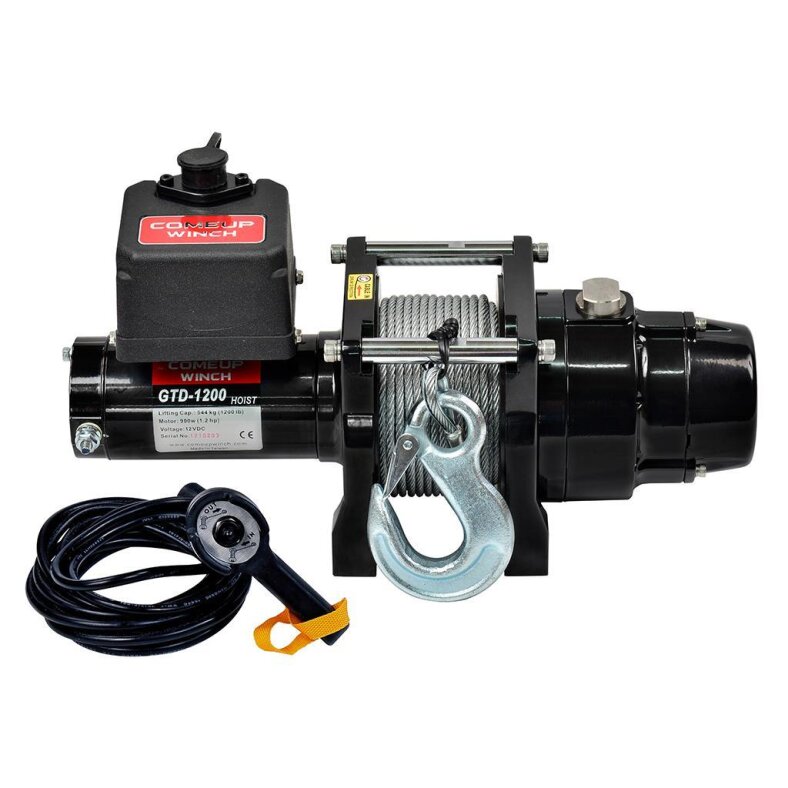

ComeUp hoisting winch 544 kg gtd1200 12v

ComeUp hoisting winch 544 kg gtd1200 12v

SKU: CU-GTD1200-12V
Category: Hoist Winches

809,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

piece

Specifications/part numbers

Rated stroke: 544 kg / 1200 lb
Lifting speed (1st rope layer):
12v : 7.4 mpm / 24.3 fpm 30a without load
5.5 mpm / 18.0 fpm 130a at full load
Motor: 900 w / 1.2 ps 12/24v permanent magnet
Gear ratio: 3-stage planetary gear 216:1
Brake: Mechanical spring-applied and permanent motor dynamic brakes together
Hoist construction: Aluminum die case and drum
drum size: 89 x 73 mm (3.5" x 2.9")
Control: Remote control with 5 m (17') cable
Rope type: Galvanized a7 x 19
Rope size: 4.8 mm x 18.3 m (3/16" x 60')
Mounting bolt hole circle: 114 x 101.6 mm (4.5" x 4")
Hoist weight (incl. rope): 15.3 kg / 33.7 lb
Gross weight: 20.2 kg / 44.5 lb
Packaging Dimension, (l x d x h): 504 x 214 x 363 mm (19.8" x 8.4" x 14.3")
Standard Conformance:
- CE Machinery Directive 2006/42/eg
- CE EMC Directive 2004/108/EC
- ansi B30.5

Accessories:

Steel cable 4,8 mm x 18,3 m with hooks
relocatable control unit
Cable control: 5 m cable length

Lifting speed and power consumption

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Lift, kg / lb	Line Speed, mpm / fpm		Amp. Draw, A		Percentage Duty Cycle, Min / 10 min
Line Lift, kg / lb	12V	24V	12 V	24 V	Percentage Duty Cycle, Min / 10 min
No load	7.4 / 24.3	5.9 / 19.4	30	15	2.5
136 / 300	6.9 / 22.6	5.7 / 18.7	55	19	2.3
272 / 600	6.4 / 21.0	5.5 / 18.0	75	25	2.0
408 / 900	5.9 / 19.4	5.2 17.1	95	36	1.8
544 / 1,200	5.5 / 18.0	5.0 / 16.4	130	50	1.5

Line Lift and Rope Capacity:

Layer of wire Rope	Lift by Layer, kg / lb	Line Speed, mpm / fpm	total Rope on the Drum, m / ft
1^st	544 / 1,200	5.5 / 1.8	4.2 / 13.8
2^nd	494 / 1,089	6.1 / 19.9	8.8 / 28.9
3^rd	452 / 996	6.6 / 21.7	13.8 / 45.3
4^th	416 / 917	7.2 / 23.6	18.3 / 60

Protection classes:

Motor: IP66
Relay and contacts: IP68
Control box: IP44

NOTe:

1. All data is based on the 1st layer of rope. With each layer unwound, the lifting force increases by 10%
2. Use a pulley for double pull to increase lifting capacity by approx. 85
3. Lifting capacities are based on one lifting load. 15% is allowed for friction (specific applications may vary)
4. The steel cable is not covered under warranty.

warning
Winches are not designed for lifting or moving people.
The specified lifting capacity is based on the first layer of rope on the drum.
When uncoiling the rope, 5 wraps should always remain on the drum.

Shipping weight:	20,20 kg
Item weight:	15,30 kg
Dimensions ( Length × Width × Height ):	38,60 × 15,90 × 16,20 cm
