Worm gear winches are suitable for applications where safe, controlled pulling of the load is required. The drum stops automatically as soon as cranking stops. This means that there is no freewheeling mode and no special mechanism is required to stop the roller gear. This safety feature makes worm gear winches ideal for applications such as lifting boats on davits and raising and lowering retractable keels on sailboats. Worm gear winches do not require a minimum load to operate.
All Dutton-Lainson worm gear winches are suitable for versatile pulling and lifting applications.
They are not to be used as a hoist for lifting, holding or carrying people, or for carrying loads over areas where people may be present.
Worm gear winches are required for applications that require safe, controlled movement of loads. They hold your load precisely in position - automatically. There is no freewheeling mode, no special mechanism is required to stop gear movement, and they do not require a minimum load to operate. Features include:
- Laminated high-carbon steel gears for longer life
- All gears are heat treated to increase strength.
- Permanently lubricated bearings on drive shafts are maintenance free
- Non-loop drive models feature a rugged steel handle with ergonomically designed grip
- Rigid, welded roller construction for added strength
- Load-matched gear ratios for easier cranking
- All coated parts are galvanized with TUFFPLATE®.
- Slotted mounting holes for easy installation
- Stamped and reinforced heavy gauge steel bases for added strength
Winch patents
The reversible pawl on the dl1402-dl3200 and DLx1200-DLx2600FC pulling winches is protected by U.S. patent 6,116,580 and Canadian patent 2378538.
dl1402asc is protected by U.S. patent d427,408, German patent 40001197.2, Danish patent mr2000 00867 and French patent 00 0665.
Details of this model:

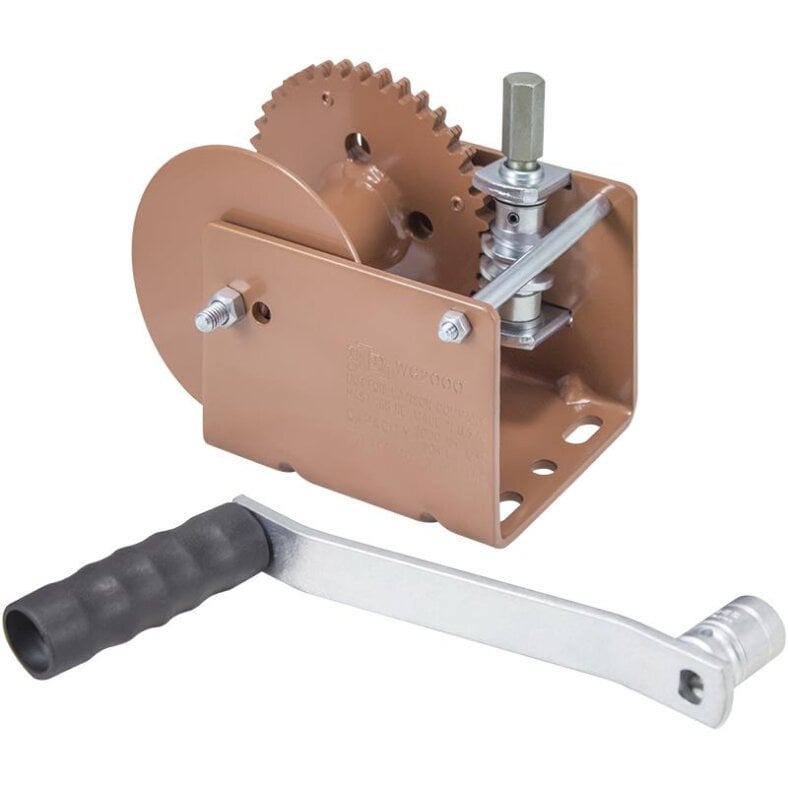

2000 lb (907 kg) worm gear winch with 5/8 in. hex drive.
Included is a hand crank that can be easily removed without tools.
The winch can also be operated by cordless screwdriver or drill in conjunction with a 16mm socket wrench.
The winch can only be operated with a rope (not included).
Make sure to grease the system regularly.
Technical data:
Lifting capacity: 908 kg
Drum capacity (steel cable) max:
Smaller or larger rope diameters are not recommended.
Reduction ratio: 40:1
Crank length: 178mm
Drum diameter: 38.1mm
Complies with Machinery Directive 2006/42/EC
Illustrative video:
The specified traction capacity is based on the direct rope pull on the first rope layer of the drum. The capacity is reduced by depending on the number of rope layers on the drum
The drum capacity depends on the rope diameter. (Rope not included.) Ropes listed may be too large for some applications.
Tensile load capacity for different gradients in kg
Level surface - 9.072 kg
- 5% - 6.056 kg
- 10% - 4.559 kg
- 20% - 3.084 kg
- 30% - 2.368 kg
- 50% - 1.690 kg
- 70% - 1.384 kg
- 90% - 1.221 kg
- Nominal load capacity: 907 kg
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
5,00 kg
|
| Item weight: |
4,60 kg
|
