Electric hoisting winch with cable remote control, radio remote control, overload protection 300kg
This professional hoisting cable winch has been specially developed for lifting loads. It meets the highest requirements, according to DIN en 14492-2, The robust plastic rope has been calculated with a safety factor of more than seven times. It is a special rope with high-quality synthetic fibers, which makes it even stronger than a steel rope with the same rope diameter. Due to its low surface tension, the synthetic rope is ideally suited for lifting loads, as it does not develop any twist, unlike the steep rope, and the load thus rotates much less in the air.
As standard, this winch is equipped with a professional cable remote control with emergency stop (cable length 5 meters), as well as two additional radio remote controls with a range of up to 40 meters. If you should lose a remote control or the battery of a hand transmitter is empty, you always have a reserve control.
Even in the event of a power failure, the load remains safely in the air. Due to the electrical input and output of the rope, you can perform the desired lifting work safely and reliably. The compact design of the winch makes it ideal for lifting loads and for loading and unloading in tight spaces (car, garage, trailer, workshop, etc.). Also ideal for loading and unloading a rear carrier or spare wheel.
State-of-the-art technology such as the highly efficient and powerful motor ensure high tractive force with nevertheless low power consumption. The separate relay box is equipped with long power cables so that the winch can be installed separately from the control system even if required. All cables are additionally insulated and shielded. The included overload protection provides additional safety during operation. This hoist is also ideal for outdoor use due to the protection class ip67.
Standard features:
-
Lifting capacity: 300kg (on the outermost, weakest rope layer)
-
Rope: 14m length Ø5mm synthetic rope with load hook
-
Motor: 24v: Input: 2.8kW / Power: 1.2kW
-
Gear ratio: 172:1
-
Protection class: ip67
Other information:
- Dimensions (l x w x h): 391mm x 126mm x 128mm
- Hole pattern/drill pattern: 159mm x 96mm (4xM8)
- Drum size Ø63mm x 122mm
- Weight: 17kg
Lifting force and rope capacity per layer:
Rope layer
|
Lifting force
kg |
Rope capacity
m |
|
|
|
1 |
400 |
5.3 |
|
|
|
| 2 |
350 |
11.3 |
|
|
|
| |
|
|
|
|
|
| 3 |
300 |
14 |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| Lifting force |
|
Traction speed
|
|
Power consumption (A)
|
| kg |
|
m / min |
|
|
24 V |
| |
|
|
|
|
|
| |
|
|
|
|
|
| 400 |
|
3.9 |
|
|
25 |
| 300 |
|
4.1 |
|
|
28 |
| 350 |
|
4.3 |
|
|
30 |

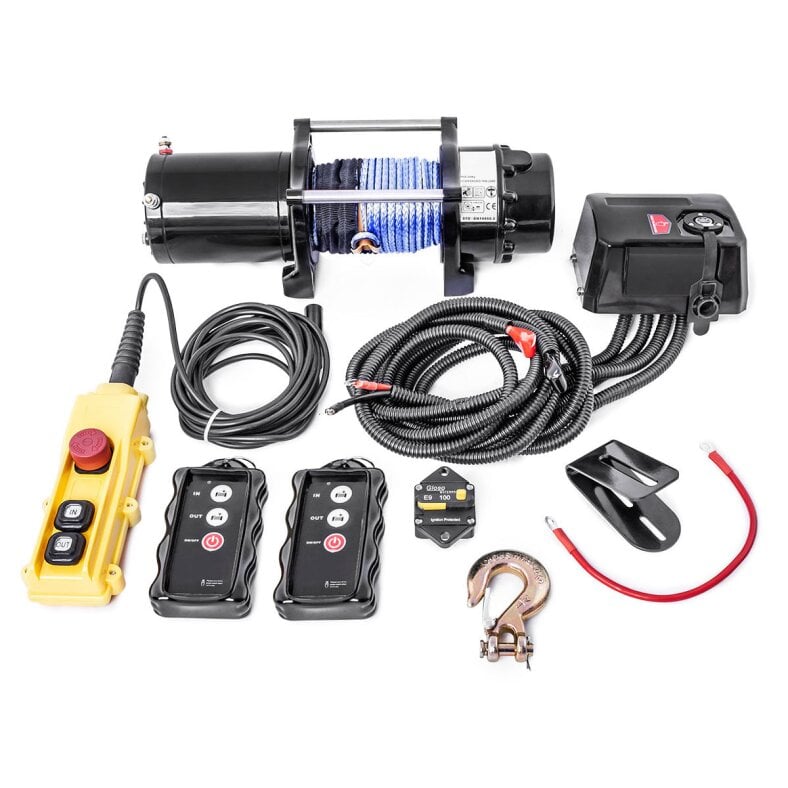

Scope of delivery:
- Cable remote control with emergency stop (5m cable length)
-
Radio remote control2x (range approx. 40m)
- Overload protection
-
mounting screws: 4-m8 included (for standard mounting)
-
battery cable: Length 1.5 m (need to be extended depending on application), cable cross section: 10 mm²
- operating instructions
Product safety information
Manufacturer information:
RUNVA
No.100 Wancang Road, 100
0 Jinpan Development Zone, Jinhua, Zhejiang, China
sales@runva.com
Responsible person:
RUNVA
No.100 Wancang Road, 100
0 Jinpan Development Zone, Jinhua, Zhejiang, China
sales@runva.com
