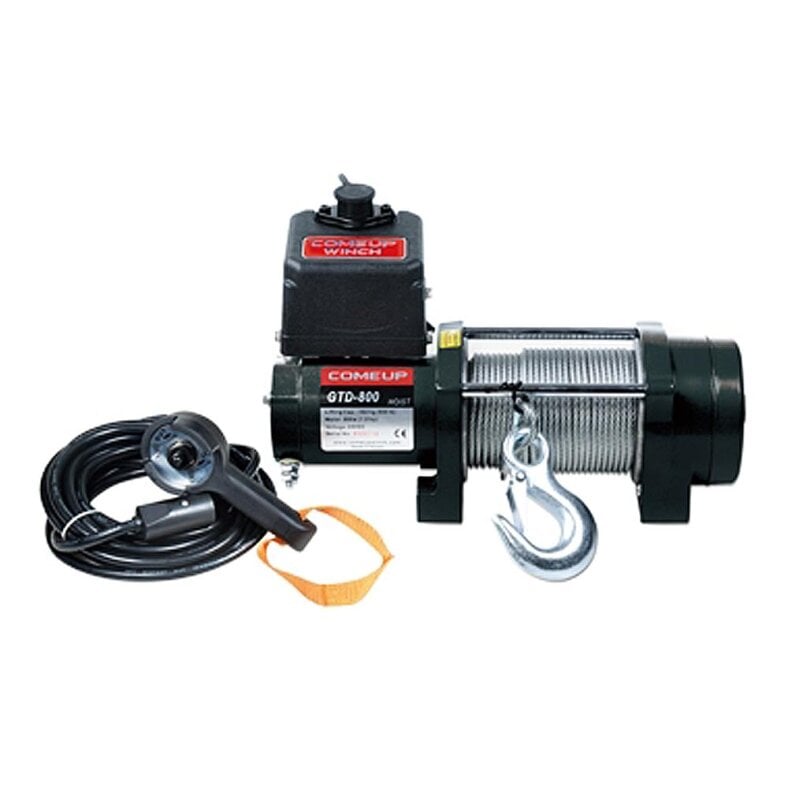

Specifications/part numbers
- Rated stroke: 362 kg / 800 lb
- Lifting speed (1st rope layer):
24v : 4.2 mpm / 13.8 fpm 15a without load
4.0 mpm / 13.1 fpm 35a at full load
- Motor: 800 w / 1.0 ps 12/24v permanent magnet
- Gear ratio: 3-stage planetary gear 191:1
- Brake: Mechanical spring-applied and permanent motor dynamic brakes together
- Hoist construction: Aluminum die case and drum
- drum size: 68 x 119 mm (2.7" x 4.7")
- Control: Remote control with 5 m (17') cable
- Rope type: Galvanized a7 x 19
- Rope size: 4.0 mm x 18.3 m (5/32" x 60')
- Mounting bolt hole circle: 168 x 76 mm (6.6" x 3")
- Hoist weight (incl. rope): 8.3 kg / 18.3 lb
- Gross weight: 12.2 kg / 26.9 lb
- Packaging Dimension, (l x d x h): 430 x 170 x 300 mm (16.9" x 6.7" x 11.8")
- Standard Conformity:
- CE Machinery Directive 2006/42/eg
- CE EMC Directive 2004/108/EC
- ansi B30.5
Accessories:
- Steel cable 4 mm x 18.3 m with hooks
- relocatable control unit
- Cable control: 5 m cable length
Lifting speed and power consumption
| Lifting force (kg) |
|
Lifting speed mpm |
Current consumption A |
Percentage duty cycle,
Min / 10 min |
| |
|
|
|
|
| without load |
|
4.2 |
15 |
3.0 |
| 184 |
|
4.1 |
25 |
2.0 |
| 362 |
|
4.0 |
35 |
1.5 |
Lifting force and rope capacity
| Rope layer |
|
Lifting capacity per rope layer |
Pulling speed mpm |
tOtAL rope on drum m |
| |
|
|
|
|
| 1 |
|
362 |
3.2 |
6.2 |
| 2 |
|
327 |
3.6 |
14.0 |
| 3 |
|
297 |
3.9 |
18.3 |
Protection classes:
Motor: IP66
Relay and contacts: IP68
Control box: IP44
NOTe:
1. All data is based on the 1st layer of rope. With each layer unwound, the lifting force increases by 10%
2. Use a pulley for double pull to increase lifting capacity by approx. 85
3. Lifting capacities are based on one lifting load. 15% is allowed for friction (specific applications may vary)
warning
Winches are not designed for lifting or moving people.
Stated lifting capacities are based on the first layer of rope on the drum.
When uncoiling the rope, 5 wraps should always remain on the drum.
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Lifting speed: |
1 - 15 m / min |
| Application: |
Private |
| Max. Lifting height: |
21 - 30 m |
| Radio remote control including: |
No |
| Lifting force (without deflection): |
251 - 500 kg |
| Voltage: |
24 V |
| Shipping weight: |
12,20 kg
|
| Item weight: |
8,30 kg
|
| Dimensions
( Length × Width × Height ):
|
34,30 × 11,50 × 12,00 cm |
