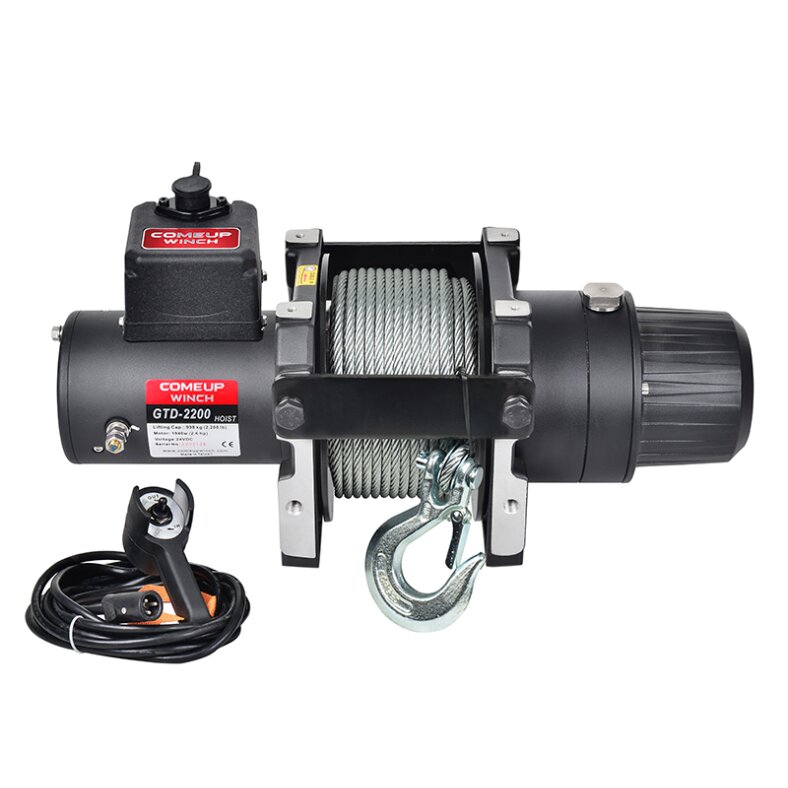

ComeUp hoisting winch 988kg gtd2200 24v

SKU: CU-GTD2200-12V
Category: Hoist Winches

1.368,50 €

incl. 19% VAT , plus

Manufacturers recommended retail price: 1.799,99 €

(Save 23.97%, i.e. 431,49 €)

Available immediately
Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

piece

Specifications/part numbers

Rated stroke: 988 kg / 2200 lb
Lifting speed (1st rope layer):
24v : 4.5 mpm / 14.8 fpm 25a without load
5.0 mpm / 16.4 fpm 50a at full load
Motor: 2830 w / 3.8 ps 24v permanent magnet
Transmission: 3-stage planetary gear 211:1
Brake: Mechanical spring-applied and permanent motor dynamic brakes together
Hoist construction: Aluminum die case and drum
drum size: 108 x 105 mm
Control: Remote control with 5 m (17') cable
Rope type: Galvanized a7 x 19
Rope size: 6.4 mm x 30 m
Pitch circle of mounting screws: 114.3 x 152 mm and 165.1 x 152 mm
Hoist weight (incl. rope): 33.9 kg
Gross weight: 39.5 kg
Packaging dimension, (l x d x H): 518 x 341 x 240 mm
Standard conformity:
- CE Machinery Directive 2006/42/eg
- CE EMC Directive 2004/108/EC
- ansi B30.5

Accessories:

Steel cable 6,4 mm x 30 m with hooks
relocatable control unit
Cable control: 5 m cable length

Lifting speed and power consumption

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Lift, kg / lb	Line Speed, mpm / fpm		Amp. Draw, A		Percentage Duty Cycle, Min / 10 min
Line Lift, kg / lb	12V	24v	12 V	24 V	Percentage Duty Cycle, Min / 10 min
No load	5.3 / 17.4	5.8 / 19.0	25	18	Cont.
181 / 400	5.2 / 17.1	5.7 / 18.7	50	25	8.0
362 / 800	5.1 / 16.7	5..6 / 18.4	75	35	6.0
544 / 1200	4.8 / 15.7	5.5 / 18.0	95	55	4.0
998 / 2200	4.2 / 13.8	5.0 / 16.4	135	90	2.0

Line Lift and Rope Capacity:

Layer of wire Rope	Lift by Layer, kg / lb	Line Speed, mpm / fpm	total Rope on the Drum, m / ft
1^st	988 / 2,200	5.0 / 16.4	5.6 / 18.4
2^nd	898 / 1,980	5.5 / 18.0	11.8 / 38.7
3^rd	816 / 1,799	6.1 / 20.0	18.7 / 61.4
4^th	747 / 1,647	6.6 / 21.6	26.2 / 86

Protection classes:

Motor: IP66
Relay and contacts: IP68
Control box: IP44

NOTe:

1. All data is based on the 1st layer of rope. With each layer unwound, the lifting force increases by 10%
2. Use a pulley for double pull to increase lifting capacity by approx. 85
3. Lifting capacities are based on one lifting load. 15% is allowed for friction (specific applications may vary)
4. The steel cable is not covered under warranty.

warning
Winches are not designed for lifting or moving people.
The specified lifting capacity is based on the first layer of rope on the drum.
When uncoiling the rope, 5 wraps should always remain on the drum.

Lifting force (without deflection):	501 - 1000 kg
Max. Lifting height:	21 - 30 m
Lifting speed:	1 - 15 m / min
Voltage:	24 V
Application:	Private
Radio remote control including:	No
Shipping weight:	41,00 kg
Item weight:	39,50 kg
Dimensions ( Length × Width × Height ):	49,96 × 22,75 × 20,40 cm
