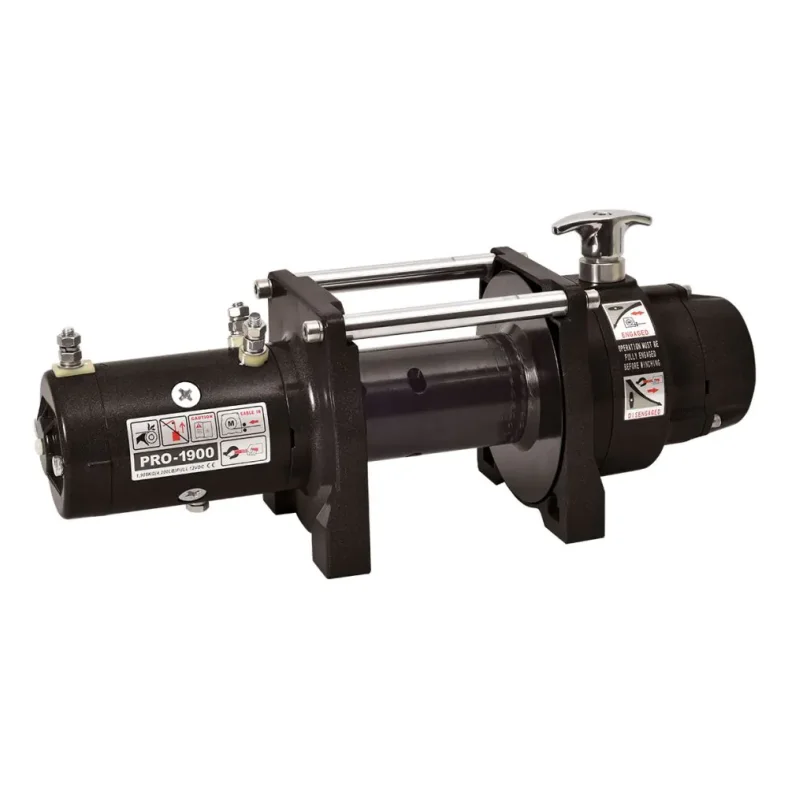

Electric winch 24V ComeUp PRO 1900 / NAV-4200
The ComeUp PRO 1900 electric cable winch has a powerful series-wound motor and a three-stage planetary gearbox. The cable winch is equipped with an automatic load holding brake and a freewheel clutch for pulling off the cable by hand. The waterproof sealed relays for high electrical currents enable a longer duty cycle. The electric wire rope winch complies with the European standard EN 14492-1 and SAE J706.
The PRO 1900 is used for commercial recovery of rolling loads.
The cable winch is identical in construction to the well-known COMEUP NAV-4200
Technical data:
Voltage [V] 24
Max. Pulling force [t] 1.9
Min. pulling force [t] 1.3
Manual freewheel
Current consumption at full load [A] 120
Rope speed [m/min] 1.6 - 8.2
Number of fixing holes 4
Hole pattern [mm] 152 x 114
Width [mm] 460
Depth [mm] 159
Height [mm] 177
Weight [kg] 17
The scope of delivery includes:
- a cable remote control (5 m)
- one roller window
- a relay box
- a battery cable
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
18,00 kg
|
| Item weight: |
17,00 kg
|
| Dimensions
( Length × Width × Height ):
|
460,00 × 15,90 × 18,90 cm |
