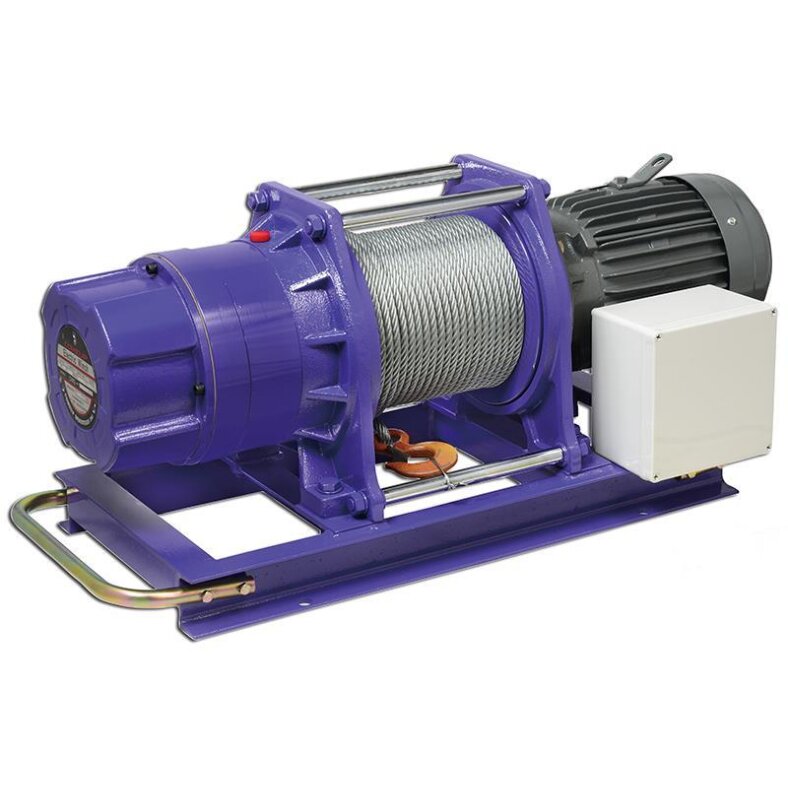

ComeUp CWG-Series industrial hoisting winch cable winch hoist 400v 900 kg

ComeUp CWG-Series industrial hoisting winch cable winch hoist 400v 900 kg

SKU: CU-CWG-30375
HAN: ComeUp CWG
Category: Hoist Winches

load capacity900 kg on the top layer of the wire rope
Lifting speed:
- Variant a: 13 - 20,6 m/min
- Variant b : 8,5 - 13,5 m/min
Power source: 3 phases, 380-440 V
Motor power IP54:
- Variant a: 3.8 kw x 4-pole induction brake motor
- Variant b: 2,2 kw x 6-pole induction brake motor
Gear ratio: 48:1
Maximum lifting height: 58 m
Braking methods: Electromagnetic
Wire rope: 10 mm x 60 m
drum length: 230 mm
drum diameter: 127 mm
Drum flange diameter275 mm
Fastening screw pattern: 500 mm x 370 mm
Net weight, kg (standard version): 185 kg
Total weight: 225 kg
Housing dimensions (l x d x H): 974 x 400 x 445 mm
Carton dimensions (l x d x H): 1.140 x 590 x 620 mm

Modell:

4.516,05 €

incl. 19% VAT , plus

Manufacturers recommended retail price: 4.999,99 €

(Save 9.68%, i.e. 483,94 €)

Choose tax zone / country of delivery

Available immediately
Delivery time: 7 - 9 Workdays (DE - int. shipments may differ)

piece

This bundle is now in the shopping cart.

Discount with Bundle:

This bundle promotion cannot be combined with other coupon promotions.

ComeUp CWG-Series industrial hoisting winch cable winch hoist 400v 900 kg

Radio unit for hoisting winch cp500t, cwg30075 400v

Your Savings: 145,83 €

CU-CWG-30375

Lightweight and compact design is ideal for easy installation.
Electromagnetic spring-applied brake
Heavy-duty ball bearing with high efficiency on all running surfaces
Planetary gearbox for maximum mechanical efficiency
Cast steel foot mounts
Fabricated steel drum
Supplied ready for mounting on steel base plate
Rated load limiter limits motor drive power to prevent winch overloading
Quiet running
Low voltage control unit is standard
Emergency stop function switch is available upon request

Specifications

load capacity900 kg on the top layer of the wire rope
Lifting speed:
- Variant a: 13 - 20,6 m/min
- Variant b : 8,5 - 13,5 m/min
Power source: 3 phases, 380-440 V
Motor power IP54:
- Variant a: 3.8 kw x 4-pole induction brake motor
- Variant b: 2,2 kw x 6-pole induction brake motor
Gear ratio: 48:1
Maximum lifting height: 58 m
Braking methods: Electromagnetic
Wire rope: 10 mm x 60 m
drum length: 230 mm
drum diameter: 127 mm
Drum flange diameter275 mm
Fastening screw pattern: 500 mm x 370 mm
Net weight, kg (standard version): 185 kg
Total weight: 225 kg
Housing dimensions (l x d x H): 974 x 400 x 445 mm
Carton dimensions (l x d x H): 1.140 x 590 x 620 mm

The above performance specifications are based on a 50 Hz supply. (60 Hz motor available as an option, resulting in a 20% reduction in lifting forces and a 20% increase in speed)

Lifting force, lifting speed and rope capacity:

Rope layer	lifting capacity, kg	Lifting speed, m/min at 50 Hz		Total rope on drum, m
Rope layer	lifting capacity, kg	A	B	Total rope on drum, m
1.	1426	13	8,5	10
2.	1244	14,9	9,8	20
3.	1103	16,8	11,0	33
4.	991	18,7	12,2	46
5.	900	20,6	13,5	60

Notice: The above performance specifications are based on a 50 Hz supply.

Pulling load for different gradients in kg:

Model	Level Surface	Gradient % Gradients / Angles in degrees
Model	Level Surface	10% 60°	20% 11°	40% 25°	60% 31°	80% 39°
CWG-30375	6300	3600	2670	1770	1400	1200

Hint:

1. All ratings are based on the top layer. For each layer reduction on the drum, the tensile force is increased by 10%.
2. Use a pulley for double line operation to increase pull capacity by approximately 85%.
3. Tensile capacities are based on a tensile load with 15% allowed for friction (specific applications may vary)

Warning:

The winch is not intended to be used in any way to move or lift people.
The rated capacity listed is based on the top layer of rope on the drum.
The rope wrap on the drum must remain 5 turns away from the drum.

Warranty:

Each new winch is warranted against defects in workmanship and materials for twelve months from the date of purchase.
WIRE ROPE ARE NOT INCLUDED IN THE WARRANTY.

Scope of delivery	Optional accessories
Wire rope 10 mm x 60 m with safety hooks Remote control, cpb-161 Switch cable 1.25 mm 2 x 3c x 3 m Pendant switch cpb-161 Low voltage control unit LV-320 Base plate	Remote control, PB-306 assembly (switch with emergency stop button)
