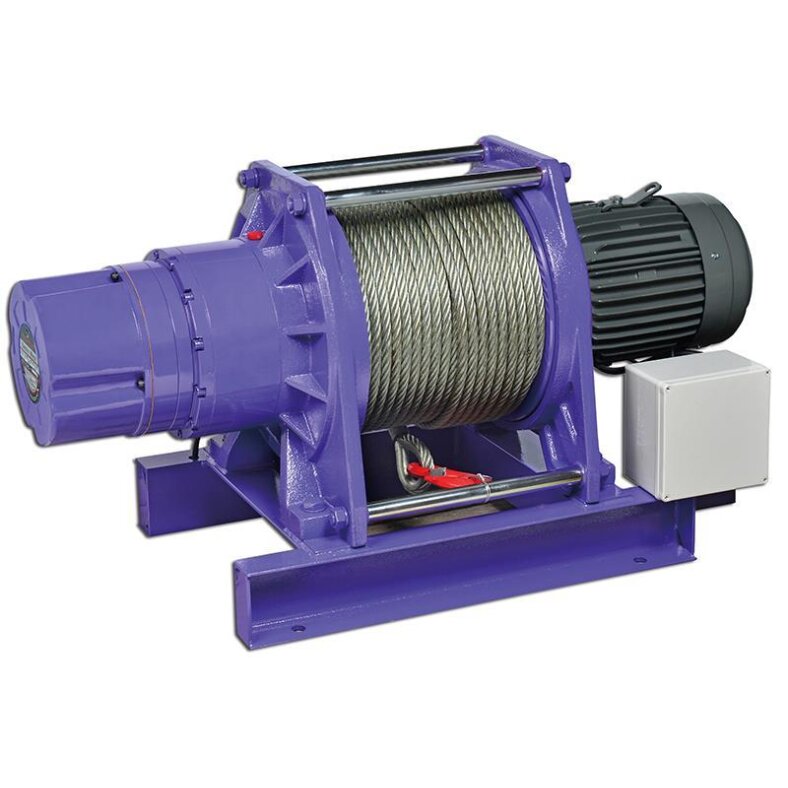

ComeUp CWG-Series industrial hoisting winch cable winch hoist 400v 2200 kg

ComeUp CWG-Series industrial hoisting winch cable winch hoist 400v 2200 kg

SKU: CU-CWG-30750
HAN: ComeUp CWG
Category: Hoist Winches

load capacity: 2200 kg on the top layer of the wire rope
Lifting speed:
- Variant a: 6.9 - 12.6 m/min
- Variant b: 4.5 - 8.3 m/min
Power source: 3 phases, 380-440 V
Motor power IP54:
- Variant a: 5.5 kW x 4-pole induction brake motor
- Variant b: 3.8 kW x 6-pole induction brake motor
Gear ratio: 127:1
Maximum lifting height: 97 m
Braking methods: Electromagnetic
Wire rope: 16 mm x 100 m
drum length: 312 mm
drum diameter: 178 mm
Drum flange diameter: Ø 410 mm
Fastening screw pattern: 600 mm x 499 mm
Net weight, kg (standard version): 400kg
Total weight: 445kg
Housing dimensions (l x d x H): 1246 x 565 x 658 mm
Box dimensions (l x d x H): 1390 x 710 x 830 mm

Modell:

8.186,05 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: 4 - 6 Workdays (DE - int. shipments may differ)

piece

CU-CWG-30750

Lightweight and compact design is ideal for easy installation.
Electromagnetic spring-applied brake, infallible
Heavy-duty ball bearing with high efficiency on all running surfaces
Planetary gearbox for highest mechanical efficiency
Cast steel foot mountings
Steel drum
Supplied on steel base plate
The drive power limiter of the motor, prevents overloading of the winch.
Smooth running
Low voltage control assist is standard
Emergency stop switch function is available on request

Specifications

load capacity: 2200 kg on the top layer of the wire rope
Lifting speed:
- Variant a: 6.9 - 12.6 m/min
- Variant b : 4.5 - 8.3 m/min
Power source: 3 phases, 380-440 V
Motor power IP54:
- Variant a: 5.5 kW x 4-pole induction brake motor
- Variant b: 3.8 kW x 6-pole induction brake motor
Gear ratio: 127:1
Maximum lifting height: 97 m
Braking methods: Electromagnetic
Wire rope: 16 mm x 100 m
drum length: 312 mm
drum diameter: 178 mm
Drum flange diameter: Ø 410 mm
Fastening screw pattern: 600 mm x 499 mm
Net weight, kg (standard version): 400kg
Total weight: 445kg
Housing dimensions (l x d x H): 1246 x 565 x 658 mm
Box dimensions (l x d x H): 1390 x 710 x 830 mm

The above power ratings are based on 50Hz. (60Hz motor available as an option, resulting in a reduction in load capacities of 20% and an increase in speed of 20%.

Lifting capacity, lifting speed and rope capacity:

Rope layer	lifting capacity, kg	Lifting speed, m/min at 50 Hz		Total rope on drum, m
Rope layer	lifting capacity, kg	A	B	Total rope on drum, m
1.	4014	6,9	4,5	11
2.	3446	8,1	5,3	24
3.	3019	9,2	6	39
4.	2686	10,4	6,8	56
5.	2419	11,5	7,5	75
6.	2200	12,6	8,3	100

Notice: The above performance specifications are based on a 50 Hz supply.

Pulling load for different gradients in kg:

Model	Level Surface	Gradient % Gradients / Angles in degrees
Model	Level Surface	10% 60°	20% 11°	40% 25°	60% 31°	80% 39°
CWG-30750	15400	8800	6500	4300	3400	3000

Hint:

1. All ratings are based on the top layer. For each layer reduction on the drum, the tensile force is increased by 10 %.
2. Use a pulley for double line operation to increase pull capacity by approximately 85%.
3. Tensile capacities are based on a tensile load with 15% allowed for friction (specific applications may vary)

Warning:

The winch is not intended to be used in any way to move or lift people.
The rated capacity listed is based on the top layer of rope on the drum.
The rope wrap on the drum must remain 5 turns away from the drum.

Warranty:

Each new winch is warranted against defects in workmanship and materials for twelve months from the date of purchase.
WIRE ROPE ARE NOT INCLUDED IN THE WARRANTY.

Scope of delivery	Optional accessories
Wire rope 16 mm x 100 m with safety hooks Remote control, cpb-161 Switch cable 1.25 mm 2 x 3c x 3 m Pendant switch cpb-161 Low voltage control unit LV-320 Base plate	Remote control, PB-306 assembly (switch with emergency stop button)
