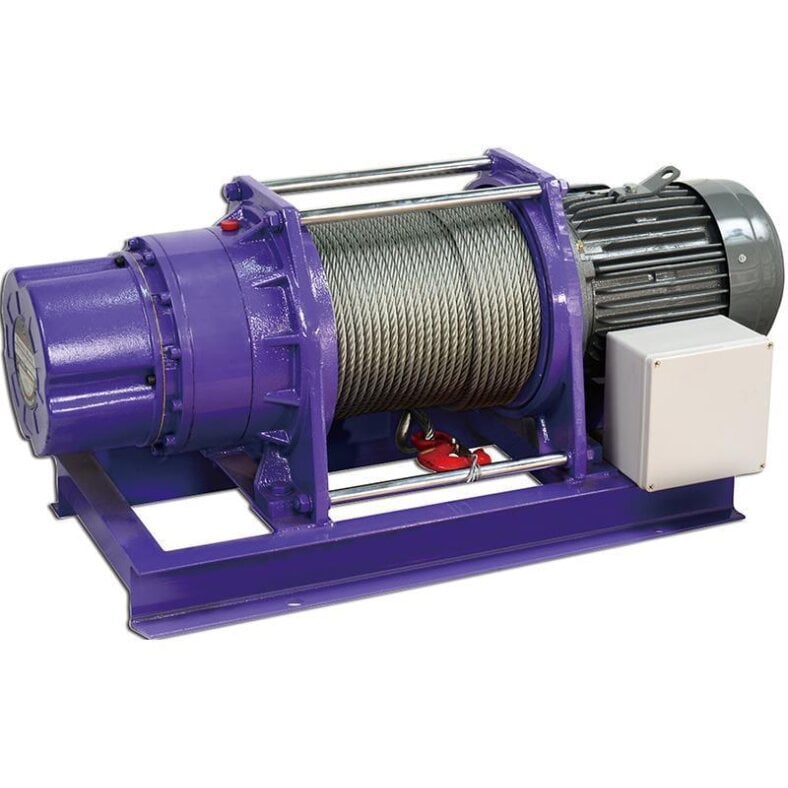

ComeUp CWG-Series industrial hoisting winch cable winch hoist 400v 1100 kg

ComeUp CWG-Series industrial hoisting winch cable winch hoist 400v 1100 kg

SKU: CU-CWG-30565
HAN: ComeUp CWG
Category: Hoist Winches

load capacity: 1100 kg on the top layer of the wire rope
Lifting speed:
- Variant a : 14 - 25 m/min
- Variant b : 9,2-16,4 m/min
Power source: 3 phases, 380-440 V
Motor power IP54:
- Variant a: 5.5 kW x 4-pole induction brake motor
- Variant b: 3.8 kW x 6-pole induction brake motor
Gear ratio: 50:1
Maximum lifting height: 97 m
Braking methods: Electromagnetic
Wire rope: 12 mm x 100 m
drum length: 312 mm
drum diameter: 140 mm
Drum flange diameter: Ø 320 mm
Fastening screw pattern: 620 mm x 425 mm
Net weight, kg (standard version): 250 kg
Total weight: 285 kg
Housing dimensions (l x d x H): 1.120 x 470 x 520 mm
Box dimensions (l x d x H): 1.290 x 650 x 680 mm

Modell:

5.890,50 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: ca. 3 months (DE - int. shipments may differ)

piece

CU-CWG-30565

Lightweight and compact design is ideal for easy installation.
Electromagnetic spring-applied brake, infallible
Heavy duty ball bearings, high efficiency on all running surfaces
Planetary gears for highest mechanical efficiency
Cast steel foot mountings
Steel drum
Delivery on steel base plate
The drive power limiter of the motor, prevents overloading of the winch.
Smooth running
Low voltage control assist is standard
Emergency stop switch function is available on request

Specifications

load capacity: 1100 kg on the top layer of the wire rope
Lifting speed:
- Variant a : 14 - 25 m/min
- Variant b : 9,2-16,4 m/min
Power source: 3 phases, 380-440 V
Motor power IP54:
- Variant a: 5.5 kW x 4-pole induction brake motor
- Variant b: 3.8 kW x 6-pole induction brake motor
Gear ratio: 50:1
Maximum lifting height: 97 m
Braking methods: Electromagnetic
Wire rope: 12 mm x 100 m
drum length: 312 mm
drum diameter: 140 mm
Drum flange diameter: Ø 320 mm
Fastening screw pattern: 620 mm x 425 mm
Net weight, kg (standard version): 250 kg
Total weight: 285 kg
Housing dimensions (l x d x H): 1.120 x 470 x 520 mm
Box dimensions (l x d x H): 1.290 x 650 x 680 mm

The above power ratings are based on 50Hz. (60Hz motor available as an option, resulting in a reduction in load capacities of 20% and an increase in speed of 20%.

Lifting capacity, lifting speed and rope capacity:

Rope layer	lifting capacity, kg	Lifting speed, m/min at 50 Hz		Total rope on drum, m
Rope layer	lifting capacity, kg	A	B	Total rope on drum, m
1.	1968	14	9,2	12
2.	1700	16,2	10,6	26
3.	1496	18,4	12,1	42
4.	1336	20,6	13,5	59
5.	1207	22,8	15	79
6.	1100	25	16,4	100

Notice: The above performance specifications are based on a 50 Hz supply.

Pulling load for different gradients in kg:

Model	Level Surface	Gradient % Gradients / Angles in degrees
Model	Level Surface	10% 60°	20% 11°	40% 25°	60% 31°	80% 39°
CWG-30565	7700	4400	3250	2150	1700	1600

Hint:

1. All ratings are based on the top layer. For each layer reduction on the drum, the tensile force is increased by 10%.
2. Use a pulley for double line operation to increase pull capacity by approximately 85%.
3. Tensile capacities are based on a tensile load with 15% allowed for friction (specific applications may vary)

Warning:

The winch is not intended to be used in any way to move or lift people.
The rated capacity listed is based on the top layer of rope on the drum.
The rope wrap on the drum must remain 5 turns away from the drum.

Warranty:

Each new winch is warranted against defects in workmanship and materials for twelve months from the date of purchase.
WIRE ROPE ARE NOT INCLUDED IN THE WARRANTY.

Scope of delivery	Optional accessories
Wire rope 12 mm x 100 m with safety hooks Remote control, cpb-161 Switch cable 1.25 mm 2 x 3c x 3 m Pendant switch cpb-161 Low voltage control unit LV-320 Base plate	Remote control, PB-306 assembly (switch with emergency stop button)
