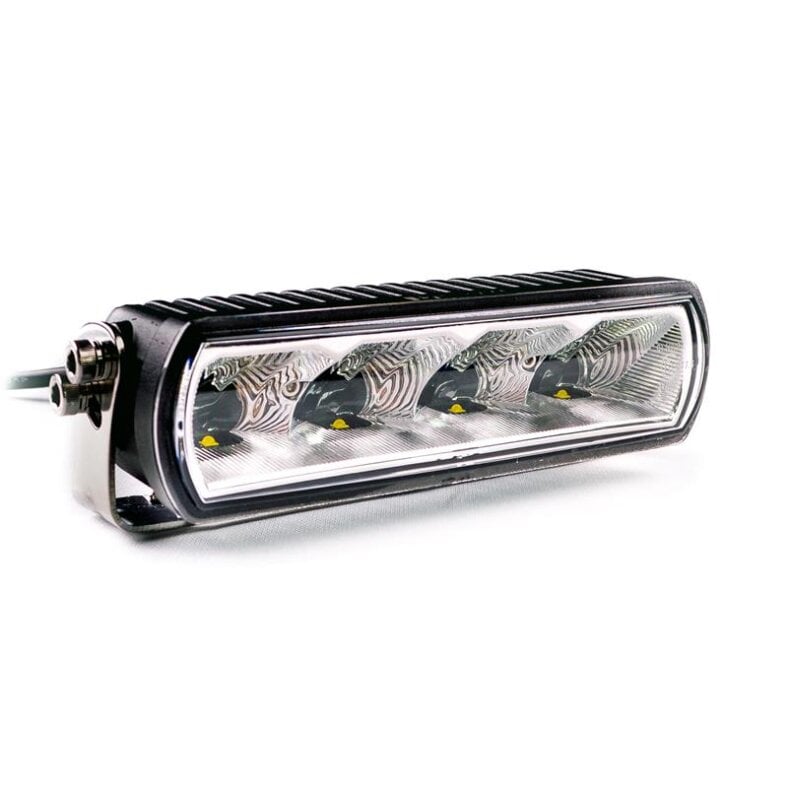

LTPRTZ® 20w cree led driving lamp 10-32v
TÜV approved | registration free (ece r112) | radio interference suppressed (ece R10) ece/sae light pattern for driving lamps
with condensation membrane
Technical specifications:
-
Power: 20w
-
effective lumens: 960 lm
-
leds: 4pcs 5w cree high power chips
-
Working temperature: -40°- + 80° c
-
Operating voltage: 10-32v
-
Light pattern: High beam pattern spot light 20°
-
Lifetime: 30.000 hours
-
Housing: Die-cast aluminum
-
Reflector: chrome colored
-
Lens: Polycarbonate lens
-
Color temperature: 6000-6500 Kelvin
-
Protection class: ip 68
-
Color: black
-
Mounting: lateral; swiveling; aluminum
-
Connection: 2-pin similar to Deutsch plug
-
Dimensions (LxWxH): 161 x 60 x 45 mm
Scope of delivery:
- led eb02-20e auxiliary driving lamp
- 2-pole cable outlet similar to Deutsch plug
- Mounting screws
- adjustable bracket stainless steel
Fields of application:
- Driving light for cars and trucks
- ATVandUTV
- Agricultural and forestry machinery
- Mining industry
- Off-road
Special features:
- Higher light efficiency due to light emitting from both sides.
- cree led chips provide higher uniformity in color temperature.
- Light beam pattern meets the high standards of EcE and sae
- ip68
- Pressure compensation valve
- Less than 5% lumen loss within 30,000 hours
- No electromagnetic interference with other electronic devices
- Overvoltage protection
STVO approval almost worldwide thanks to E-mark (reference number: 17.5)
- Approval granted for one headlamp type according to EcE regulation no. 112: Motor vehicle headlights for High beamwhich is equipped with incandescent lamps and / or led modules equipped is.
- Electromagnetic compatibility certified according to EcE R10.
