WARN XD9000i ce 12v 4080kg pulling force

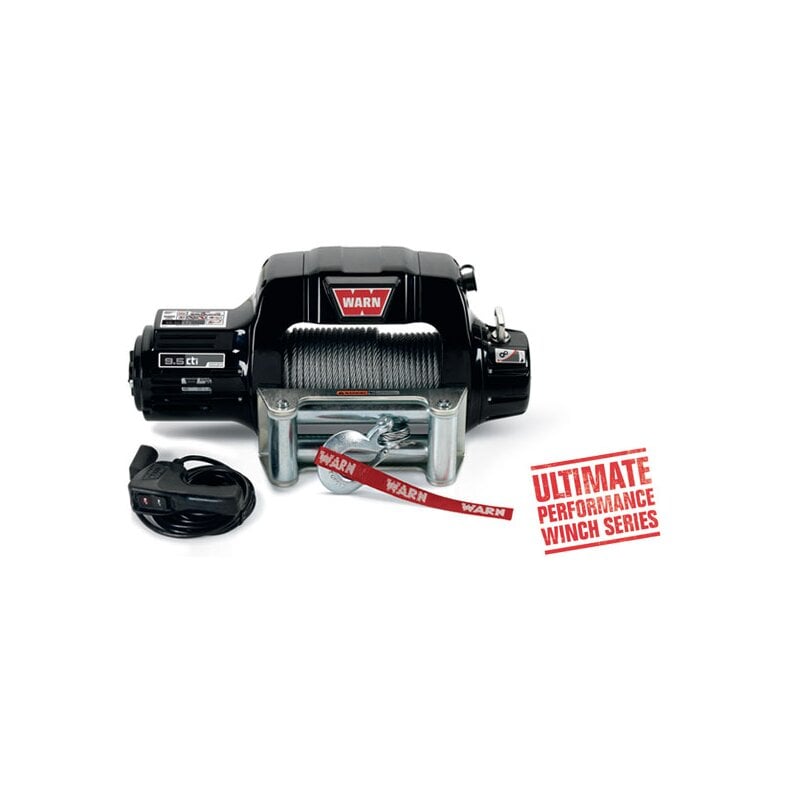

the 9.5cti is the latest winch in the WARN Ultimate Performance Series. A massive protective structure combined with sophisticated operator feedback deliver fast pull speeds and long duty cycles. The perfect winch for the serious off-roader.
The contactor features exceptional durability, extra long life and sealing to withstand any weather.
Engine mounted thermal sensor transmits temperature information to the control panel via lED display.
Specifications:
-
Winch model: 9.5cti
-
Rated pull: 9,500 lbs, (4310 kgs.) single pull
-
Motor: In-line, 12v
-
Electrical control: Contactor
-
Remote control: Remote switch with 3.7m cable length, lED display
-
Gearbox: 3-stage planetary gear
-
Gear ratio: 156:1
-
Clutch: Mechanical gear
-
Brake: Automatic mechanical conical
-
drum: Ø/length: 64mm/230mm
-
Net weight: 89 lbs. (36.3 kgs)
-
Rope: Steel l: 38m Ø: 8mm
-
Rope window: 4-way pulley rope window
-
Recommended battery: 650 cca minimum for recovery
-
Battery cable: 2 x 1.83m
-
paint: high gloss powder coating over undercoating
-
Winch dimensions: 587mm l x 160mm d x 264mm h
-
Mounting hole circle: 254mm x 114.3mm
