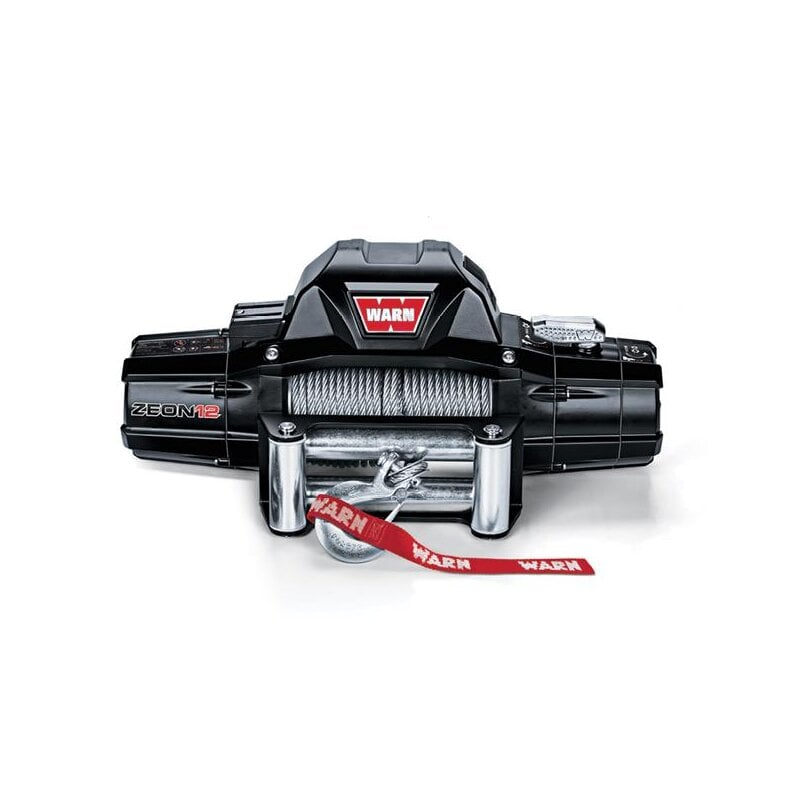

Winch warn zeon 12 12v 5.400kg pulling force
If you want to conquer the terrain, the zeon is the winch of your choice. Tough enough to tackle anything that gets in your way. Unbeatable design paired with maximum pulling power and capacity.
Specifications:
-
Winch Model: zeon12
-
Rated Pulling Force: 12,000 lbs, (5443 kgs.) single pull
-
Motor: In-line, 12v
-
Electrical control: Contactor
-
Remote control: Remote switch with 3.7m cable length
-
Gearbox: 3-stage planetary gear
-
Gear ratio: 216:1
-
Clutch: Mechanical gear
-
Brake: Automatic mechanical
-
drum: Ø/length: 80mm/229mm
-
Net weight: 98 lbs. (47 kgs)
-
Rope: Steel l: 24.38m Ø: 9.52mm
-
Rope window: 4-way pulley rope window
-
Recommended battery: 650 cca minimum for recovery
-
Battery cable: 2 x 1.83m
-
paint: Satin black powder coating
-
Winch dimensions: 615.9mm l x 181.6mm d x 199.02mm
-
Mounting hole circle: 254mm x 114.3mm
