Features of the brake winch:

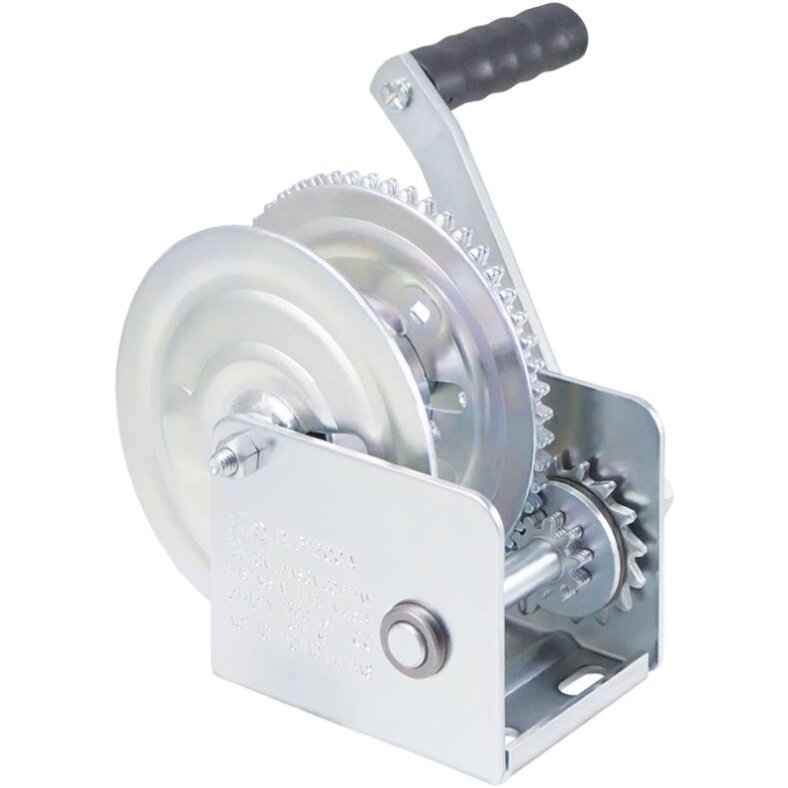

- Tested brake winch without gear cover
- Built-in load pressure brake holds the load in any position when lifting and lowering.
- Locking pawl with double spring for extra safety.
- Tested and approved by the technical committee for hoisting equipment of the industrial employers' liability insurance association.
Details of the manual rope winch
- Load capacity on 1st rope layer: 909 kg
- Minimum load: 80 kg
- Drum diameter ø: 64 mm
- Crank length: 238 mm
- Base plate: 18 x 13 cm
- Rope capacity ø (mm) x (m): 7 mm x 15 m
Gradient rate in kg
- 3° (6.000 kg)
- 6° (4.545 kg)
- 11° (3,090 kg)
- 17° (2,364 kg)
- 26° (1,636 kg)
- 35° (1,364 kg)
- Vertical (909 kg)
CAUTION:
All d-l brake winches are designed for general purpose pulling and lifting. They must not be used as hoists for lifting, carrying or transporting persons or for loads over areas where persons may be present.
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
7,50 kg
|
| Item weight: |
7,12 kg
|
