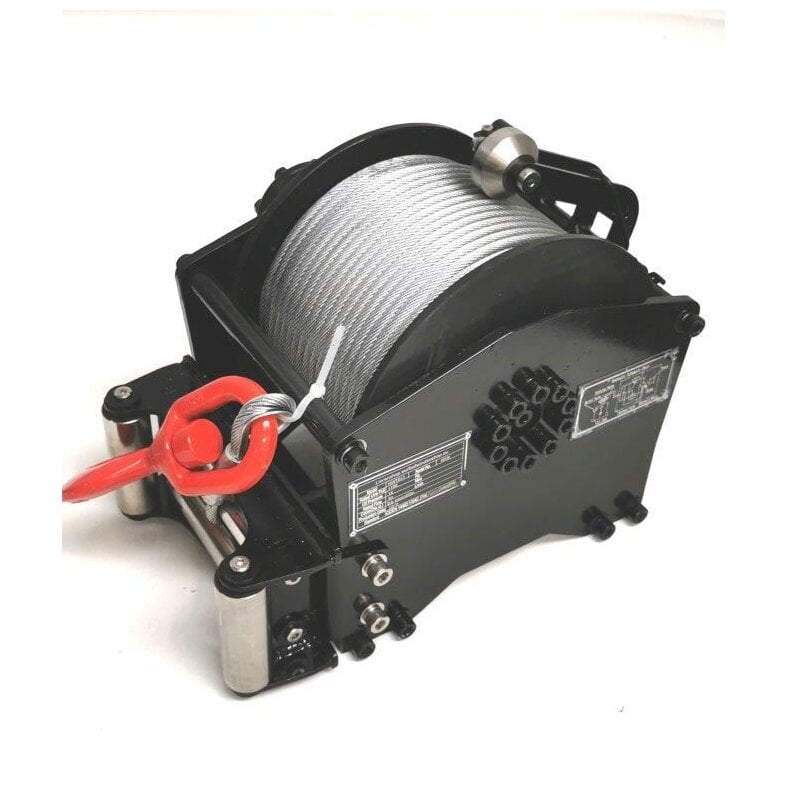

Hydraulic winch crane industry
- Rated pulling force 1100Kg
- Engine power 160ml/r
- Pressure 14Mpa
- Gear ratio 5,7 : 1
- Wire rope (diam. × l) Ø8.1mmx60m
- Drum size (diam. × l) Ø165mmx165mm
- Hole pattern of fixing screws 155mmx227mm 4-M16
- Overall dimensions (L× W× h) 343mmx388.5mmx298mm
- Dead weight 80kg
| Pressure |
14Mpa |
|
|
|
|
| Oil flow |
50L/min |
|
|
|
|
| Layer of wire rope |
1 |
2 |
3 |
4 |
5 |
| Rated line pull (kg) |
1506 |
1379 |
1271 |
1179 |
1100 |
| Line speed (m/min) |
26.6 |
29.1 |
31.6 |
34.1 |
36.6 |
| Total rope on drum(m) |
10 |
21 |
33 |
46 |
60 |
| Minimum lifting capacity |
1100 kg* |
*outer rope layer, lower rope layers have more lifting force |
|
|
|
| |
|
|
W towing |
kgf |
|
|
|
| Gradient in degrees |
Slope in percent |
Metal |
Road |
Gravel |
soft sand |
Mud |
Swamp/clay |
| 0 |
0 |
7333 |
6111 |
5500 |
5000 |
3438 |
2115 |
| 3 |
5 |
5238 |
4583 |
4231 |
3929 |
2895 |
1897 |
| 6 |
10 |
4231 |
3793 |
3548 |
3333 |
2558 |
1746 |
| 11 |
20 |
3143 |
2895 |
2750 |
2619 |
2115 |
1528 |
| 17 |
30 |
2444 |
2292 |
2200 |
2115 |
1774 |
1341 |
| 27 |
50 |
1864 |
1774 |
1719 |
1667 |
1447 |
1146 |
| 35 |
70 |
1507 |
1447 |
1410 |
1375 |
1222 |
|
| 45 |
100 |
|
Product safety information
Manufacturer information:
RUNVA
No.100 Wancang Road, 100
0 Jinpan Development Zone, Jinhua, Zhejiang, China
sales@runva.com
Responsible person:
RUNVA
No.100 Wancang Road, 100
0 Jinpan Development Zone, Jinhua, Zhejiang, China
sales@runva.com
| Item information |
Value |
| Shipping weight: |
90,00 kg
|
| Item weight: |
80,00 kg
|
| Dimensions
( Length × Width × Height ):
|
34,30 × 38,85 × 29,80 cm |
