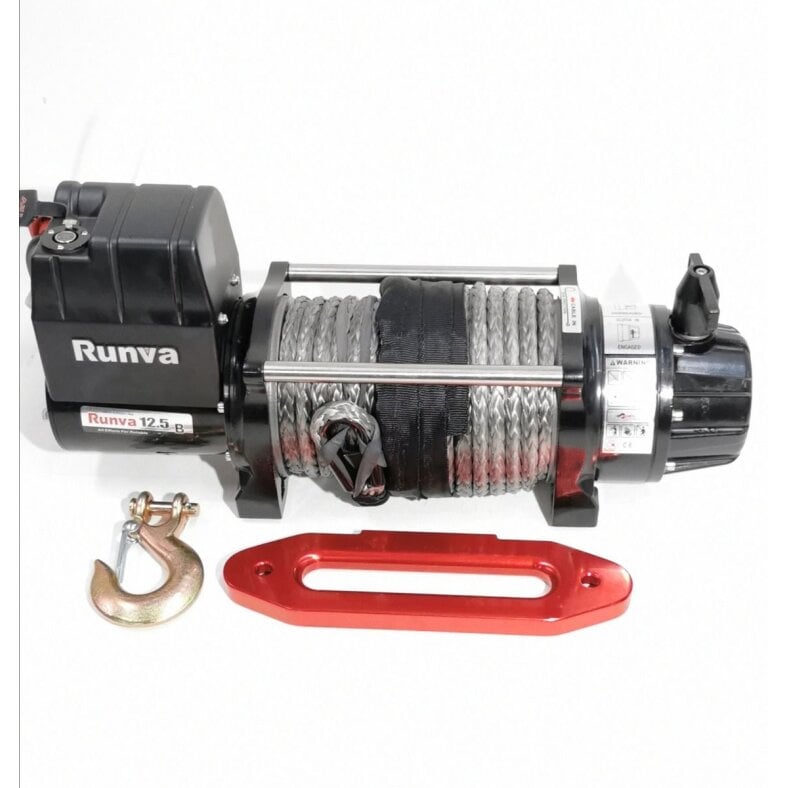

Standard features:
-
Tractive force5670 kg
-
Synthetic rope (diam. × L): Ø10.2 mm x 25.5m
-
Motor 24V: Input: 4.8kW / 6.4ps; Power: 3.1 kW / 4.2 hp
-
Gearbox: freewheel clutch- allows easy pulling out of the rope by hand
-
Drum size (diam. × L): Ø63mm x 217mm
-
Gear ratio:228:1
-
IP protection class: 67
-
Net weight (kg): 43
Accessories:
- incl. radio control
-
Rope window
-
Mounting screws: included (for standard mounting)
-
Battery cable: 1.5m hd battery cable (need to be extended depending on application), cable cross section: 32 mm²
- Instruction manual
Other information:
-
Dimensions (LxWxH): 601mm x 160mm x 254mm
-
Hole pattern/drilling pattern: 254mm x 114.3mm 4x M10
-
Approx. shipping weight: 46kg
| Rope layer |
Pulling force, kg |
Total rope on the drum, m |
|
| 1. |
5670 |
4,9 |
| 2. |
4434 |
11,1 |
| 3. |
3641 |
18,3 |
| 4. |
3088 |
25,5 |
| Tractive force, kg |
Traction speed, m/min |
Current consumption, A |
|
| 0 |
10,6 |
60 |
| 1361 |
5,3 |
85 |
| 4082 |
3,1 |
150 |
| 5670 |
|
|
IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
Any use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches. |
Product safety information
Manufacturer information:
RUNVA
No.100 Wancang Road, 100
0 Jinpan Development Zone, Jinhua, Zhejiang, China
sales@runva.com
Responsible person:
RUNVA
No.100 Wancang Road, 100
0 Jinpan Development Zone, Jinhua, Zhejiang, China
sales@runva.com
| Item information |
Value |
| Shipping weight: |
46,00 kg
|
| Item weight: |
43,00 kg
|
| Dimensions
( Length × Width × Height ):
|
60,10 × 16,00 × 25,40 cm |
