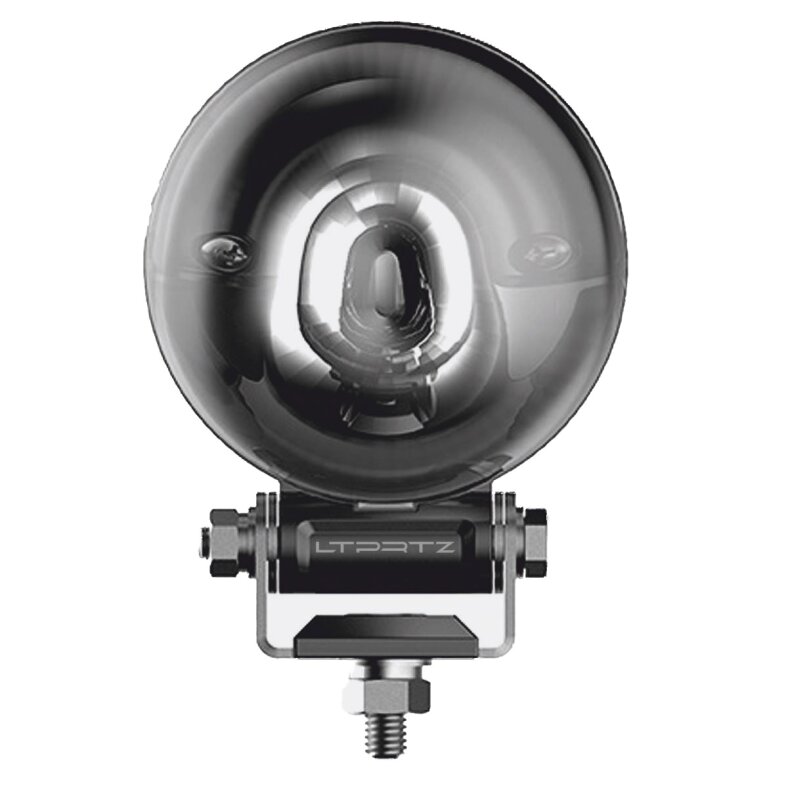

LTPZ-SLAB-01 arc stacking light 10-80v
Overview:
The SLAB series arc safety light is designed specifically for forklifts.
By projecting a round curve on the back of the forklift, it reliably warns pedestrians and other vehicles of the approaching forklift.
The light can be used in conjunction with the SLSL series to project a warning area on the ground at a safe working distance around the forklift.
These lights thus provide a complete warning system in the warehouse to protect pedestrians from foot injuries and collisions.
Features:
- Voltage ranges: 10~80v, suitable for various types of forklifts.
- Durable pc lenses minimize environmental damage.
- Aluminum housing allows effective heat dissipation and greatly extends service life.
- Protection class ip67, fully encapsulated for moisture, vibration and corrosion resistance.
- Projection of a round curve around the back of the forklift.
- Can be used by combining with a linear safety lamp as needed.
Technical information:
- Approvals: ece r10
- LEDs: 1pcs*6W
- Light color: Blue
- Operating voltage: 10-80v
- Operating temperature: -40°- +65°
- Connector: Red: Positive (+), Black: Negative(-), 2-pole output open
- Cable length: 500mm cable
- Housing: die-cast aluminum
- Lens: pc
- Protection class: IP67
- Net weight: 650g (including bracket)
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Application: |
Work lights |
| Shape: |
round |
| Approval: |
EMV R10 |
| Power: |
1 - 49 W |
| Shipping weight: |
0,68 kg
|
| Item weight: |
0,65 kg
|
| Dimensions
( Length × Width × Height ):
|
10,40 × 7,10 × 13,71 cm |
