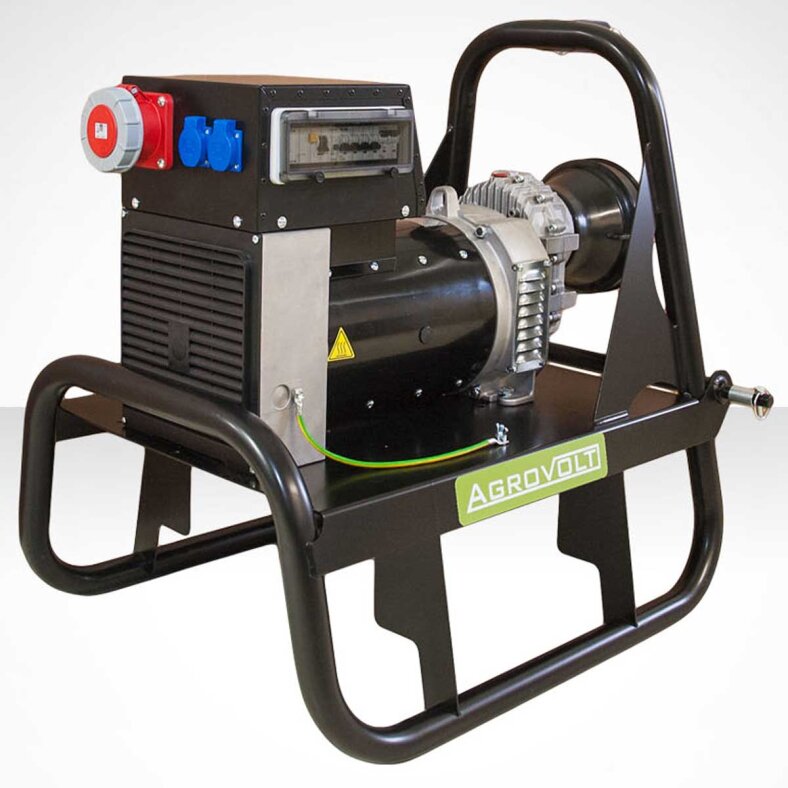

fogo agrovolt power take off generator 38 kva av38r with avr (voltage regulator)
Fogo produces PTO generators agrovolt from 18 to 80 kva
The av38 PTO generator is the ideal companion in agriculture, horticulture, fruit and animal husbandry.
Recommended for:
- Milking parlor
- Milk cooler
- Electric machines
- Submersible pumps for irrigation
- Power tools etc.
also suitable for fine electronics, pc, tv, home fuse etc.
TECHNICAL DATA:
Three-phase rated power: 38.0 kva, 30.4 kw 3~
Maximum power: 41.8 kva 3~
Single-phase rated power: 15.2 1~
Maximum power: 16.0 1~
Rated voltage: 400 / 230 v 50 Hz
Rated current: 55.1 a 3~ / 66.1 a 1~
Voltage stabilization: Digital +-1%, the 3-phase
dimensions (LxWxH): 950 x 800 x 933 mm
Weight: 147 kg
Generator:
Type: Synchronous generator
Protection class: IP23
Revolutions: 3000 rpm
Gearbox:
Type: mono-gear transmission
Oil type: SaE 80W-90
Oil quantity: 0,9 liter
Parameters of the tractor:
PTO speed (w.o.m.): 428 rpm
Recommended power of the tractor: 100 ps
Power of the PTO: 49 ps (36kW)
Min. power of the shaft (W.O.M): 91.7 ps (67.5 kW)
Standard equipment:
- 4-pole circuit breaker
- Fault current protection device
- 3-phase socket 63 a
- 2 x 1-phase socket 16 a with thermal circuit breaker
- Power measurement
- Voltage measurement
- Frequency measurement
- Current measurement
- Hour meter
ACCESSORIES on request:
fogo (FOCUS ON GREaT OPTION)
Goal setting and the selection of the best possible solutions, these are the simple but powerful principles of the company.
Fogo was founded in 1995 and is located in Wilkowice, near Leszno, in the western part of Poland, very conveniently close to the German border and all major transport routes.
Highly qualified and experienced employees, together with a young ambitious team perfectly complement each other. Thanks to this combination, the team is constantly developing new solutions and setting new trends in the industry.
For the production of the gensets only the highest quality components are used, such as Honda engines and generators from the EU countries. The iso 9001 quality system is supported by modern EDv technology.
The high quality of professional portable and stationary power generators is known in many countries. Their reliability has been confirmed by numerous quality control procedures.
