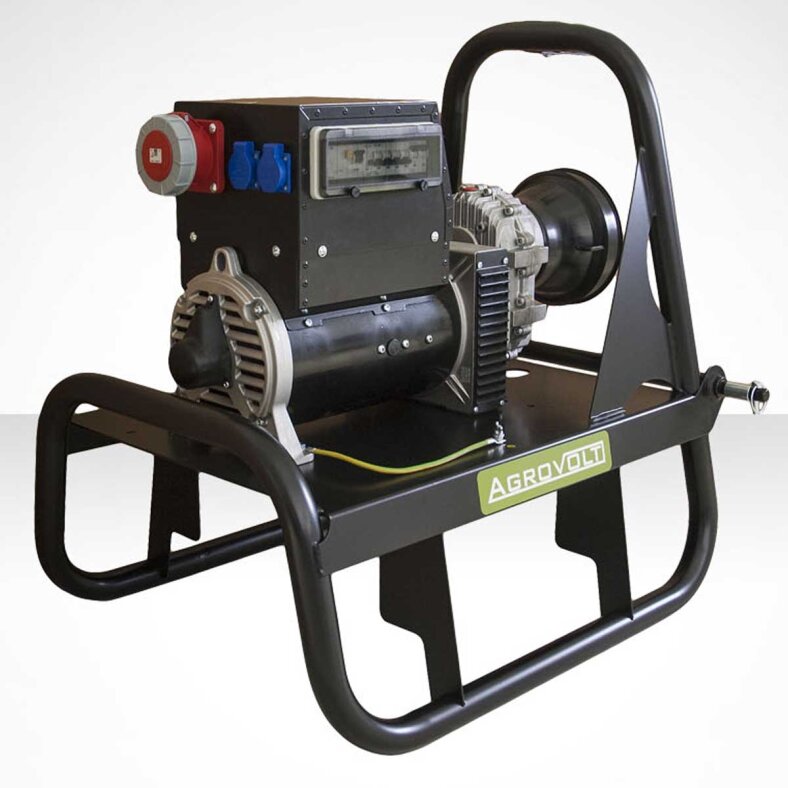

fogo agrovolt power take off generator 27 kva av27r with avr (voltage regulator)
Fogo produces PTO generators agrovolt from 18 to 80 kva
The av27 PTO generator is the ideal companion in agriculture, horticulture, fruit and animal husbandry.
Recommended for:
- Milking parlor
- Milk cooler
- Electric machines
- Submersible pumps for irrigation
- Power tools etc.
also suitable for fine electronics, pc, tv, home security, etc.
TECHNICAL DATA:
Three-phase rated power: 27.0 kva 3~
Maximum power: 29.5 kva 3~
Single phase rated power: 10.0 1~
Maximum power: 11.0 1~
Rated voltage: 400 / 230 v 50 Hz
Rated current: 36.2 a 3~ / 43.5 a 1~
Voltage stabilization: Digital +-1%, the 3-phase
dimensions (LxWxH): 950 x 800 x 933 mm
Weight: 147 kg
Generator:
Type: Synchronous generator
Protection class: IP23
Revolutions: 3000 rpm
Gearbox:
Type: mono-gear transmission
Oil type: SaE 80W-90
Oil quantity: 0,8 liter
Parameters of the tractor:
PTO speed (w.o.m.): 428,5 rpm
Recommended power of the tractor: 60 ps (30kW)
Power of the PTO: 37 ps (28kW)
Min. power of the shaft (W.O.M): 85 ps (64 kW)
Standard equipment:
- 4-pole circuit breaker
- Fault current protection device
- 3-phase socket 63 a
- 2 x 1-phase socket 16 a with thermal circuit breaker
- Power measurement
- Voltage measurement
- Frequency measurement
- Current measurement
- Hour meter
ACCESSORIES on request:
