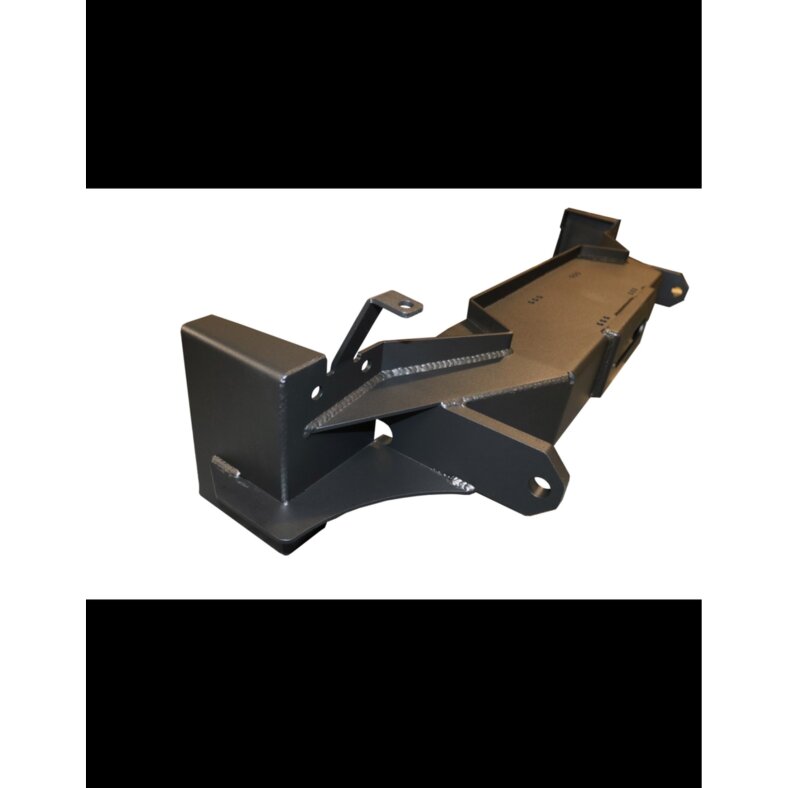

VAN COMPASS Hidden Winch Mount for Fiat Ducato, Citroën Jumper and Peugeot Boxer
The VAN COMPASS Hidden Winch Mount provides a strong and discreet solution for installing an electric recovery winch in the front of a Fiat Ducato, Citroën Jumper or Peugeot Boxer.
The vehicle-specific mounting system is designed for camper vans, expedition vehicles, commercial vehicles and off-road applications where reliable self-recovery capability is required without replacing the complete factory front bumper.
Most of the winch mounting structure remains concealed behind the original bumper cover, allowing the vehicle to retain much of its factory appearance while providing a substantial mounting structure for a compatible recovery winch.
Designed to transfer winching loads into the chassis
Electric vehicle winches can generate very high pulling forces. For this reason, the winch mounting system and its connection to the vehicle chassis are critical components of any recovery installation.
The VAN COMPASS system is engineered to distribute winching forces through multiple chassis mounting locations. According to the manufacturer, the assembly connects to the chassis at up to 15 mounting positions and incorporates additional reinforcement brackets ahead of the vehicle's crumple zone.
Heavy-duty steel construction
The winch mount uses a combination of 5 mm high-strength steel components to create a rigid mounting structure suitable for vehicle recovery applications.
Integrated recovery points are manufactured from substantial 19 mm thick steel plate, providing robust attachment locations at the front of the vehicle.
Hidden winch installation
One of the key advantages of the Hidden Winch Mount is its discreet design. Instead of replacing the complete front bumper with a large aftermarket bumper, the majority of the mounting structure and winch remains behind the factory bumper.
This makes the system particularly suitable for:
- Camper vans and motorhomes
- Expedition vehicles
- Off-road vans
- Commercial and service vehicles
- Forestry and agricultural applications
- Vehicles requiring reliable self-recovery equipment
Two-stage corrosion protection
The steel structure receives a two-stage protective coating. A zinc-rich primer is applied before the final matte black powder-coated finish.
This coating system is designed to provide long-term protection against weather, moisture and the demanding conditions typically encountered by off-road and commercial vehicles.
Integrated recovery points and front receiver
The mounting system incorporates front-facing recovery points as well as an optional front receiver. The receiver is included with the system but does not have to be installed if it is not required.
The manufacturer specifies a maximum static tongue load of 136 kg for the front receiver.
Which winches are compatible?
Installation space behind the factory front bumper is limited. Therefore, winch dimensions must be carefully checked before installation. Motor length, gearbox dimensions, drum position and electrical connections all influence compatibility.
Examples of winches listed as compatible by the supplier include:
- WARN M8000
- WARN XD9000
- Superwinch Tiger Shark 9500SR
Other winches may also be suitable when their overall dimensions, mounting pattern, rated pulling capacity and installation requirements correspond with the available mounting space.
Important: We recommend checking the exact winch dimensions before purchasing or installing a winch. Our team can assist with selecting a suitable recovery winch for this mounting system.
Vehicle applications
- Fiat Ducato
- Citroën Jumper
- Peugeot Boxer
Please verify the exact vehicle configuration and installation requirements before fitting.
Key features
- Vehicle-specific hidden winch mounting system
- Winch installs largely behind the factory front bumper
- Heavy-duty high-strength steel construction
- 5 mm steel components
- 19 mm integrated recovery/shackle mounting points
- Load distribution through multiple chassis mounting locations
- Attachment at up to 15 chassis positions
- Two-stage corrosion protection
- Zinc-rich primer
- Matte black powder-coated finish
- Optional integrated front receiver
- Suitable for selected compact vehicle recovery winches
Installation note
A vehicle winch installation is a safety-critical modification. Installation should therefore be carried out in accordance with the manufacturer's instructions and preferably by a qualified workshop. Before use, all mounting points, the winch, rope, electrical connections and recovery equipment should be inspected carefully.
Manufacturer: VAN COMPASS
Part number: 4061
Product type: Hidden Winch Mount / Winch Mounting System
