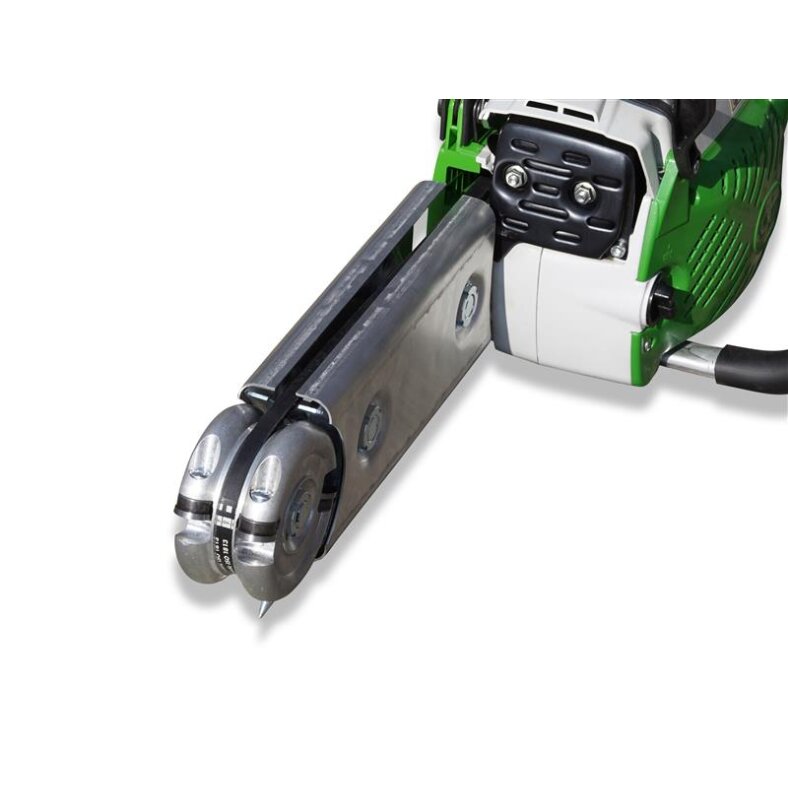

eder trough cutter
The eder trough cutter eth1 is suitable for milling out depressions in wood.
It can be used for making troughs, for sculptural or tree surgery work and for milling out tree trunks.
Due to the arrangement of the round knives, processing is possible both in the longitudinal and transverse direction of the milling head.
The infinitely adjustable and removable tip on the underside of the cutter head carrier penetrates the wood and absorbs most of the cutting forces.
This allows for a large removal volume per unit of time.
Technical specifications:
- Weight without motor: 2.75 kg
- Weight with eder motor: 8,55 kg
- Drive power: min. 1.2 kW
- Recommended drive power: 2.7 kW
- Milling drum diameter: 100 mm
- Milling drum width: 54 mm
- Blade length: 320 mm
- Number of knives: 4
- Max. Speed: 13.000 1/min
- Drive ratio: 1:1
IMPORTANT: This is the trough cutter. The motor is not included in the delivery.
The set consisting of trough hob and motor can be ordered HERE to order.
Mounting instructions:
Minor adjustments must be made for some chainsaws. Basically no chainsaws with chain quick tension, Autotune or M-Tronic can be used!
We recommend the use in set with the eder motor.
