eder peeling device

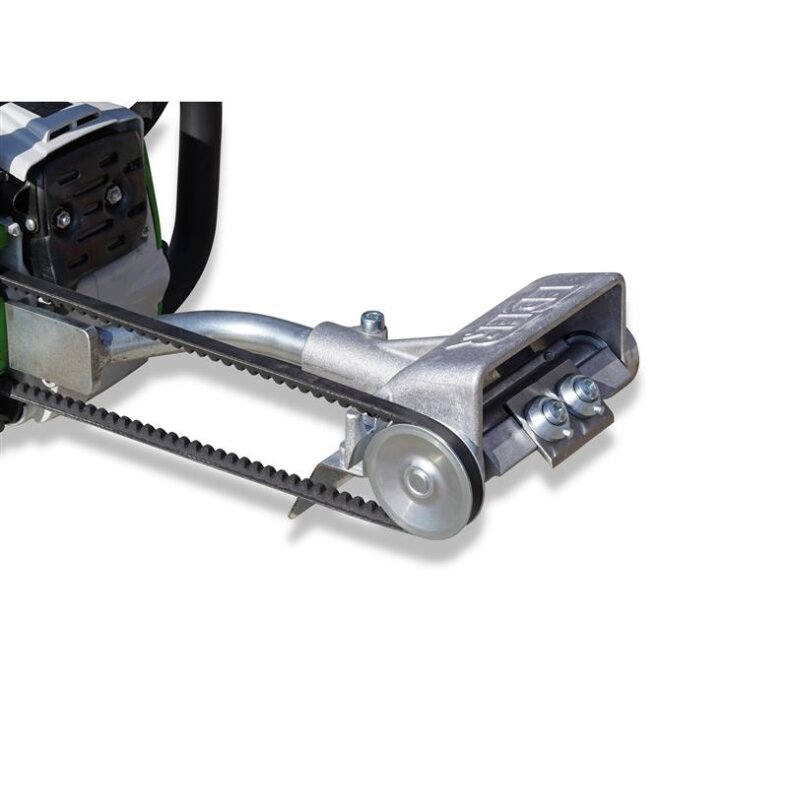

The eder peeling device esg1 is the preferred tool for peeling logs of any thickness.
The thicker and harder the bark, the more economical it is to work with this tool.
The carbide pins located directly behind the knives are designed in such a way that they allow the distance of the peeling knives
to the trunk wood is maintained regardless of the bark thickness on the trunk surface.
Branch attachments and thin knots are easily and cleanly removed.
Note: The eder peeling device esg1 is not suitable for peeling board edges or ruby wood.
Use the eder EKH1 contour planer for this purpose.
Technical specifications:
- Weight without motor: 2.5 kg
- Weight with eder motor: 7,8 kg
- Driving power: min. 1,2 kW
- Working width: 120 mm
- Knife width: 30 mm
- Number of knives: 4
- Max. Speed: 13.000 1/min
- Drive ratio: 1:1
IMPORTANT: This is the peeling unit. The motor is not included in the delivery.
The set consisting of peeler and motor can be ordered HERE to order.
Mounting instructions:
Minor adjustments must be made for some chainsaws. Basically no chainsaws with chain quick tension, Autotune or M-Tronic can be used!
We recommend the use in set with the eder engine.
PLEASE specify the CHAIN SAW TYPE when ordering!
