For maximum lifting power!

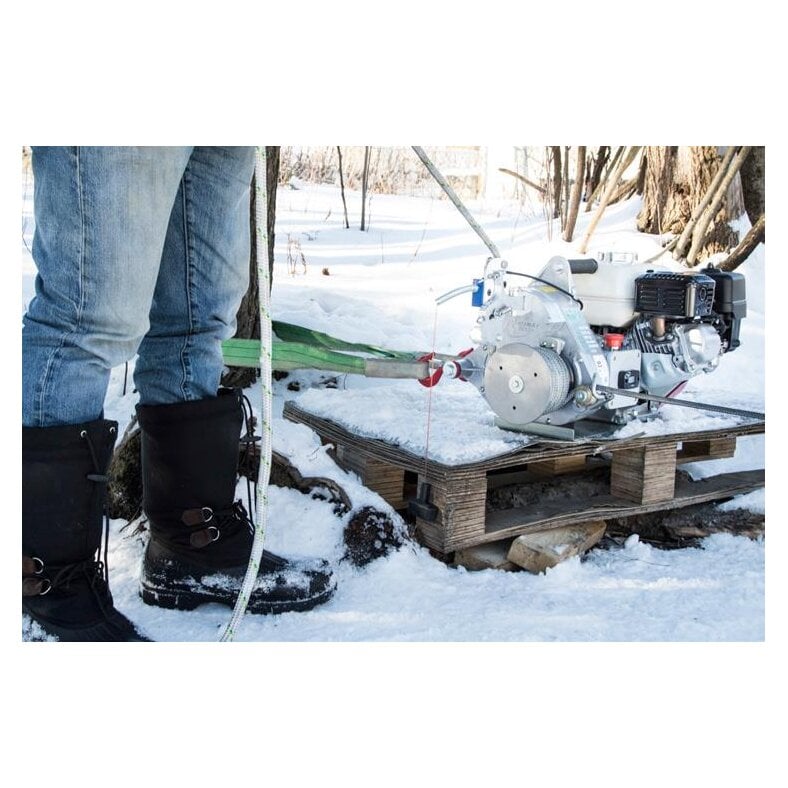

The pch2000 winch is equipped with a honda gx-160 cc engine and offers superior performance for a wide range of applications, such as erecting towers, lifting antennas, replacing insulation bodies, pulling cables and other heavy-duty jobs.
This winch can lift loads of up to 450 kg with a single hoist rope. A rope pulley system doubles the power capacity to 900 kg.
Its integrated rope gripping system ensures safe working, and the start/stop mechanism guarantees that you can fully concentrate on the necessary operations during use.
This system is used for lifting and lowering loads.
A wide range of accessories is available to simplify the installation process and the anchoring of the winch to various anchor points (e.g. to a vehicle, post, mast or other).
PERFORMANCE
Maximum pulling force with drum installed (metric) : 1150 kg
Rated lifting capacity with drum installed (metric) : 450 kg
WINDLASS DRUMS
Installed : 108 mm
Optional : N/A
SPEED
108 mm drum : 20 m/min
ROPE
Minimum diameter (metric) : 12 mm
Maximum diameter (metric) : 13 mm
Recommended diameter (metric) : 12 mm
DRIVE SYSTEM
Engine : Honda ghx-160 four stroke
Gearbox : Alloy aluminum gearbox. Heat-treated 3-stage spur gear. Shafts are mounted in ball bearings. Oil bath lubrication.
Reduction ratio : 53:1
Brake : Unidirectional double bearing
Clutch : Centrifugal
Drum rotates when motor is idling : No
Duty cycle : Continuous
WEIGHT and DIMENSIONS
Weight (metric) : 34.5 kg
Length (metric) : 48.3 cm
Width (metric) : 37.1 cm
Height (metric) : 36.1 cm
ANCHORING
Included : Polyester belt 60 mm x 2 m (PCA-1260)
