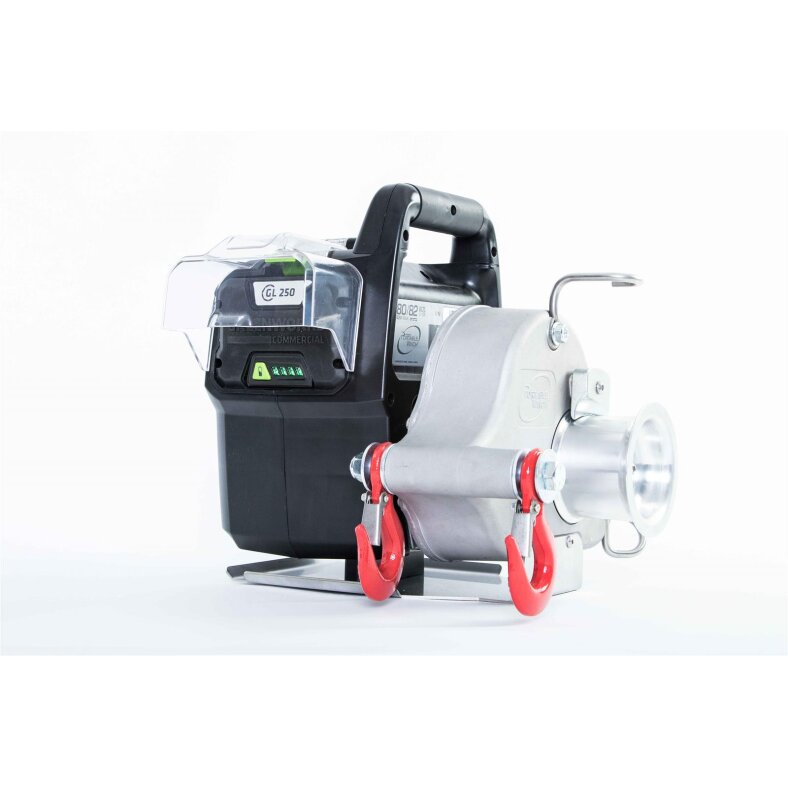

Battery pulling winch, Max. Pulling power 1000 kg without battery and charger WORLD NEW
WORLD'S FIRST
first battery powered capstan winch
The PCW3000-Li is the only battery powered portable capstan winch in the world!
Portable Winch Co. is once again leading innovation with the introduction of this new winch model. With its 1.0 kW electric motor powered by 80/82 volt lithium-ion batteries, POWERFUL, with a pulling force of 1000kg max, and a lightweight at only 9.5kg, it can be carried wherever its use is required. Users will be able to perform strenuous work with ease. completely maintenance free, it is always ready for use!
AN eco-friendly, maintenance-free tool designed by the WORLD'S LEADER portable WINCH.
aDVANTAGES OF A BATTERY-OPERATED WINCH
light, compact and portable
Cordless - you can carry it wherever it is needed. Very easy to store.
MAINTENANCE-FREE
Always ready to use, so perfect for a short or unforeseen task. Ideal for seasonal and/or temporary use.
ENvIRONMENTALLY FRIENDLY
Reduces emissions and energy consumption and the winch maintains air quality. Even better, its batteries are recyclable!
SELF-POWERED
Since the winch is powered by a rechargeable battery, no external power source is needed for operation.
HIGH PERFORMANCE
A constant pulling force. The lithium-ion battery provides constant power, from the very beginning to the very end of its cycle.
ENERGY EFFICIENCY
Durable and powerful winch of high quality that provides optimal performance. The best weight-power ratio.
DURABLE
High quality components ensure continuous use and long life.
FAST ANCHORING AND EASY TO USE
Can be anchored anywhere in seconds. Once the winch is anchored, all you need to do is wrap the rope around the drum and pull.
SAFE
The user is never in the axis of pull. Also, the winch can be used in all positions.
SYNTHETIC ROPE
No more wire ropes! Polyester rope is low stretch and provides unparalleled working comfort.
UNLIMITED ROPE LENGTH Thanks to the capstan drum principle, there is no rope jamming on the drum. It only goes over the winch.
lOW NOISE; no odor or QUALM
Can therefore be used both outside and inside.
MOTORIZATION
1.0 kW electric motor - all positions - 82 v max. with overload protection (automatic shutdown)
MAXIMUM TRACTIVE FORCE
Continuous 700 kg
Max. 1000 kg
WEIGHT
9,5 kg
3 SPEEDS
Speed 1 - 8,1 m/min
Speed 2 - 10 m/min
Speed 3 - 11,6 m/min
CAPSTAN DRUM
76 mm
ROPE
Double braided polyester rope with low elongation - endless length
MINIMUM DIAMETER
10 mm
MAXIMUM DIAMETER
13 mm
IDEAL DIAMETER
10 mm
batteryS
Compatible: All 80 v batteries from Greenworks Pro, 82 v from Greenworks Commercial
and Powerworks
battery runtime
For 82 v battery - 3 ah runtime up to 45 minutes
For 82 v battery - 6 ah run time up to 90 minutes
TRANSMISSION
Gearbox made of alloyed aluminum. Heat-treated 3-stage spur gear. Shafts are mounted in ball bearings. Oil bath lubrication.
Gear ratio
200:1
BRAKE
Clutch bearing for anti-lock protection
COUPLING
Direct drive
WORKING CYCLE
Continuous
DIMENSIONS
30.2 cm wide x 31.8 cm long x 31 cm high
anchorage
Polyester strap 60 mm x 2 m (PCA-1260)
WEATHER PROTECTION ipx3 INSULATION
Protected against precipitation
