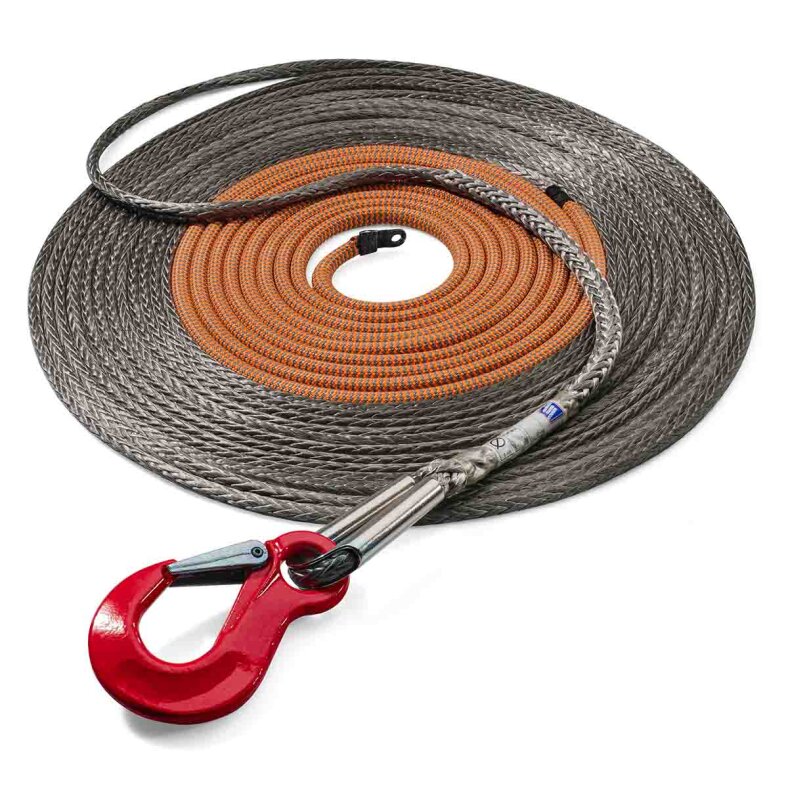

2 component winch rope Profi-X according to din en-14492-1:2006 made in GERMANY:
-
Designation: Novoleen® Profi X
-
Thickness mm: 10
-
Length m: 30
-
Breaking load daN: 9900
-
Working load daN: 3300
Features:
- Rope specially designed for the high-end customer
- One side cable lug for mounting on the winch, 5m leader protection braid in signal color orange/carbon
- Complete rope incl. leader made of Novoleen. Full breaking load over the entire rope length, i.e. rope can be unwound up to the leader and still has full load capacity. From the leader, there is still 5 m of rope that must remain on the drum to ensure full load capacity.
- Carabiner is spliced with stainless steel thimble, thus no friction of the carabiner on the rope
- Other side special off-road hook with over 12.5 t breaking load and small size, thus much lighter and more economical space requirements
- Rope color carbon gray
- Unmatched flexibility, ideal for pulling winches
- no risk of injury due to wire hooks
- optimal winding on the rope drum
- Special surface coating against abrasion and weathering
- Resistant to UV light, acids, alkalis as well as gasoline and oil
- 8 times lighter than steel rope
- no more cumbersome re-greasing required
- complete with high-strength safety hook, ready for immediate use
- Metal reinforced hook loop (up to 14 mm rope ø) reduces rope wear at the eyelet
technical specification:
- Material: high modulus polyethylene
- Service elongation range: <1%
- Melting point: 140 ° Celsius
- 7 times payload according to standard
- robust special thimble
- very good running resistance
- very good acid resistance
- very good gasoline/oil resistance
- very good UV resistance
- Loss of strength due to splice: < 10
Product safety information
Manufacturer information:
Seilflechter Tauwerk GmbH
Auf dem Anger 7-9.
38110 Braunschweig, Deutschland
info@seilflechter.de
https://www.seilflechter.de
Responsible person:
Seilflechter Tauwerk GmbH
Auf dem Anger 7-9.
38110 Braunschweig, Deutschland
info@seilflechter.de
| Breaking Strength: |
>8 - 10 t |
| Colour: |
|
| Rope Length: |
>20 - 30 m |
| Drumprotector: |
with Drum Protector |
| Shipping weight: |
2,74 kg
|
| Item weight: |
2,74 kg
|
| Dimensions
( Length × Width × Height ):
|
3.000,00 × 1,00 × 1,00 cm |
