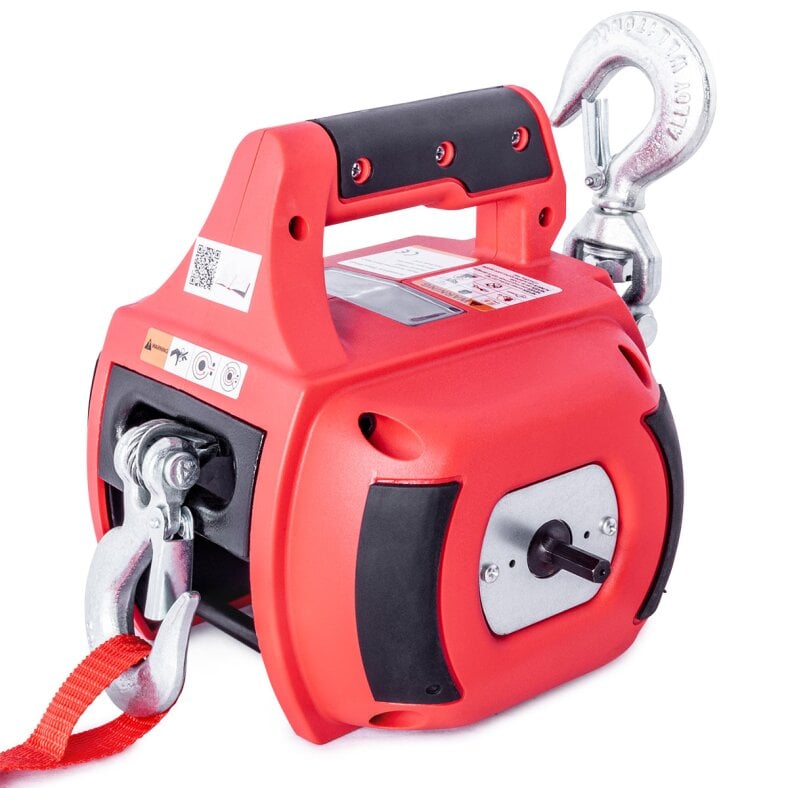

Mobile winch with cordless screwdriver drive 225kg
The compact design of the portable winch makes it an all-purpose device for various applications. With a dead weight of only 6.7 kg, this winch pulls up to 225kg over a maximum distance of 12m. The mobile winch can be easily installed due to the integrated anchor hooks easy to install (e.g. on a tree or post). The fixed, low-twist wire rope with a length of 12m can be pulled out quickly and easily by manual freewheel. The integrated load swivel hook and rope guide window ensure smooth rope winding. The rope can be fed in and out with a cordless screwdriver or a drill (min. 4 Nm). The annoying connection to a battery or similar is thus completely eliminated. The shockproof housing also protects against dust and splash water.
Practical feature: the winding can be checked through a viewing window on the top.
The portable mini winch and other electric winches, hoist and winch accessories you can buy in the online store of Seilwinden-Direkt.de
Technical specifications of Drill-Winch l-msw-225-as cordless winch:
-
Pulling force: max. 225kg
-
Rope length: 12m x 4mm
-
Pulling speed: approx. 1m/min under full load.
-
Gearbox: manual freewheel
-
Protection class: IP54
-
Weight: 6,7 kg
Compact cable winch for drive with cordless screwdriver buy cheap online at seilwinden-direkt.de
The lightweight yet durable cable winch is a real all-rounder. It is used, for example, on construction sites, in industrial halls, but also for boat slipping or game recovery. Due to a pulling speed of approx. 1m/min under full load, high loads can be pulled safely and quickly.
Fields of application:
- Boating (e.g. boat launching)
- Construction site (e.g. building materials)
- Forestry (e.g. game recovery)
- Industrial hall (e.g. work pieces)
- Workshop (e.g. engine)
- Warehouse (e.g. goods)
- Farm (e.g. hay bales)
Features and advantages of the portable mini rope winch 225kg at a glance:
- Compact, lightweight and powerful cable winch
- No twisting of the load due to Swivel hook and low twist steel cable
- Reliable and easy handling
- Safe operation with Cordless screwdriver / drill
- fast, simple assembly with top hook
- Shockproof housing with viewing window for steel cable
-
Spare parts if needed from stock available
Scope of delivery:
- 1x winch
- 1x steel cable 4mm x 12m (pre-installed on the winch)
- 1x anchor hook (pre-installed on the winch)
- 1x load hook (pre-installed on the winch)
- Rope guide window (pre-installed on the rope winch)
ATTENTION: Cordless screwdriver and/or drill are not part of the scope of delivery
Expert Tip: If you need to lift a load, you should go for the following products:
Always retract or extend the steel cable under tension (slack cable).
The steel cable is a classic wearing part and is sold under exclusion of any warranty.
The exclusion does not apply to claims for damages from grossly negligent or intentional breach of obligations of the seller and for any injury to life, limb and health.
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Cable/Rope Type: |
Steel Cable |
| Price: |
0 - 199 EUR |
| Line Pull: |
0 - 1 t |
| Cable/Rope Length: |
1 - 15 m |
| Shipping weight: |
7,20 kg
|
| Item weight: |
6,70 kg
|
| Dimensions
( Length × Width × Height ):
|
27,50 × 20,20 × 20,20 cm |
