Electric winch warrior samurai s17500 7.9 t 12 v steel cable waterproof to ip68

Electric winch warrior samurai s17500 7.9 t 12 v steel cable waterproof to ip68

SKU: 175SS12
GTIN: 5060423980728
Category: Winches

999,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 13 - 15 Workdays (DE - int. shipments may differ)

piece

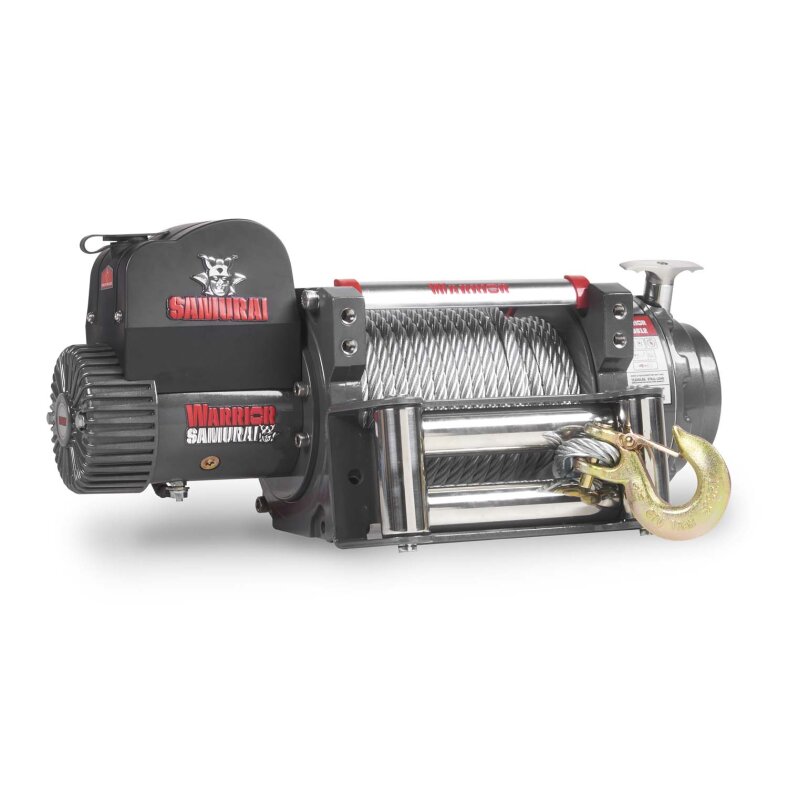

The Samurai S17500 is the winch with the best EUR/kg pull ratio. Outstanding features include the large
and high quality 7.2hp dual sealed motor with brass fittings, waterproof hd gear shift, dual sealed drum running on maintenance free ball bearings, and quiet, fully sealed
Drum that runs on maintenance free ball bearings, and the quiet, fully sealed, high efficiency planetary gearbox. Stainless steel roller rope window and other special features are standard on this winch.

Standard Features:

Pulling force: 17,500lb (7,938kg)
Rope: 26.5m length 12mm steel cable with clevis hooks
Motor: brass (no corrosion) reversible 7.2hp/5.4kW 12v in-line motor-
enables electric rope pulling in and out
Gearboxoverrunning clutch - allows easy manual extraction of the rope
sealed 3-stage planetary gearbox
Brake automatic drum brake
2-fold sealed drum (gearbox/motor)
Gear ratio: 430:1
sealed waterproof gear shift 600 a
Plastic reinforced protective cover for gear shift

Accessories:

Cable remote control with 3m cable
Radio remote control: optional, not included
Rope window: 4-way heavy duty roller rope window with stainless steel rollers
Mounting screws: included (for standard mounting)
Battery cable: 1.5m hd battery cable (need to be extended depending on application), cable cross section: 32 mm²
Battery disconnect switch
Instruction manual

Further information:

dimensions (LxWxH): 610mm x 216mm x 276mm
Hole pattern/drill pattern: 254mm x 114.3mm
Drum size (D x l): 89mm x 217mm
Approx. shipping weight: 66kg

Pulling speeds and power consumption:

Rope layer	Tractive force
	lbs / kg

1	17500 / 7938
2	14000 / 6364
3 4 5	12500 / 5682 10000 / 4545 6000 / 2728


Traction	Traction speed		Power consumption ( a )
lbs / kg	ft / min	m / min	12 V

0	22,3	6,8	100
6000 / 2728	9,84	3,0	220
10000 / 4545	9,8	2,0	320
12500 / 5682 17500 / 7938	5,8 3,9	1,7 1,2	350 450

IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
Any use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches.

Voltage:	12 V
Line Pull:	6,1 - 8 t
Cable/Rope Length:	26 - 30 m
Cable/Rope Type:	Steel Cable
Price:	1000 - 1999 EUR
Brand:	Warrior®
Application:	Private Off-Road Forestry/Hunt Universal
Vehicle Type:	Car Truck Others
Drive Type:	electric
Special Features:	waterproof
Shipping weight:	66,00 kg
Item weight:	66,00 kg
Dimensions ( Length × Width × Height ):	61,00 × 21,40 × 27,60 cm
