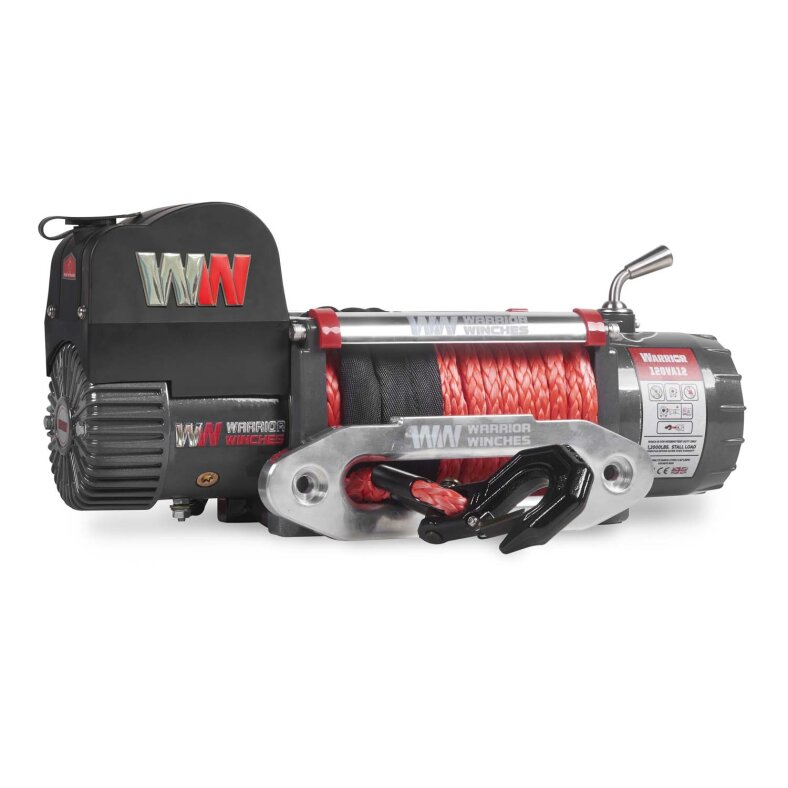

Next Generation Warrior Samurai V2 12000lb Winch
Since their launch, the Warrior Samurai winches have been their premium offerings. Now upgraded to V2, the high-spec winch has only gotten better, making it ideal for reliable recovery and 4x4 applications. With a super strong pulling force of 12,000 LB or 5400 kg, this heavy-duty winch gets the job done with ease.
In addition to its strength, this upgraded Warrior winch features a high-quality wound motor with brass contacts that lead directly to the motor for efficient operation. It also features a heavy-duty waterproof solenoid, double sealed drum, and a solid steel planetary gear box that runs quietly to keep the peace. Whether you choose the stainless steel 4-way cable guide or the aluminum cable guide (synthetic rope), the Warrior Samurai V2 winch offers unbeatable performance.
The standout feature, however, is the addition of a revolutionary new external braking system. Unlike traditional winch brakes, the V2 Samurai brake is located at the end of the gearbox rather than in the drum. Even faster with a lower amp draw and a higher capacity to hold and lower the load - the benefits are numerous. It also reduces heat build-up around the drum, making it particularly safe to use with synthetic ropes.
With a speed of 1.4 m/min (380 amps) at full load, you'll get the job done quickly and easily.
Standard Features:
? Pulling Force : 5,400 kg (12,000 lb)
? Motor : Series wound motor - input and output
? Gearbox : Freewheel clutch - Allows manual unwinding of the cable
Accessories:
? Wired Hand Control: 3.8 m wired hand control
? Wireless Control - ONLY 12 MODEL : Pre-installed heavy-duty wireless controller with lanyard (see note below)
? Mounting Plate : Available as an optional extra
? Mounting Screws : Included for standard installations
Includes:
? 1.5m heavy-duty battery cable (must be extended depending on application)
? Battery Isolator Switch (not used will void warranty)
? User Manual
Other Information:
? Dimensions : 559mm L x 160mm D x 248mm H
? Mounting Bolt Pattern : 254mm x 114.3mm
? Rope pull - no load : 9 m/min (45 amps)
? Rope pull - full load : 1.4 m/min (380 amps)
While every effort has been made to ensure the accuracy of the information on this product, in the interest of technical improvement, this specification is subject to change without notice.
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Cable/Rope Type: |
Synthetic Rope |
| Application: |
Private |
| Brand: |
Warrior |
| Pulling Force max [lbs]: |
12000 |
| Voltage [V]: |
24 |
| Gear Transmission: |
253:1 |
| Rope Diameter [mm]: |
11 |
| Rope Length [m]: |
25 |
| Drum Size [Dia x L in mm]: |
63 x 223 |
| Length [mm]: |
559 |
| Width [mm]: |
160 |
| Height [mm]: |
248 |
| Weight [kg]: |
32 |
| Mount-Pattern [mm]: |
254 x 114,3 |
| max Amp [A]: |
250 |
| Linespeed max [ft/min]: |
37,7 |
| Linespeed min [ft/min]: |
5,2 |
| Drive Type: |
electric |
| Shipping weight: |
33,00 kg
|
| Item weight: |
33,00 kg
|
| Dimensions
( Length × Width × Height ):
|
55,90 × 16,00 × 24,80 cm |
