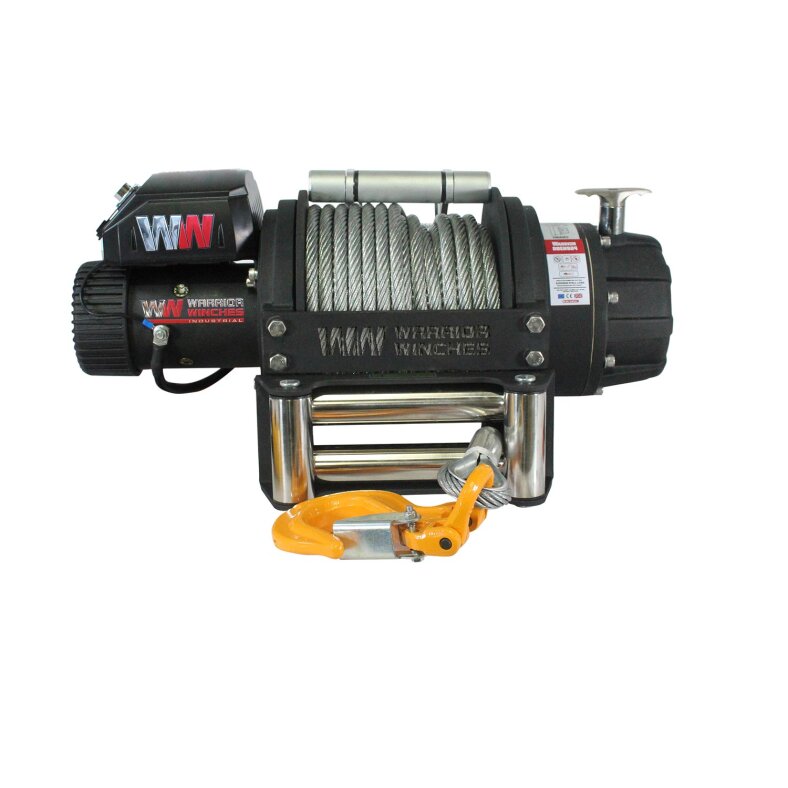

Electric winch Warrior 8000en 24 v

SKU: 80ENS24
GTIN: 5060423986089
Category: Winches

according to en 14492:1

2.022,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 13 - 15 Workdays (DE - int. shipments may differ)

piece

The en series has been developed for the professional user. The winches are designed to ensure that they can meet the requirements of en 14492:1 as part of the assembly solution.

special features:

10:1 drum/rope diameter ratio
2:1 rope ratio
double rope attachment

In addition to these special features, the en series winches have all of warrior's standard features such as the high quality motor, complete sealing, stainless steel struts and levers, and more.

Technical features:

Pulling force:
Motor: sealed (IP68) and corrosion resistant in-line motor
Power: 24 v allows electrical retraction and output of the rope
Gearbox: 3-stage planetary gearbox with overrunning clutch - allows manual extraction of the rope
Gear ratio:

Dimensions and weight:

dimensions (l x w x h):
Drum size (w x l):
Hole pattern/drill pattern:
Approx. weight:

Pulling speeds and power consumption:

Rope layer	Tractive force
Steeleil	lbs / kg

1	13228 / 6000
2	11111 / 5040
3 4	9579 / 4345 8417 / 3818


Traction	Traction speed		Power consumption ( a )
lbs / kg	ft / min	m / min	24 v

0	19,4	5,9	40
4409 / 2000	9,2	2,8	90
8818 / 4000	6,9	2,1	150
13228 / 6000	5,2	1,6	210

Scope of delivery:

Electric winch: Warrior 6000en 24v
Rope: 26.5m length Ø12mm galvanized steel cable with clevis hooks
Cable remote control with emergency stop switch: included (3.8m cable length)
Rope window4-way heavy duty rope window with stainless steel pulleys
mounting screwsincluded (for standard mounting)
battery cable: Length 1.5 m (must be extended depending on application)
Emergency stop battery disconnect switch

Mounting plate: is not included in the delivery.

Voltage:	24 V
Cable/Rope Length:	26 - 30 m
Cable/Rope Type:	Steel Cable
Price:	1000 - 1999 EUR
Brand:	Warrior®
Application:	Private Professional Off-Road Forestry/Hunt Towing Universal
Vehicle Type:	Car Truck Others
Drive Type:	electric
Special Features:	waterproof
Shipping weight:	70,00 kg
Item weight:	65,00 kg
