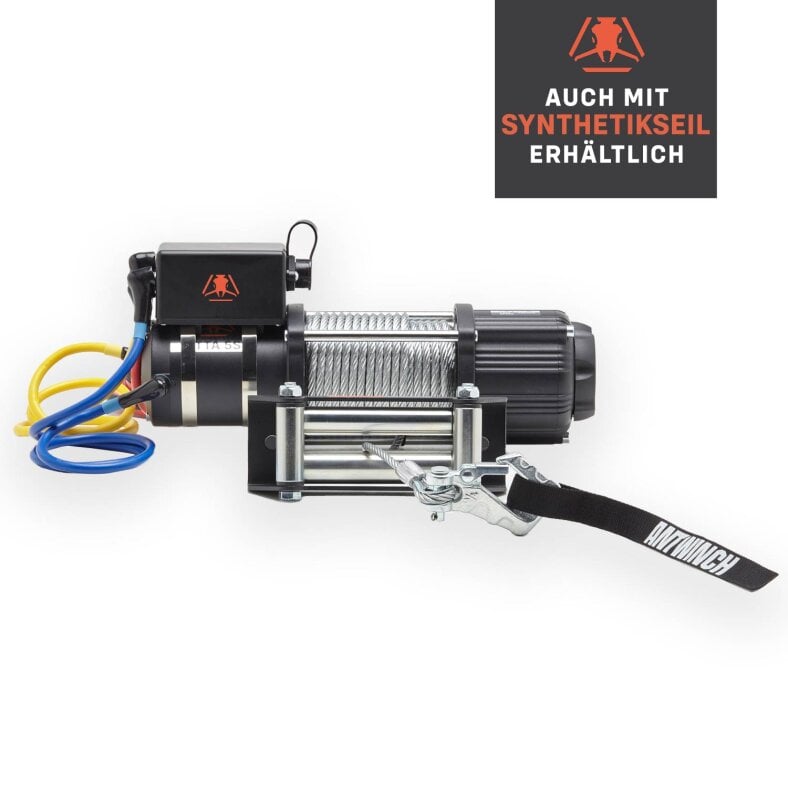

Electric ATV Winch with Long Drum Technology 12V 2.3t
The newly developed ATV Winch ATTA 5S, from the German company Winch Industry GmbH, emerged from years of customer interaction and expertise as the operator of the winch trading platform. We know how to push uncompromising quality to the limit, which is why we have launched the agile ATV winch ATTA 5S with Long Drum Technology for extra rope length.
We draw inspiration from the forms of nature. An ant, despite its small size, can carry many times its own body weight. Its power-to-weight ratio is thus unrivaled in the animal kingdom. Following this animal model, our ANTWINCH ATTA 5S is designed for use on agile ATVs with its lightweight and compact design! Despite its small size, the ATTA 5S is extremely powerful. Its small size also makes the winch attractive for other applications, such as launching boats.
A True Workhorse!!
The compact ATV winch with Long Drum Technology and other electric winches, lifting equipment, and winch accessories can be purchased in the online shop at Seilwinden-Direkt.de.
The electric ATV winch ANTWINCH ATTA 5S is versatile. Its compact size and light weight keep the ATV agile while providing a powerful supplement. With the included mounting accessories, including a mounting plate, the winch is easy to install. The ATTA 5S becomes a reliable helper in any terrain. Thanks to its higher pulling power of 2.3 tons in the first layer, moving large loads is easy! To optimize the high output of the high-performance motor, we use an efficient planetary gear system. The improved gear ratio ensures optimal power transmission. The ATTA 5S is designed for enormous loads, which is why we guarantee maximum operational safety. The integrated braking system automatically secures large loads reliably. The control box includes a high-quality high-performance fuse. The control box can be mounted above the motor with the included mounting bracket and battery cable.
In addition to the higher pulling power, the ATTA 5S is equipped with Long Drum Technology. The larger drum allows for a rope length of 15.2 meters and a larger rope diameter of 5.4 mm. With this powerful winch with extra rope length, recovery and pulling tasks become easy. The high roll speed of over 7 m/min also makes reeling in after work particularly fast.
Buy the ATV Winch ANTWINCH ATTA 5S online at a great price at seilwinden-direkt.de
Our compact winch for quads is a true all-rounder. The delivery includes 1x cable and 2x remote controls. This allows operation from a safe distance. Depending on the application, the winch can be configured and is available with either steel or synthetic rope. Both ropes guarantee uncompromising quality and performance. To ensure optimal functionality and longevity, our ATTA 5S with steel rope is also equipped with a roller rope window.
We have the highest standards for quality and durability with our ATV winch! Even at a competitive price, our customers receive a product with a high-quality matte black powder coating and a waterproof cover that reliably protects against water and other extreme weather conditions. This guarantees unrestricted quality for many years of intensive use.
Technical Specifications of the ANTWINCH ATTA 5S:
- Motor: 12V high-performance motor
- Pulling power: 5,000 LBS / 2.3 t in the first layer
- Speed: over 7 m/min
- Long Drum Technology
- Rope: 15.2 meters long steel or synthetic rope (diameter: 5.4 mm)
- Efficient planetary gear system
- 1x cable & 2x remote controls
- Control box with heavy-duty relay & battery cable
- High-quality matte black powder coating
- Including mounting plate
- Weatherproof
| Layer |
Rated line pull (lbs / kg) |
Wire rope capacity (ft / m) |
| 1 |
5000 / 2268 |
9.79 / 2.98 |
| 2 |
4081 / 1851 |
21.7 / 6.62 |
| 3 |
3447 / 1563 |
35.8 / 10.9 |
| 4 |
2984 / 1353 |
49,8 / 15.2 |
| Line pull (lbs/kg) |
Line speed (fmp / mpm)
|
Motor Amps |
| 0 |
24.1 / 7.35
|
29 |
| 1250 / 568 |
15.41 / 4.7 |
94 |
| 2500 / 1136 |
11.48 / 3.5 |
150 |
| 3750 / 1704 |
8.59 / 2.62 |
219 |
| 5000 / 2268 |
5.9 / 1.8 |
278 |
Applications:
- Any ATVs
- Boats
- Hunting
- Trailers
- Vehicle construction
- Industry
Features & Benefits of the ANTWINCH ATTA 5S at a Glance:
- Uncompromising premium quality
- Compact size and low weight
- Long Drum Technology
- Over 7 m/min
- Powerful 12-volt high-performance motor
- Efficient planetary gear system
- 2.3 t pulling power in the first layer
- Includes 1x cable & 2x remote controls
- Control box with heavy-duty relay & battery cable
- High-quality matte black powder coating
- Weatherproof
- Includes mounting plate
- Versatile applications
- Easy installation
