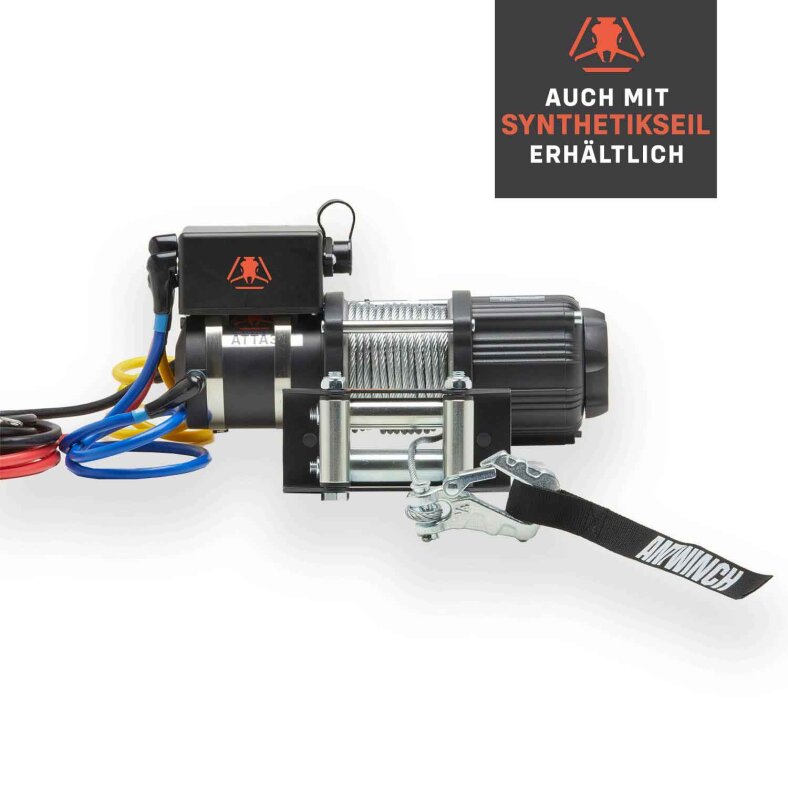

Electric Boat Winch 12V 1.6t
The newly developed ANTWINCH ATTA 3 boat winch from the German company WINCH Industry GmbH was created from years of customer contact and expertise as operators of one of the most well-known platforms for rope winches. We know how to push uncompromising quality to the limit, which is why we designed a compact and waterproof rope winch specifically for boat launching.
We draw inspiration from nature’s forms. The Asian water ant lives in close symbiosis with pitcher plants. This species of ant can emerge from water reservoirs, staying underwater for several minutes at a time, lifting many times its own body weight.
Following this animal model, the ANTWINCH ATTA 3, with its lightweight and compact design, is ideal for boat launching:
Waterproof according to IP68
The winch is sealed on both the motor and gearbox sides according to the IP68 classification, making it waterproof. Even full submersion of the winch for a short period is not a problem. This rope winch is at home in water!
WIDE RANGE Remote Control
With dedicated remote controls, operating the winch outside the danger zone is no problem, ensuring dry feet. Did the remote fall in the water? No problem – you receive two remote controls with every delivery, so you always have a working backup.
Boat Winch with Steel Cable
Steel cables are extremely robust and durable - alternatively, the winch can also be configured with a plastic cable.
The rope length is an extra-long 15.2 meters!
Speed
With a speed of 7 meters per minute, boat launching is not only effortless but also faster compared to other winches.
Compact
The ANTWINCH ATTA 3 is particularly light and compact, making it the perfect choice for mounting on a trailer. The ideal balance between pulling power and maximum trailer load was calculated.
Powerful
Despite its light weight, the winch delivers a strong performance with 1.6 tons of pulling force in the first layer. Thanks to the three-stage planetary gear and improved translation, the power is reliably and efficiently transferred.
Easy Installation
The package includes a mounting plate and a complete screw set for attaching the winch. The control box can be attached directly to the motor side of the winch, if necessary.
Operating Safety
Mistakes in operation can happen. Maximum operational safety is ensured by the automated SECURE-LOCK braking system, which secures heavy loads without human intervention. The control box includes a high-performance relay that protects against current spikes up to 215A.
Quality
For our ATV winch, we have the highest standards for quality and durability! Even at an affordable price, our customers receive a product with a high-quality matte black powder coating and waterproof sealing that reliably keeps water and other extreme weather conditions out. This guarantees unrestricted quality over many years of intense use.
Technical specifications of the ANTWINCH ATTA 3:
- Motor: 12V high-performance motor
- Pulling Force: 3,500 LBS / 1.6t in the 1st layer
- Efficient planetary gear
- Speed: Up to 7 m/min
- Rope: 15.2 meters long steel cable (diameter: 4.8mm)
- 1x Cable & 2x Remote Controls
- Control box with heavy-duty relay & battery cables
- High-quality matte black powder coating
- Includes mounting plate
- Waterproof
Applications:
Pulling speeds and power consumption:
| Layer |
Rated line pull (lbs / kg) |
rope capacity (ft / m) |
| 1 |
3500 / 1588 |
7.77 / 2.36 |
| 2 |
2991 / 1357 |
17.64 / 5.38 |
| 3 |
2610 / 1184 |
27.95 / 8.52 |
| 4 |
2330 / 1057 |
40.5 / 12.5 |
| Line pull (lbs/kg) |
Line Speed (fmp / mpm) |
Power Consumtion (A) 12V |
| 0 |
24.1 / 7.35 |
25 |
| 875 / 397 |
13.2 / 4.03 |
96 |
| 1750 / 794 |
11.5 / 3.5 |
138 |
| 2625 / 1190 |
8 / 2.43 |
176 |
| 3500 / 1588 |
6.2 / 1.9 |
215 |
IMPORTANT:
This is a pure pulling winch designed for hauling rolling loads on horizontal surfaces.
