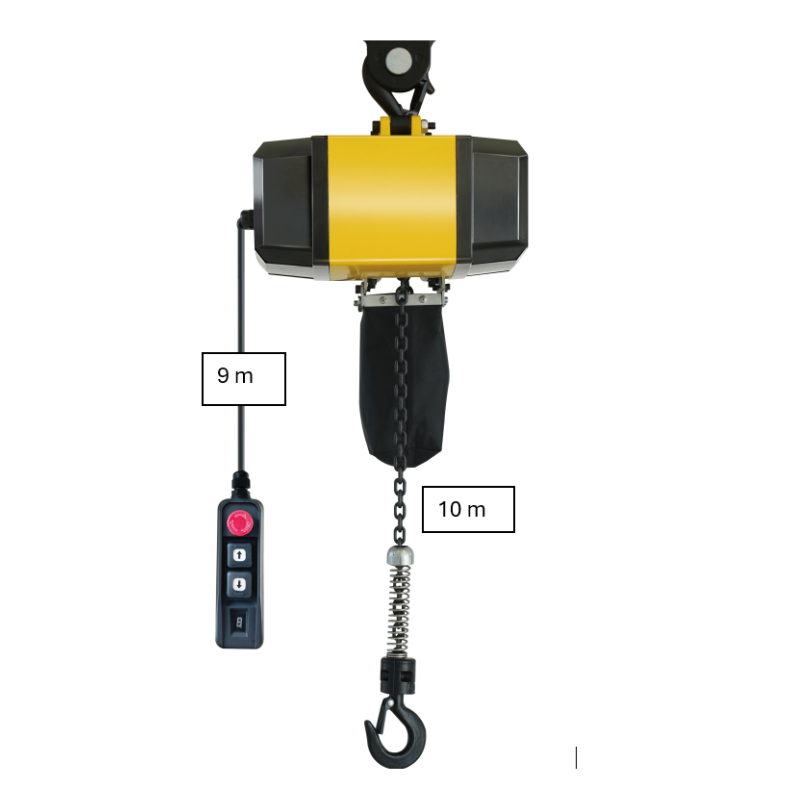

Brushless Electric Chain Hoist 230V with Wired Remote Control 200kg Load Capacity Silent
The TSH Electric Chain Hoist impresses with its compact design, high energy efficiency, and maximum safety. Thanks to its brushless motor, infinitely variable speed control, and robust aluminum housing, it is the ideal solution for precise, safe, and powerful lifting in industry, workshops, or on construction sites. The low weight and quiet operation also make it a popular tool for more specialized applications. Without the chain, the hoist weighs only 11 kg – making it very easy to mount at the place of use. The special chain system also allows for horizontal or angled pulling without problems with chain feeding. The 50% duty cycle enables high-frequency operation without long breaks.
Technical Data:
- Model: TSH-200
- Load capacity (kg): 200
- Lifting speed (m/min): 0–9
- Lifting height (m): 5
- Rated power (W): 450
- Voltage: AC220V
- Rated current (A): 3.5
- Insulation class: B
- Chain diameter (mm): 4.0
- Chain breaking strength: ≥ 900 N/mm²
- Duty Level: M5 (medium to heavy duty)
- Protection class: IP54
- Duty cycle: S3 50% – 10 min
- Operating temperature: 0–40 °C
- Net weight (kg): 13.4
Features:
✅ Powerful brushless motor – up to 30% more energy-efficient, compact design, yet extremely powerful.
✅ Infinitely variable speed control – precise lifting with smooth start, consistent stop, and free positioning.
✅ Lightweight aluminum housing – only approx. 10 kg net weight (without chain), handy, compact, and robust at the same time.
✅ Maximum safety – equipped with an emergency stop switch and overload protection for reliable and long-lasting operation.
✅ Precision sprocket – CNC-machined 6-groove sprocket prevents chain skipping and ensures smooth lifting movements.
✅ Contactless magnetic switch – operates at low voltage, making it even safer and more durable.
Applications:
-
Industry & Manufacturing – efficient handling of heavy components
-
Construction & Assembly – especially for lifting work in steel or reinforced concrete structures
-
Maintenance & Plant Engineering, e.g., in power plants or production facilities
-
Offshore, Shipbuilding & Heavy Loads – robust, reliable, and powerful
-
Event technology & mobile applications – flexible, compact, and easy to transport
